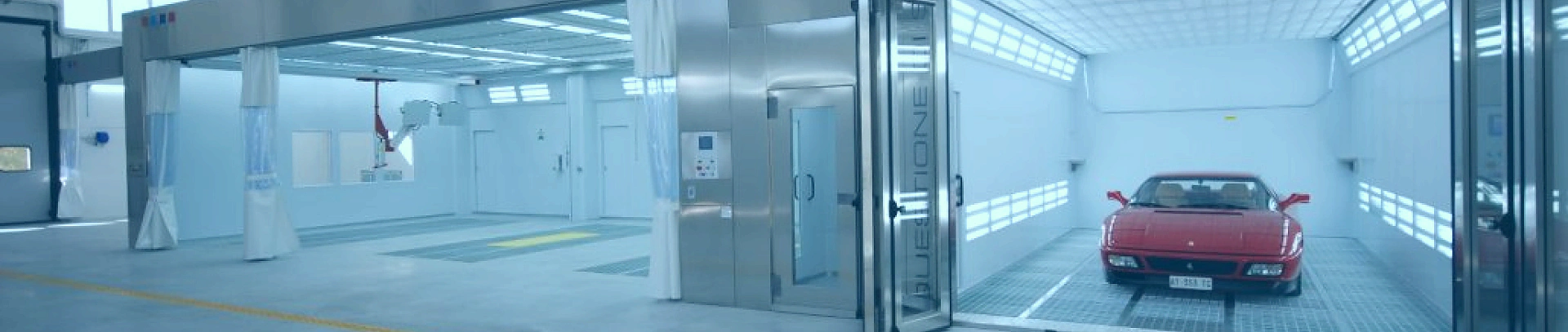

Standard Paint Mixing & Storage Room

Simple Fast and Easy to Install!

In the Standard Paint Mixing & Storage Room air flows in through filters in the ceiling (located in the ceiling toward one end of the mixing room) downward through the work area and into the exhaust filters located near the floor at the opposite end of the room. The exhaust air is drawn through the exhaust plenum and is discharged upward through the exhaust stack.

Lighting Features

Bright mixing room illumination is provided by four-tube, 48”, 32-watt, fluorescent light fixtures in the ceiling panels. Each is sealed behind clear, tempered safety glass. All fixtures are UL listed and approved for their intended use and placement. Bulbs are not Included.

Standard Paint Mixing & Storage Room Construction Features and Quality Standards

All paint mixing rooms are made with high quality 18-gauge steel. The personnel access door is pre-hung in a heavy duty galvanized steel frame for easy installation. Brixon door latches are provided for the personnel door opening. Also Included is one 14”x48” observation window in all paint mix room personnel doors.

Exhaust system is driven by a 12” diameter tube axial fan.

All hardware, filters and sealants needed for the booth installation are included. A control panel including motor starters and other electrical components can be purchased separately.

Models

PMR-0808:

  • Interior Dimensions: 8’W x 8’H x 8’L
  • Exterior Dimensions: 8’4”W x 8’2”H x 10’6” L
  • Access Door: 1
  • Add Powder Coating

PMR-1008:

  • Interior Dimensions: 8’W x 8’H x 10’L
  • Exterior Dimensions: 8’4”W x 8’2”H x 12’6” L
  • Access Door: 1
  • Add Powder Coating

PMR-0812:

  • Interior Dimensions: 8’W x 8’H x 12’L
  • Exterior Dimensions: 8’4”W x 8’2”H x 14’6” L
  • Access Door: 1
  • Add Powder Coating

PMR-0815:

  • Interior Dimensions: 8’W x 8’H x 15’L
  • Exterior Dimensions: 8’4”W x 8’2”H x 17’6” L
  • Access Door: 1
  • Add Powder Coating

PMR-1015:

  • Interior Dimensions: 10’W x 8’H x 15’L
  • Exterior Dimensions: 10’4”W x 8’2”H x 17’6” L
  • Access Door: 1
  • Add Powder Coating
Optional Exhaust Duct Package for a 15’ High Roof

There are many available options and other sizes just give us a call 1-800-637-4027
