Buying a weld fume collector starts with the work, not the cabinet
Shops usually start the conversation too late. Someone sees haze hanging over a welding area, the maintenance team wants cleaner air, and the first question becomes which dust collector to buy. That skips the part that decides whether the system will actually work: how the fume is created, where it can be captured, and what the building can support once that air is cleaned.
Welding fume is fine particulate. It behaves differently from the heavier debris you might collect around general cleanup. If the shop welds stainless or galvanized parts, the capture discussion gets more serious because the process can create fumes the safety team will want reviewed closely.
Paintbooth.com offers weld fume dust collection systems y más amplio industrial dust collectors for fabrication environments. Before you request pricing, define the shop conditions that matter most.
First, pin down the welding process
Two fabrication shops can both ask for a welding fume dust collector and need very different answers.
One may have three manual MIG stations running short production batches on galvanized brackets. Welders reposition often, parts arrive on carts, and the aisle has to stay open for traffic. Another may run a multi-cell structural fabrication area where several stations operate at once for long periods, with fixed fixtures and more predictable capture points. Those are not the same project.
Start the buying file with basic facts:
- What welding processes are running now
- Which base materials show up most often
- Whether stainless, galvanized, coated, or mixed-metal work is common
- How many stations can run at the same time
- Whether work stays in one cell or moves around the floor
- What nearby grinding, cutting, or prep tasks may share the same air problem
That last item deserves more attention than it usually gets. A weld area that sits next to grinding or plasma cutting may push the collector toward a broader application review. Shops that need help sorting that out can compare the welding page with Paintbooth.com’s cartridge dust collector options before a quote is built.
Scenario 1: manual welding on galvanized and stainless parts
Imagine a job shop with four manual stations making handrails, brackets, and support frames. Some weeks the material is mild steel. Other weeks the crew is welding stainless or galvanized components for a contractor deadline. The welders move around the part, the plume shifts with their position, and floor space already feels tight.
This buyer should not begin with “How many CFM do I need?” The better first question is how the shop wants to capture the fume at the source without getting in the welder’s way. If the hood, arm, or pickup location fights the work, it will get pushed aside.
For a shop like this, the planning list should cover:
- how close capture can realistically sit to the weld
- whether each station needs its own pickup point
- what happens when two or three stations run together
- whether the equipment footprint can stay out of traffic lanes
- who inside the company signs off on any recirculated air decision
Compact collector packages can make sense in smaller areas if the layout supports them. ACT’s smaller collector line is positioned for metalworking and weld smoke collection where footprint matters, but only after the capture arrangement makes sense on the floor.
Scenario 2: a multi-cell fabrication area choosing local units or one larger system
Now picture a different shop: six weld cells on one side of the building, repeat work on fixtures, and a plant manager trying to decide whether to place smaller collectors near the process or route several pickup points to one larger collector. The issue here is not just floor space. It is how many stations operate together, how long the duct runs become, and how the shop wants to handle maintenance.

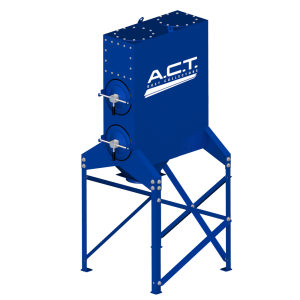

A larger central collector may fit better when multiple cells produce fume across the same shift and the building has a practical path for ductwork. ACT’s larger cartridge collector family is intended for multiple weld cells or process points, which lines up with this kind of application. But central collection also creates more planning work up front. The buyer needs to know where the unit can sit, how service access will work, and whether future cells are likely to be added.
If expansion is even a decent possibility, say it now. A system that barely fits today’s cell count can become the wrong purchase by next year if the project leaves no room for another branch line, another pickup point, or another service path around the collector.
Capture layout decides whether airflow is useful
Airflow numbers matter, but they are only part of the story. The collector has to pull fume from a real hood, arm, enclosure, or duct layout that fits the way the shop works. A high-capacity collector will still disappoint if the capture point sits too far from the plume or if the pickup arrangement changes every hour because the work does.
Walk the welding area before you ask for a proposal. Watch where the plume rises. Note whether welders work on benches, fixtures, or oversized assemblies. Look for cranes, doors, forklifts, and part carts that could interfere with source capture. A quote request with photos, rough dimensions, and a simple floor sketch usually gets better guidance than one built on a guessed air volume.
The goal is not to design the whole system alone. The goal is to give the supplier enough field truth to recommend a collector and capture approach that fit each other.
Filtration deserves its own buying questions
Weld fume is not forgiving to weak filtration. ACT’s weld fume line points to nanofiber cartridge media with a MERV 15 efficiency rating for fine welding particulate, smoke, and fumes. That gives the buyer a useful benchmark: ask what media is being used, what efficiency level is specified, and how the filter package matches the welding being done.
But filter rating alone is not the whole buying decision. Maintenance cost lives in the background of every collector quote.
Ask these questions early:
- How many cartridges does the unit hold
- Are the replacements standard sizes or custom pieces
- How are filters accessed for changeout
- What cleaning method is included
- What does the supplier expect the service burden to look like in this application
ACT also points to standard-size replacement filters, quick-release filter doors, and pulse cleaning. Those details matter because they affect labor, downtime, and replacement cost after installation. A lower purchase price does not help much if filter changes become awkward enough that the shop postpones them.
Downward airflow and dust release are worth discussing
Buyers do not need a lesson in internal collector geometry, but they should understand the features that affect day-to-day performance. In both ACT collector examples, dirty air enters at the top of the housing, dust collects on the outside of the cartridges, and a downward airflow pattern helps particulate fall into the hopper during operation and pulse cleaning.
That design point matters because cleaner dust release can reduce filter loading and maintenance headaches. ACT ties that airflow pattern to better filter life and easier cleaning than some side-entry or bottom-entry arrangements.
This is the kind of topic buyers often skip because it sounds too technical. It is worth the extra few minutes during quoting. Ask how the collector handles dust separation, what supports pulse cleaning, and what the maintenance team should expect once the unit is online.
Decide early whether cleaned air will be recirculated or exhausted
This decision changes more than duct routing. It can affect heating cost, building pressure, mechanical coordination, and internal approval.
ACT says cleaned air may be recirculated back into the workspace or exhausted outdoors, depending on the application and ventilation requirements. That does not mean every shop is free to choose either path without review. It means the buyer should settle the question with the right internal stakeholders before the project gets deep into pricing.
Recirculation may appeal to a plant trying to conserve heated air in cold weather. Exhaust may fit better when the facility wants a more conservative ventilation approach or the safety review points that way. Either option can carry building implications, so the choice should involve operations, maintenance, and EHS, not just purchasing.
If your team has not discussed this yet, put it near the top of the quote request instead of leaving it for the last round of questions.
Spark and fire review should stay in the front half of the project
Weld fume collection does not happen in a vacuum. Some shops also grind near the weld area, run nearby cutting operations, or move hot parts and debris through the same aisle. Those conditions need to be part of the intake because they can affect collector configuration and upstream protection choices.
Avoid treating spark and fire review as a detail to solve after the collector is selected. The risk profile changes when other hot or dusty processes feed the same system, when operators move hot work through the same area, or when the collector has to sit near traffic, storage, or tight service aisles. Put those details in the quote request so the equipment conversation starts with the real shop conditions.
Bad surprises usually come from omitted details, not from the collector spec sheet.
Maintenance access can make a good collector feel bad
A collector that looks fine on paper can become a daily nuisance if no one has room to service it. Before you approve a layout, check filter-door clearance, hopper access, forklift paths, and how replacement filters will reach the unit.
This shows up in both buyer scenarios. The smaller manual-weld shop may tuck equipment into a leftover corner and later discover there is no comfortable way to change filters. The multi-cell shop may choose a larger unit but create a service bottleneck because the collector sits too close to a wall, fence, or traffic lane.
What to bring to Paintbooth before asking for a quote
Bring photos of the welding area, a rough layout, station count, process notes, base materials, shift pattern, and any information about nearby grinding or cutting. Include ceiling height, possible collector location, and whether the team prefers to review recirculation, outdoor exhaust, or both. If the shop expects to add cells later, say that up front.
If your fabrication team is sorting through weld fume collection for manual stations, multi-cell production, or a broader metalworking area, contact Paintbooth for application guidance and a quote review built around your floor layout, process details, and maintenance needs.
