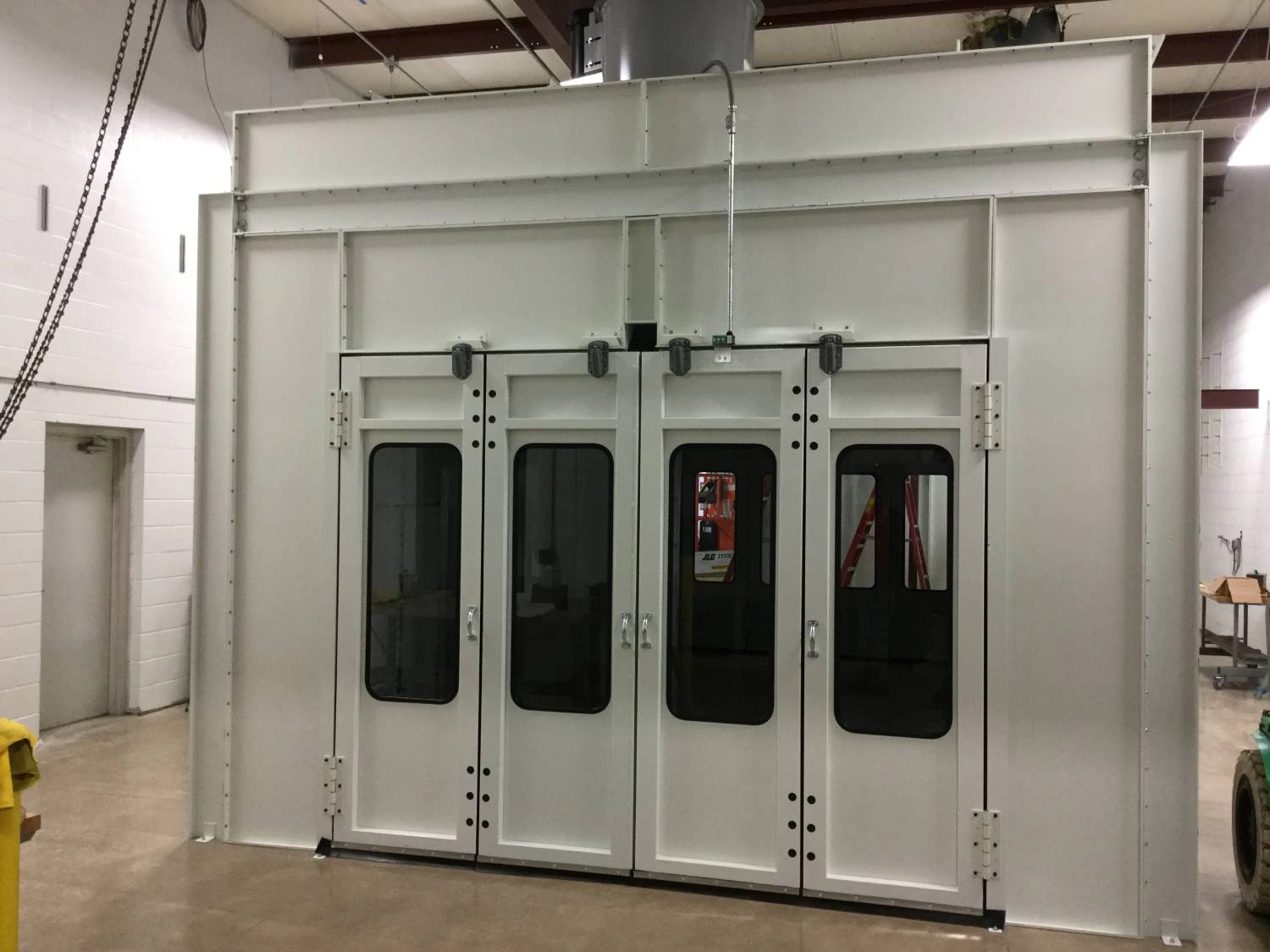

Enclosed Industrial Booths
Custom Industrial Booths—Built to Your Exact Specifications
Our custom industrial paint booths are engineered and manufactured to meet the specific requirements of your facility, application, and production process. We can design and build booths in virtually any size or configuration, including Crossdraft, Modified Downdraft, Side Downdraft, and Full Downdraft systems with pit integration.
Size & Configuration: Systems are available as both standard prefabricated Industrial Paint Booths and fully Custom Industrial Paint Booths, with a wide range of sizes, airflow configurations, heating options, and equipment packages to meet specific production requirements.
Industry Applications: Our industrial paint booth systems are designed for a wide range of finishing applications, including:
- Trucks & Large Equipment
- RVs & Motorhomes
- Marine Applications

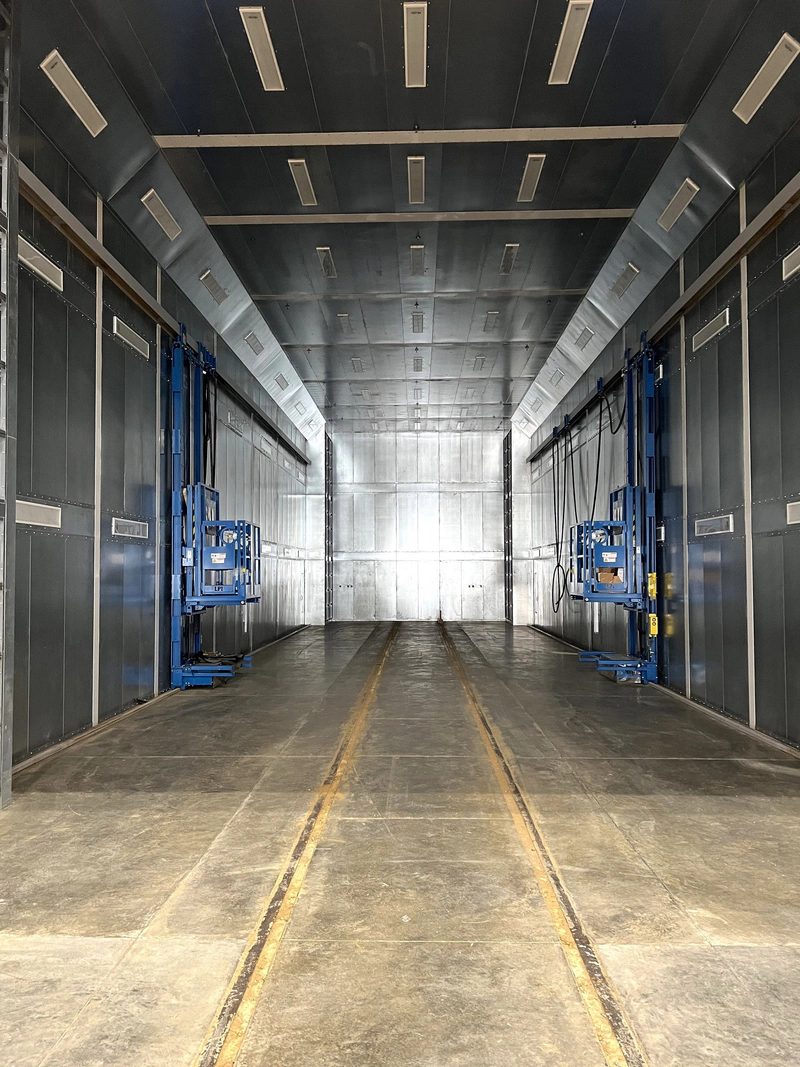

- Rail Cars & Locomotives
- Heavy Equipment
- Agricultural Equipment
- Wood Finishing
- General Manufacturing
- Data Center Housings & Enclosures

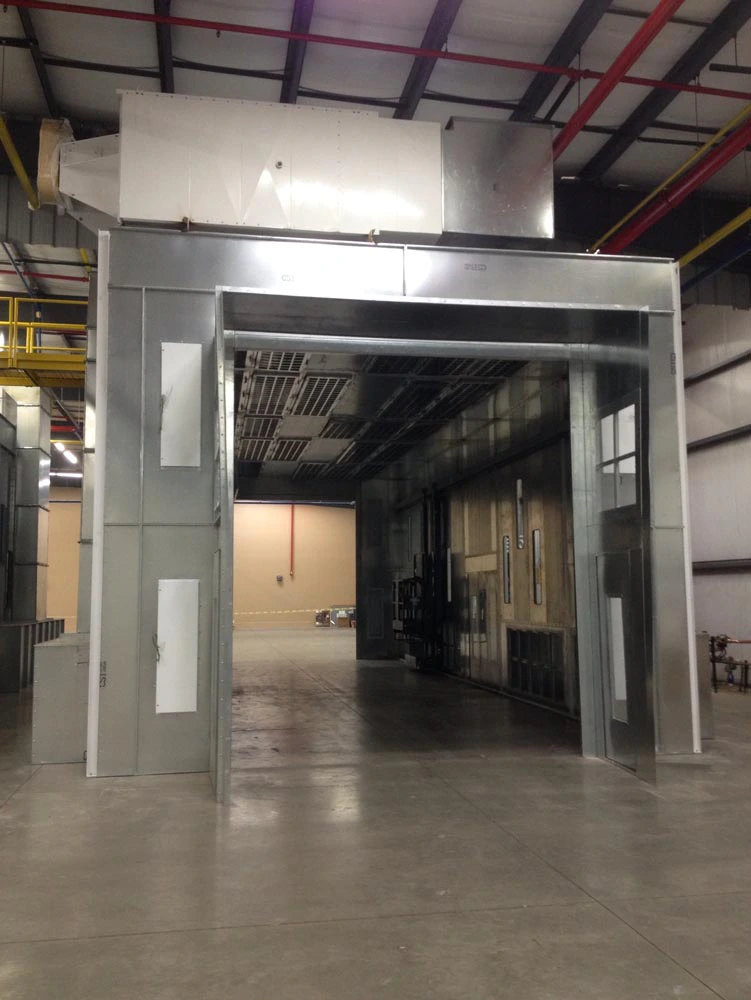

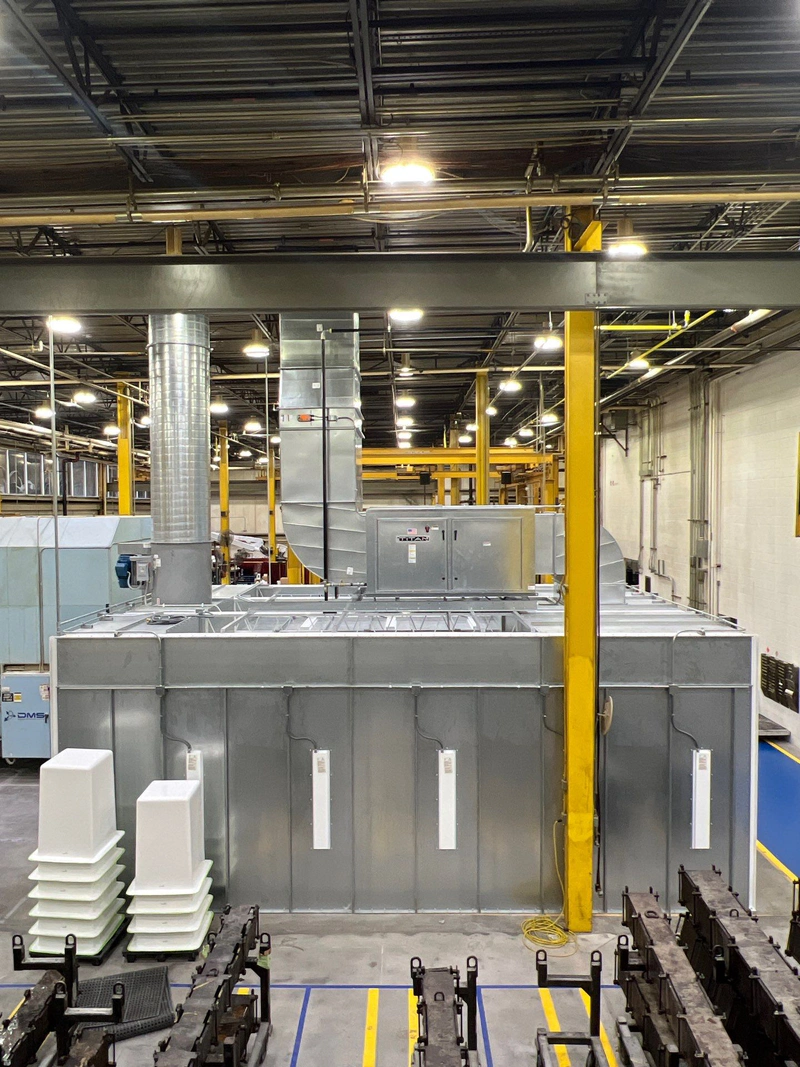

Systems are available in heated or non-heated configurations and can be equipped with an Air Make-Up Unit (AMU) to provide properly balanced airflow, temperature control, and consistent booth performance.
Engineering Expertise—In House and Built Around Your Needs
Here at Paintbooth.com, we have one of the most experienced in-house engineering teams in the finishing industry. Our team works directly with you to design and engineer equipment around your facility, production requirements, workflow, and long-term goals.
From individual paint booths to complete finishing systems, we provide the system design, equipment engineering, facility layout, and technical expertise needed to develop a solution that performs for your operation.
Your facility is unique. Your finishing system should be too.
With 30 years of finishing industry experience, we understand what it takes to keep complex industrial projects on schedule and moving forward.
From initial planning and engineering through fabrication and installation, every phase of your project is managed by our team. Keeping these critical capabilities in-house gives us greater control over quality, scheduling, coordination, and final execution.
No subcontractors. No handoffs between multiple companies. One accountable team from start to finish.
Construction Features & Quality Standards

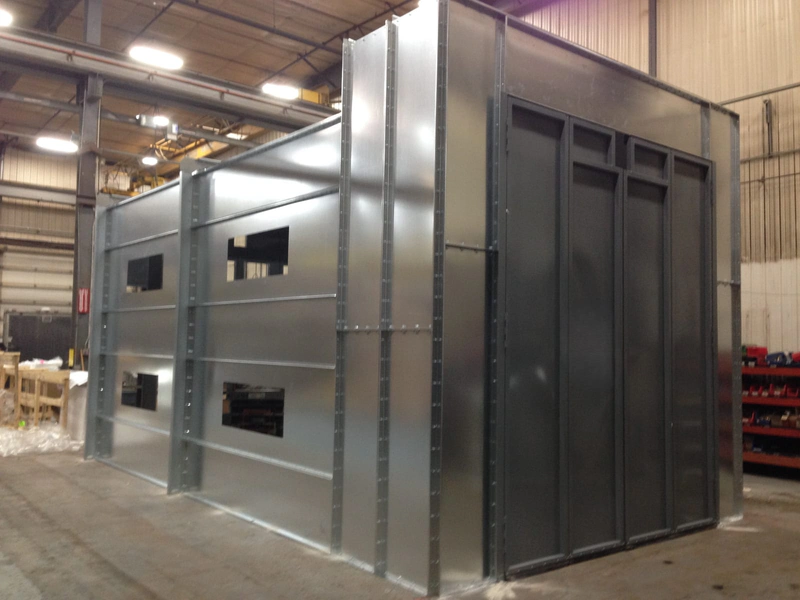

Our industrial booths are constructed from 18-gauge, prime-quality galvanized steel and engineered with properly designed structural support systems for long-term strength, durability, and stability.
Booth panels and structural components are precision-punched for accurate alignment and straightforward nut-and-bolt assembly, helping simplify field installation while maintaining a clean, professional finished appearance.
Personnel Doors
Personnel doors are field-mounted using adjustable slotted hinges, allowing adjustment in two planes to compensate for uneven floors and ensure proper alignment.
Our standard 36-inch-wide personnel door features a durable square-tube frame with 18-gauge galvanized steel skins and an integrated observation window for visibility into the booth.

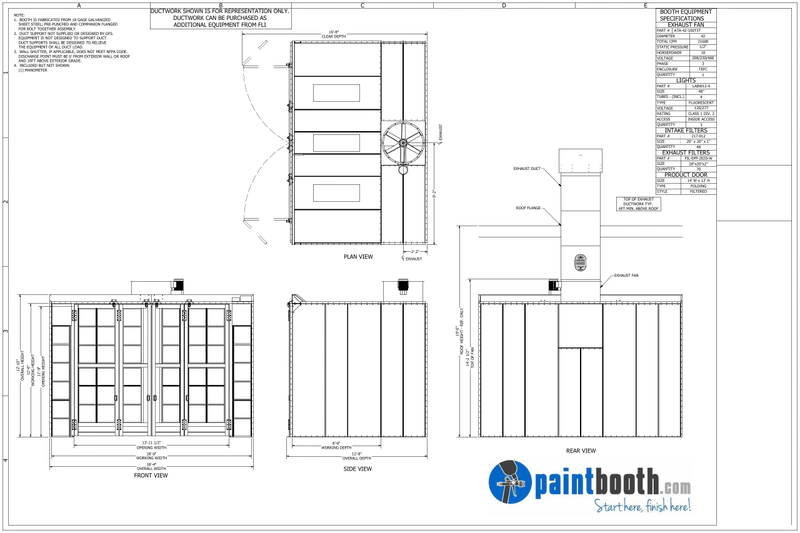

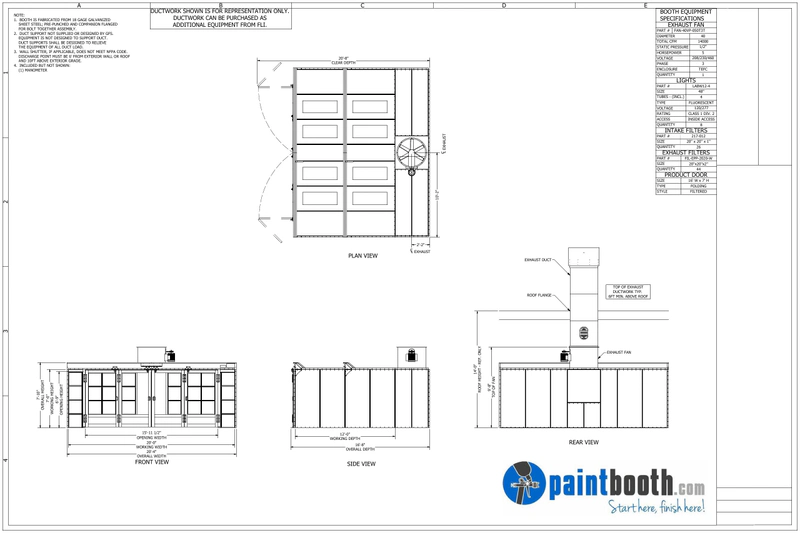

Standard Models Available
We offer a variety of standard enclosed industrial paint booth models designed for quick delivery and installation.
Have questions about sizing, airflow, filtration, or configuration? Call 833-552-6684 and our team can help you select the right enclosed industrial paint booth for your application.
Select Your Industrial Paint Booth:
Air Flow Types
Crossdraft: Emphasizes simplicity, cost-effectiveness, consistent airflow, and contamination control:
- Cost-effective design: A straightforward configuration that provides effective airflow and filtration without the complexity of a downdraft system.
- Airflow direction: Clean air enters through an intake plenum or filtered doors at the front of the booth and moves horizontally through the working area before being exhausted through a rear plenum.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively uniform airflow throughout the booth, supporting a consistent, high-quality paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping maintain a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, reducing the possibility of contaminated shop air entering the booth.

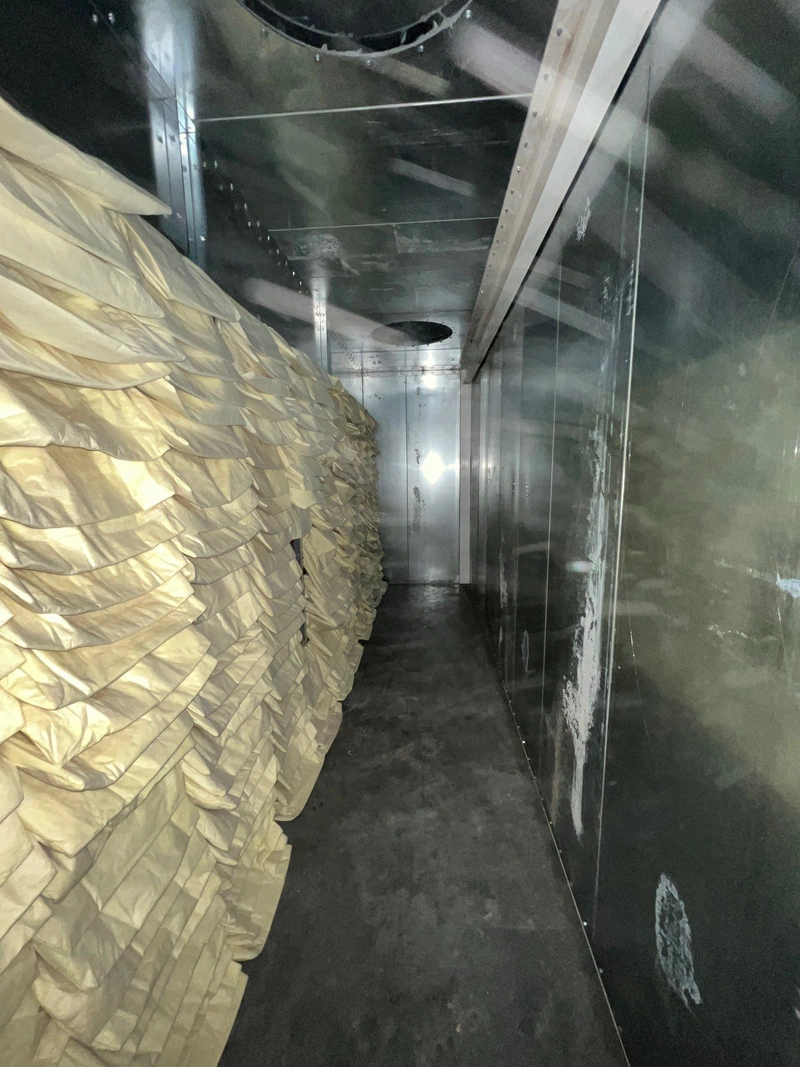

- Filtration capacity: The system is designed with a maximized number of intake and exhaust filters to promote effective particulate filtration.
- Primary benefit: Provides a simple, economical, and controlled painting environment with consistent horizontal airflow and effective contaminant management.
Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.
Side Downdraft: Provides many of the airflow benefits of a traditional downdraft booth without requiring a floor pit:
- Economical installation: Designed for shops that cannot or do not want to install a below-floor exhaust pit, reducing installation cost and complexity.
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the working area.
- Side exhaust: Instead of exhausting through a floor pit, contaminated air is drawn into filter chambers along both side walls that extend the length of the booth.
- Consistent air velocity: The intake and side-exhaust filter arrangement is designed to provide even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping create a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, minimizing the introduction of potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides downdraft-style vertical airflow and contamination control without the expense and construction requirements of a floor pit, making it a practical option for many existing shops.
Pit Downdraft: Emphasizing airflow consistency, contamination control, and finish quality:
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the booth toward a filtered exhaust pit in the floor.
- Overspray and contamination control: Downdraft airflow helps capture overspray and airborne contaminants, reducing the risk of particles settling on the painted surface.
- Consistent air velocity: The intake and exhaust filter arrangement is engineered to provide relatively uniform airflow throughout the work area, which is important for achieving a consistent paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, creating a cleaner painting environment.
- Pressurized booth: Air can be supplied directly from an air makeup unit (AMU) or intake fan into the intake plenum, minimizing the introduction of contaminated shop air.
- Maximized filtration: The booth uses a high quantity of intake and exhaust filters to improve particulate filtration and maintain efficient airflow.
- Primary benefit: The overall system is designed to provide a cleaner, more controlled painting environment and a higher-quality finish while effectively managing overspray.
