Powder Coating Booths
Powder Coating Booths & Equipment
From Batch Powder Booths to Complete Powder Coating Systems
At Paintbooth.com, we don't believe in simply selling you a powder booth. We help determine the right powder coating equipment for your products, production requirements, facility, and future growth plans.
Our Powder Coating Booths are available in several configurations, including Cartridge Batch Powder Booths, Spray-to-Waste Powder Booths, and Pass-Through Powder Coating Booths for conveyorized production.
Whether you're starting a new powder coating operation, expanding an existing system, or developing a complete automated finishing line, our team can help you evaluate the entire process.
Powder Coating Booth Options

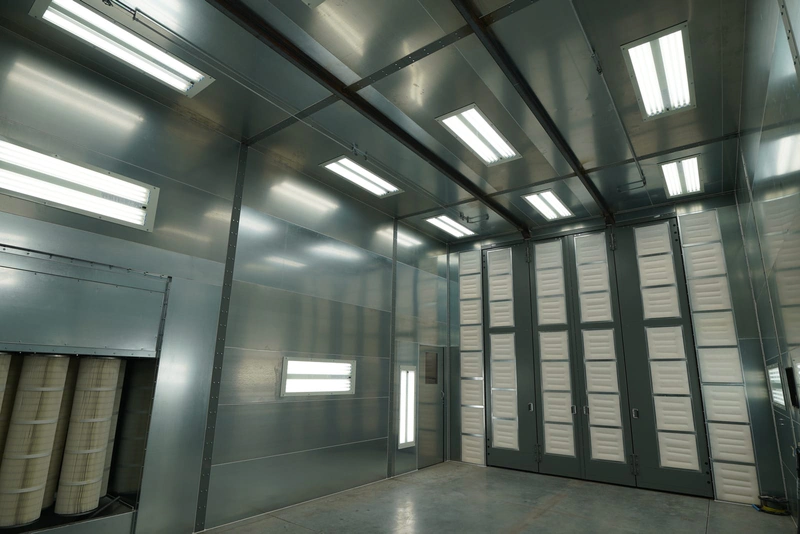

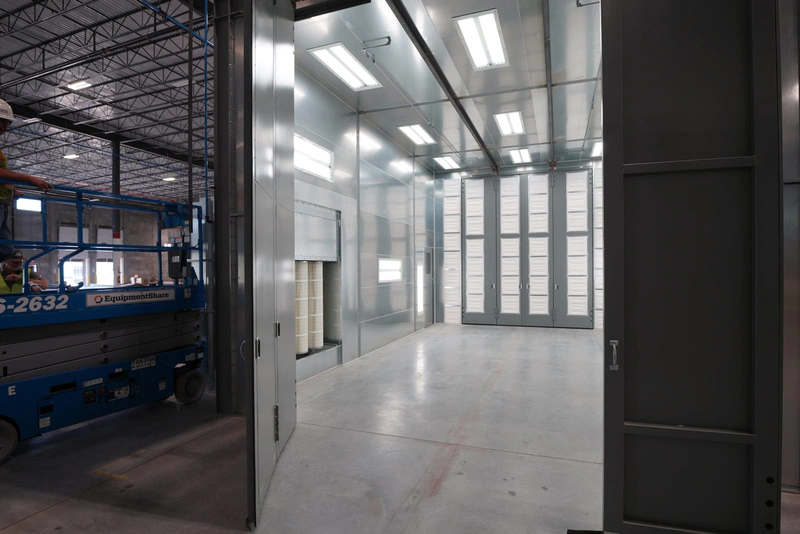

Cartridge Batch Powder Booths
Cartridge Batch Powder Booths use cartridge-style filtration to capture powder overspray and provide an efficient solution for a wide variety of batch finishing applications.
Depending on the system and application, configurations can be designed for powder recovery and reclaim or other production requirements.
These booths are an excellent option for manufacturers coating a variety of parts in a batch-production environment.
Spray-to-Waste Powder Booths
Spray-to-Waste Powder Booths are designed for applications where recovering and reusing oversprayed powder isn't necessary or practical.
This configuration can be especially useful for operations with frequent color changes, lower production volumes, specialty colors, or applications where simplified powder management is preferred.

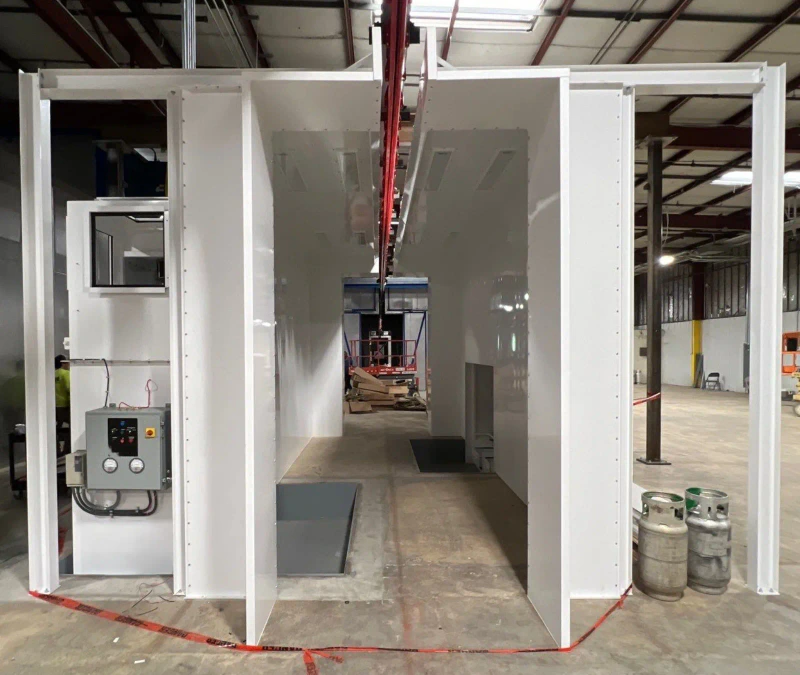

Pass-Through Powder Coating Booths
Pass-Through Powder Booths are designed for continuous and conveyorized production systems.
Parts travel through the booth as part of an integrated finishing line, allowing the powder application process to work together with pretreatment, drying, curing, cooling, and material handling.
Pass-through systems can be engineered around the part dimensions, conveyor configuration, line speed, production rate, powder application equipment, and required finish.
Powder Reclaim or Spray-to-Waste?
One of the important decisions when selecting a powder booth is whether you need to recover oversprayed powder.
The right solution depends on factors such as:
- Production volume
- Powder usage
- Number of colors
- Frequency of color changes
- Part configuration
- Transfer efficiency
- Powder cost
- Cleaning requirements
- Desired production flexibility
Reclaim isn't automatically the right answer for every operation.
Our team can help evaluate your process and determine which approach makes the most sense for your production requirements.
Customize the Booth Around Your Process
Our powder booth systems can be customized to accommodate your specific products and production process.
Available configurations and options can include:
- Custom booth dimensions
- Product doors
- Conveyor openings and slots
- Pass-through configurations
- Cartridge filtration
- Powder recovery and reclaim systems
- Spray-to-waste configurations
- Manual or automatic powder application
- High-efficiency and HEPA filtration options where required
- Custom controls
- Material-handling integration
- Conveyor integration
The goal is to design the booth around how your operation actually coats parts rather than forcing your process to fit a standard piece of equipment.
More Than a Powder Booth
A quality powder finish begins long before the powder is sprayed and continues until the part has completed the curing process.
A complete powder coating operation may include:
Pretreatment → Dry-Off → Powder Application → Cure → Cooling → Unload
Paintbooth.com can help integrate the equipment required for each stage of that process.
Pretreatment Washers
Proper surface preparation is critical to powder adhesion, corrosion resistance, finish quality, and long-term coating performance.
Systems can range from manual or simple cleaning processes to multi-stage automated pretreatment washers designed around the substrate, contaminants, chemical process, production rate, and corrosion-resistance requirements.
Dry-Off Ovens
After aqueous pretreatment, parts must be sufficiently dry before powder application.
A properly designed Dry-Off Oven helps remove remaining moisture and prepare the product for the coating process.
Powder Cure Ovens
Once powder is applied, the coating must be properly cured according to the powder manufacturer's requirements.
Paintbooth.com offers Batch Powder Coating Ovens and Continuous Process Ovens in a wide range of sizes and configurations.
Oven selection should consider more than simply the desired air temperature. Factors such as part size, part mass, substrate, coating specifications, required part-metal temperature, dwell time, production rate, conveyor speed, and loading pattern can all influence the proper oven design.
Conveyors & Material Handling
For continuous production, the conveyor ties the entire finishing process together.
Conveyor speed and system layout affect washer dwell time, dry-off, powder application, oven cure time, cooling, and overall production capacity.
That's why conveyor design should be considered as part of the complete finishing system—not after the other equipment has already been selected.
Batch or Continuous Process?
Not every powder coating operation needs a fully automated line.
For lower production volumes, large products, frequent color changes, or flexible manufacturing, a batch powder coating system may be the right solution.
For higher production volumes and repeatable products, a continuous conveyorized powder coating system may provide significant advantages in throughput, labor utilization, consistency, and material handling.
The right question isn't:
“Which system is better?”
It's:
“Which system is better for your production requirements?”
Complete Powder Coating Systems
Paintbooth.com can help develop a complete powder coating system incorporating:
- Pretreatment Washers
- Dry-Off Ovens
- Powder Coating Booths
- Powder Application Equipment
- Powder Recovery Systems
- Batch Cure Ovens
- Continuous Process Ovens
- Conveyors
- Material Handling
- Controls and Automation
- Dust Collection
- Equipment Integration
Our team can evaluate the entire process—from the condition of the part entering the system to the finished product leaving it.
In-House Engineering, Project Management & Installation
The equipment is only one part of a successful powder coating operation.
Paintbooth.com can provide in-house CAD and engineering, system layout, Project Management, PE services, permitting support, mechanical installation, electrical installation, equipment integration, and startup assistance.
That gives you one experienced team capable of helping take the project from initial concept through installation and startup.
Choosing the Right Powder Coating Equipment
Before specifying equipment, we recommend evaluating:
- What are you coating?
- What is the largest part?
- What material is the part made from?
- What surface preparation is required?
- How many parts need to be coated per hour or shift?
- How many colors will you spray?
- How frequently will colors change?
- Do you want to reclaim powder?
- What powder coating specifications must be achieved?
- What cure temperature and time are required?
- Is the process batch or continuous?
- What floor space is available?
- What utilities are available?
- What are your future production goals?
The answers help determine whether you need a simple powder booth—or an entirely different approach to your finishing operation.
Let's Design the Right Powder Coating System
Whether you need a standalone Powder Coating Booth, Batch Powder System, Pass-Through Booth, Powder Cure Oven, Pretreatment Washer, or complete automated Powder Coating Line, our team can help.
Don't just buy powder coating equipment. Build a finishing process designed around your production goals.
Paintbooth.com — From Pretreatment Through Cure.
