When diving into the realm of large equipment booths, it’s essential to understand their significance, design intricacies, and the benefits they offer. At Paint Booth, we pride ourselves on our deep knowledge and extensive experience in this sector. Here, we’ll explore the various facets of large equipment booths, shedding light on our expertise, the features of our booths, and the customization options we provide.

    Request a Free Quote

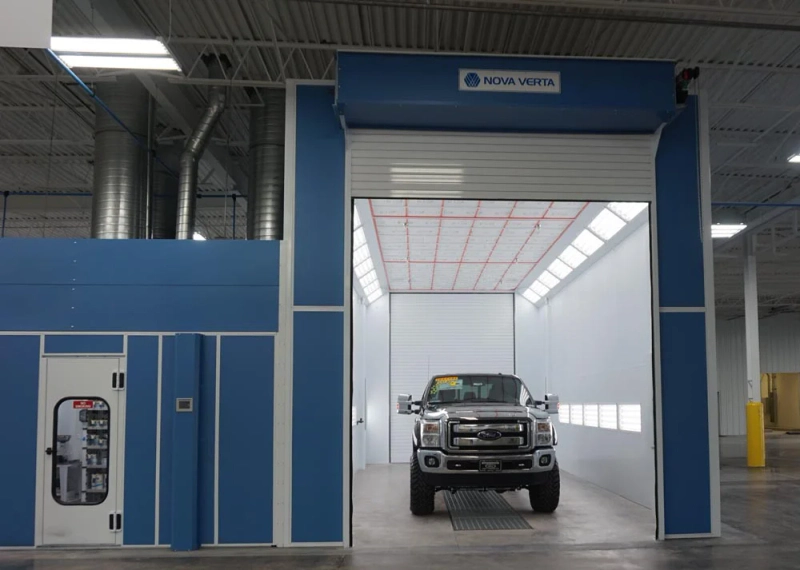

    Truck Paint Booths

    The following features are standard on our large equipment booths:


    All Booths are shipped complete with everything you need to assemble and start using them, including wall panels, fan, motor, doors, intake and exhaust filters with retainer grids, light fixtures and tubes, controls, assembly hardware and an installation drawings-permit package.

    Our large equipment booths are constructed and rigidly reinforced with single-skin, 18-gauge, G-90 galvanized steel. Single-skin booths are pre-punched booth panels with easy nut-and-bolt assembly that take the guesswork out of installing a large paint booth while providing superior structural integrity.

    Double insulated wall panels are an option. They are constructed of two layers of 20-gauge steel. And utilize an H-channel type structure in between the panels or a tongue-groove system. This helps create an airtight seal in the cabin construction without exposed lips or panel ledges that tend to accumulate dirt and dust.

    Understanding Large Equipment Booths


    Our Expertise in Large Equipment Booths

    Why We Focus on Large Equipment Booths

    Large equipment booths cater to a niche yet crucial segment of the industry, addressing the needs of machinery and oversized items. Their significance cannot be understated. They play a pivotal role in ensuring quality paint jobs while accommodating the size and complexity of large equipment. At Paint Booth, we recognized the burgeoning demand for specialized booths early on, positioning ourselves at the forefront of this industry segment.

    Our Journey and Evolution

    Embarking on our journey several years ago, we have continually adapted to the ever-evolving industry standards and client needs. Our commitment to innovation and excellence has allowed us to refine our offerings, ensuring they remain cutting-edge and cater to a wide array of requirements.


    General Features of Our Large Equipment Booths

    Size & Dimension Flexibility

    One of the standout features of our booths is their adaptability in terms of size and dimension. We understand that large equipment varies greatly in dimensions, and our booths are designed to cater to this diversity. From construction machinery to industrial apparatuses, our booths are flexible enough to accommodate a broad spectrum of equipment sizes.

    Advanced Airflow Systems

    Airflow plays a critical role in the painting process. It ensures even paint application and minimizes the risks associated with toxic fumes. We’ve meticulously designed our booths to optimize airflow, ensuring both safety and precision during the painting process.

    Safety Protocols in Place

    Safety is paramount. Our booths are equipped with state-of-the-art safety features, ensuring that the painting process is not just efficient but also safe. From fire suppression systems to ventilation enhancements, we prioritize the well-being of the operators and the integrity of the equipment being painted.


    Customization Options

    Tailored Solutions We Offer

    Every client is unique, and so are their requirements. We provide bespoke solutions tailored to the specific needs of our clients. Whether it’s a unique size requirement or a specific design preference, we’re equipped to deliver.

    Material & Design Customizations

    Beyond size, we understand the importance of material and design in the overall functionality and aesthetics of the booth. Whether you prefer a certain material for durability or a specific design for better ergonomics, we are here to adjust and deliver.

    Integration with Existing Systems

    Many of our clients already possess a foundational painting setup. Our booths are designed to seamlessly integrate with existing systems, ensuring a smooth transition and minimizing disruptions.


    Diving Deeper into Equipment Booths

    As you explore the world of large equipment booths, you’ll find that they are more than just large enclosures for painting. Their design intricacies, safety features, and customization possibilities make them an indispensable asset for industries dealing with large equipment. At Paint Booth, we remain committed to offering you the best, ensuring that your painting processes are efficient, safe, and tailored to your specific needs.

    Common Applications of Large Equipment Booths

    Large equipment booths play a pivotal role in various industries, providing a controlled environment for painting and finishing large-scale items. Their design ensures precision, quality, and safety during the painting process. Here’s a closer look at some common items and machinery that often require the specialized environment of a large equipment booth:


    Construction Machinery

    These are some of the most substantial pieces of equipment in any industry. From excavators, bulldozers, and cranes to loaders and dump trucks, all these machines eventually need a fresh coat of paint or a touch-up. Given their size and complexity, a large equipment booth is indispensable for ensuring a uniform and high-quality paint job.


    Agricultural Equipment

    Farm machinery, such as tractors, harvesters, and plows, are constantly exposed to harsh environmental conditions. Over time, their paint can wear off, leading to the need for repainting. Large equipment booths ensure these sizable machines are painted efficiently, with a finish that can withstand the rigors of farm work.


    Aerospace Components

    While an entire aircraft might be painted in a specialized hangar, larger components, such as wings, fuselages, or tail sections, are often painted separately in large equipment booths. These booths ensure a dust-free environment, crucial for the aerospace industry’s high standards.


    Railway Locomotives and Carriages

    Trains, given their size and length, require spacious booths for both new paint jobs and refurbishments. Whether it’s a freight train carriage or a passenger locomotive, large equipment booths provide the necessary space and environment for a meticulous paint application.


    Industrial Machinery

    From large turbines and generators to heavy-duty drills and presses, industrial machinery often requires specialized paint coatings for protection and identification purposes. Given their size and the precision required, painting these machines outside a controlled environment isn’t feasible.


    Marine Vessels

    Parts of ships, submarines, or large yachts might be painted or touched up in large equipment booths. Especially for components that are brought ashore for maintenance or repair, these booths offer the ideal painting environment before the parts are reassembled.


    Recreational Vehicles (RVs)

    Given their size, RVs and motorhomes often can’t be painted in standard automotive booths. Large equipment booths provide the necessary space to handle such vehicles, ensuring a quality finish that can endure long road trips and varying weather conditions.


    In essence, any large piece of equipment or machinery that requires a controlled environment for painting, be it for aesthetic, protective, or branding purposes, can benefit from a large equipment booth. These booths ensure that regardless of the item’s size or complexity, the paint is applied uniformly, efficiently, and safely.

    Benefits of Using Our Booths

    At Paint Booth, our commitment to excellence extends beyond the mere design and manufacture of large equipment booths. We strive to ensure that every aspect of our service and products adds value to your operations. Here’s a closer look at the tangible benefits our booths offer:


    Precision in Painting

    With our booths, accuracy isn’t a mere afterthought; it’s a foundational principle. Our designs ensure that every nook and cranny of your equipment receives a consistent coat, resulting in:

    • Uniform paint application, reducing rework and touch-ups.
    • Enhanced visual appeal thanks to the even spread of paint.
    • Reduced paint wastage due to targeted application techniques.


    Durability & Longevity

    We understand that for many businesses, a paint booth is a significant investment. Thus, we ensure:

    • Robust construction that withstands daily wear and tear.
    • Paint finishes that last longer, reducing the frequency of repaints.
    • An extended booth lifespan, ensuring you get the best return on your investment.


    Cost and Time Efficiency

    In a competitive business landscape, efficiency can be the difference between success and stagnation. Our booths:

    • Minimize paint wastage, translating to direct cost savings.
    • Reduce the time taken for each paint job, thanks to optimized designs.
    • Offer faster drying and curing times, further speeding up the painting process.


    Maintenance & After-sales Support

    Our relationship with you doesn’t end once you purchase a booth. We’re committed to ensuring its longevity and optimal performance.


    Our Commitment to Booth Longevity

    Regular maintenance is pivotal for any equipment, and paint booths are no exception. We:

    • Provide periodic maintenance checks.
    • Offer advice on daily and weekly maintenance practices.
    • Supply genuine replacement parts to ensure the booth’s longevity.


    Available Support Packages

    Understanding that every client’s needs are unique, we offer:

    • Various post-purchase support packages tailored to different requirements.
    • Quick response times for any queries or issues.
    • Remote and on-site support based on the nature of the problem.


    User Training & Guidelines

    A well-trained user can significantly enhance the booth’s efficiency and lifespan. Thus, we:

    • Offer comprehensive training sessions for users.
    • Provide detailed manuals and guidelines.
    • Conduct periodic refresher courses to keep users updated on best practices.


    Getting Started with Our Large Equipment Booths

    If you’re considering enhancing your painting operations, here’s how you can embark on this transformative journey with us.


    Consultation Process

    Starting with us is as simple as:

    • Reaching out to our dedicated consultation team.
    • Discussing your specific requirements and challenges.
    • Receiving personalized solutions tailored to your needs.


    Pricing & Financing Options

    We believe in transparency and value for money. With us, you can expect:

    • Clear and competitive pricing structures.
    • Customized financing options to ease the investment process.
    • No hidden charges or last-minute surprises.


    Installation & Setup

    Once you’ve made the decision, the next steps are seamless:

    • Our team will handle the installation process, ensuring minimal disruption to your operations.
    • We’ll test the booth to guarantee optimal performance.
    • A final walkthrough will be conducted to ensure you’re familiar with all the booth’s features.


    Taking Your Painting Operations to the Next Level

    With Paint Booth by your side, you’re not just investing in a piece of equipment; you’re investing in quality, efficiency, and a partner committed to your success. Dive deeper into the world of professional painting and discover how we can elevate your operations.

    Airflow Diagrams

    click image to enlarge diagrams

    Down Draft Diagram
    Cross Draft Diagram
    Side Down Draft Diagram
    Down Draft Diagram

    Below is a list of some of the options that can be added to any large equipment paint booths:


    • Powder coating

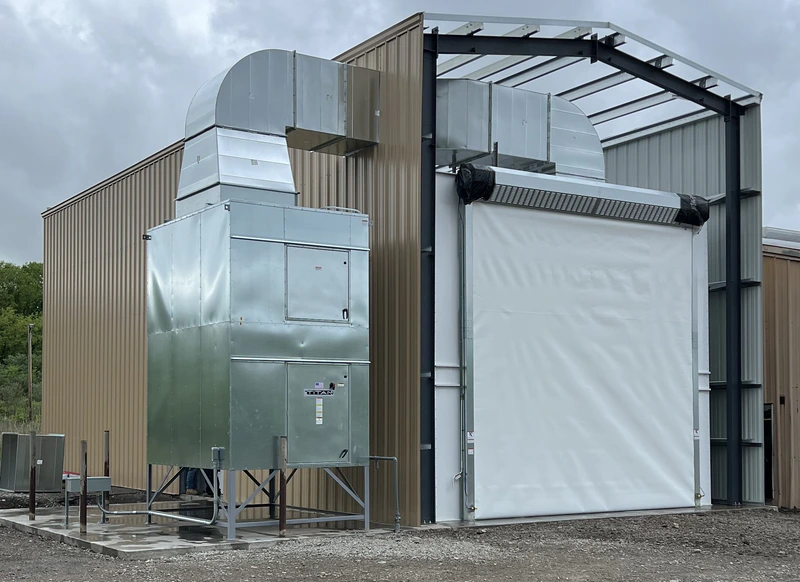

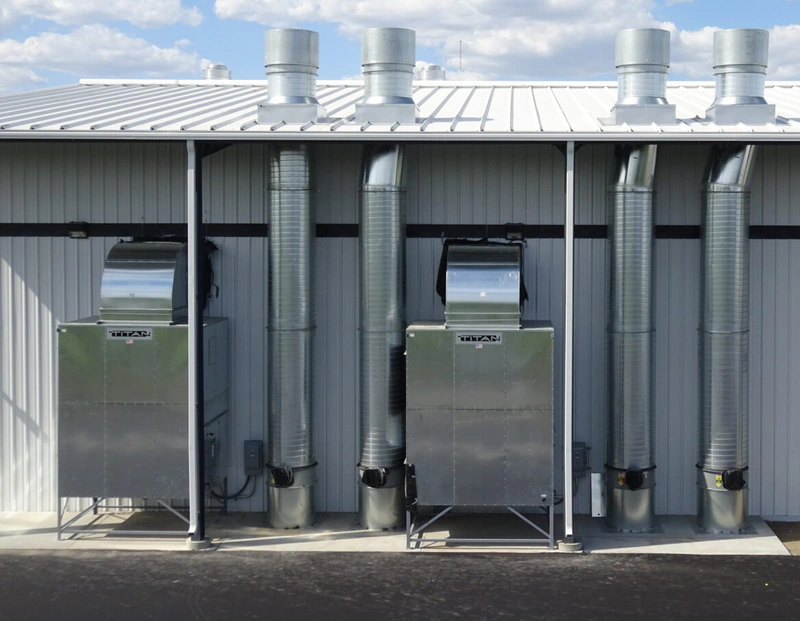

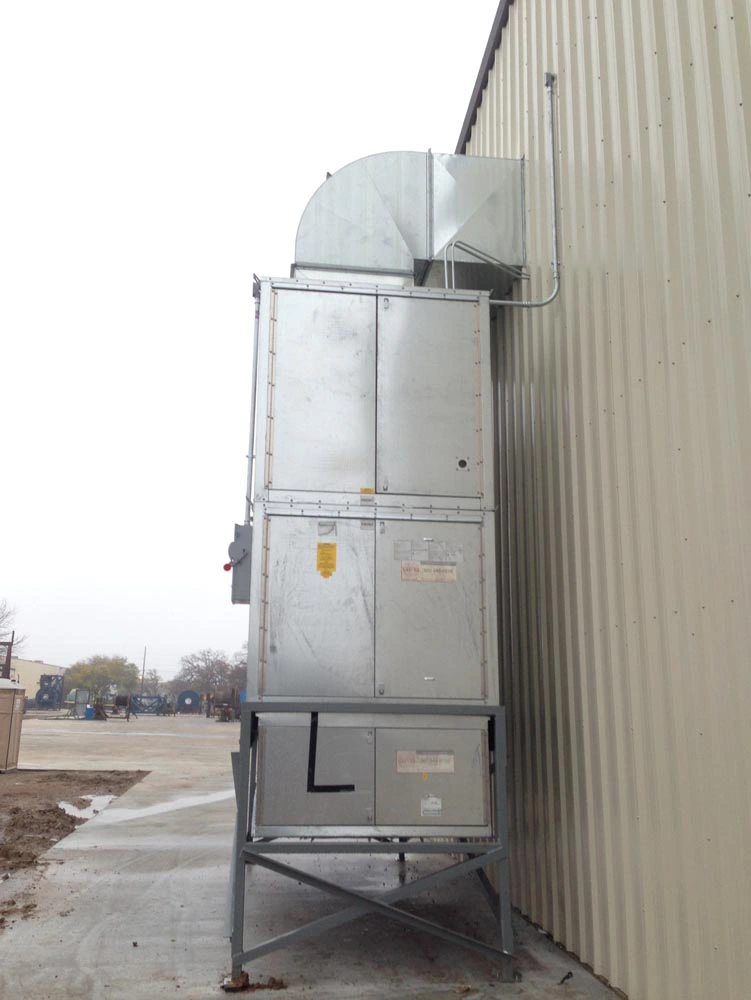

    • Heated air make up with cure package
    • Lighting: 6-tube, T-8 fixtures, T-5 high-output fixtures, Corner lights, Rear access light fixtures
    • Custom height, width and depth design

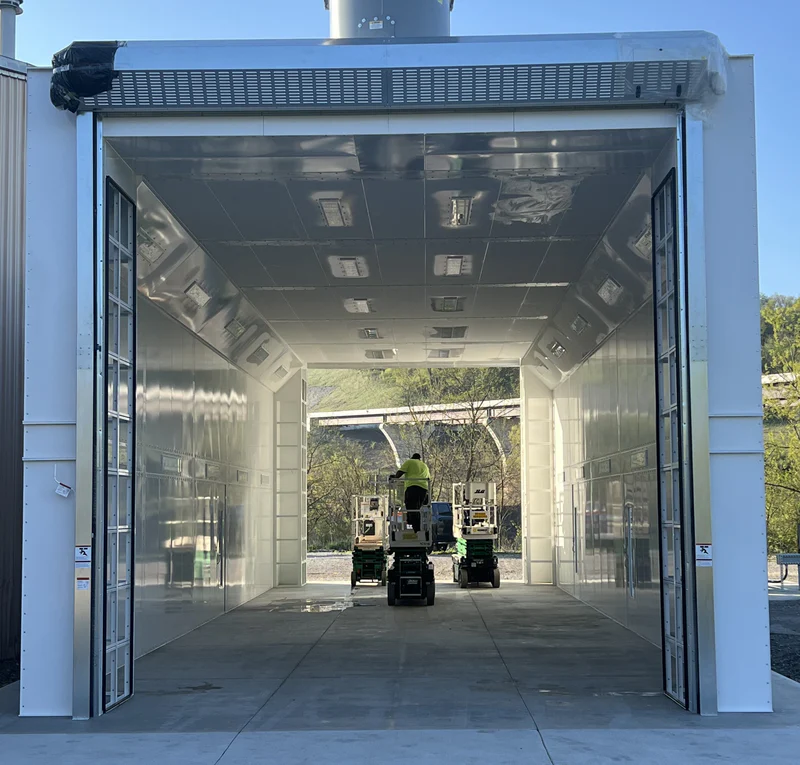

    • LPI Personnel lifts and other custom options

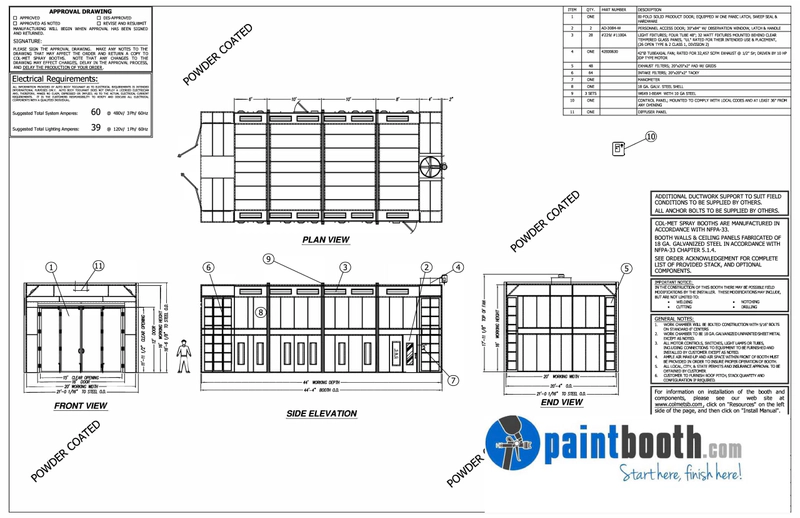

    Example Large Equipment Paint Booth Drawings

    click image to enlarge drawings

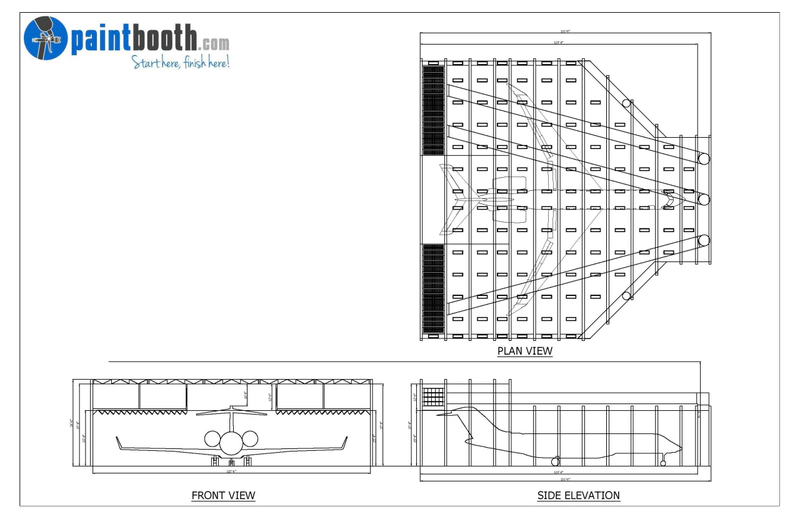

    Air Craft Large Equipment Booth

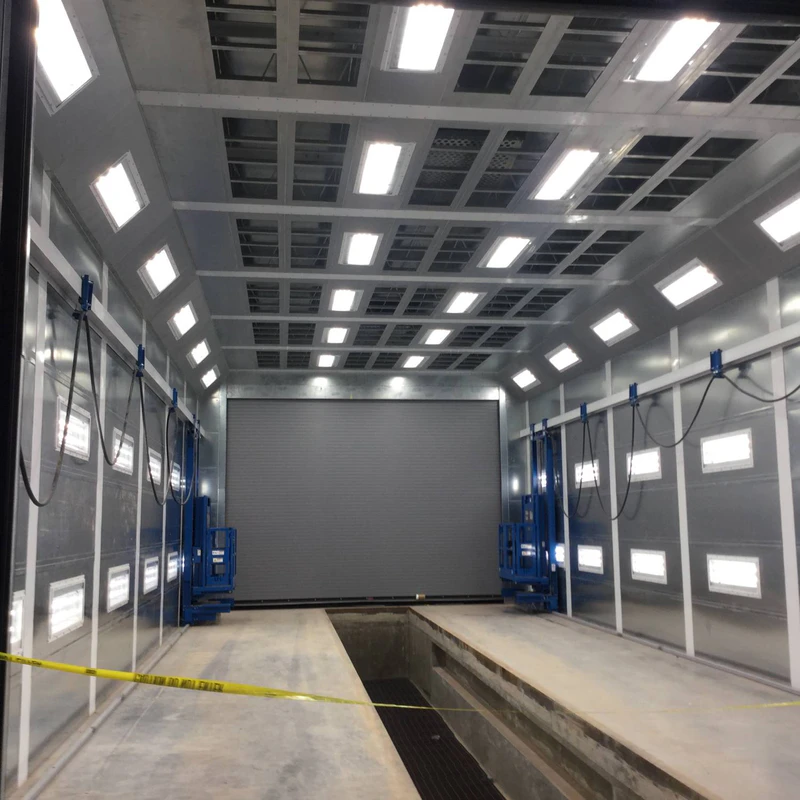

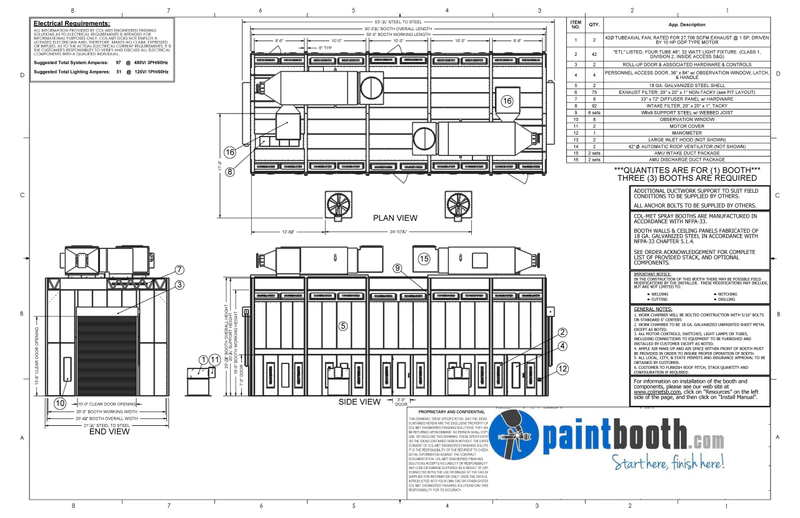

    Large Truck Paint Booth

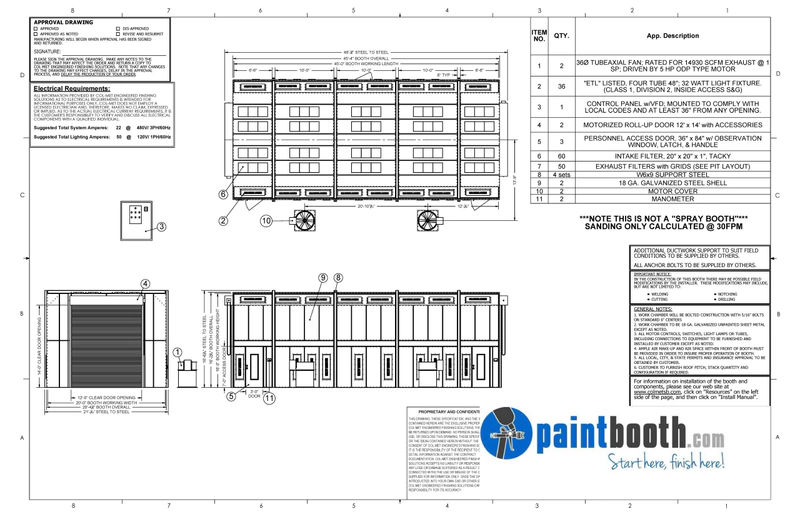

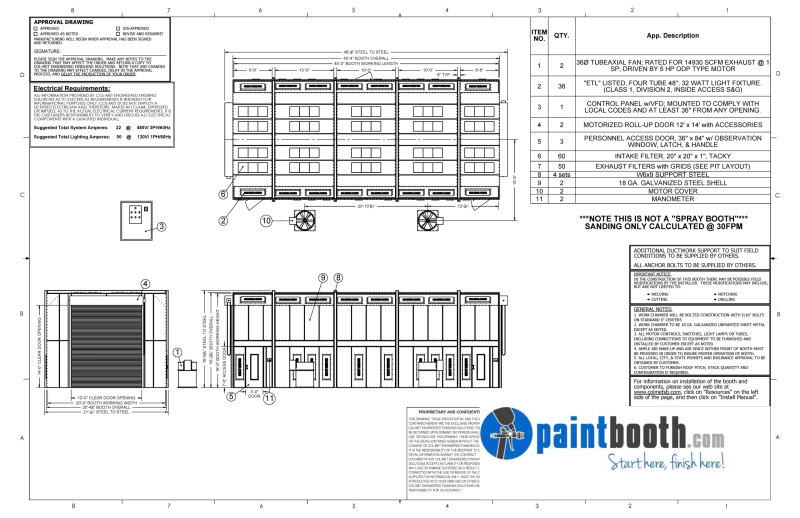

    Non Heated Sanding Booth
    Cross Draft Truck Booth

    Our factory trained installation crew can get your new Large Equipment Paint Booth installed correctly and quickly.


    This our specialty! You can rest assured that your new equipment will be operational in no time.
