Truck and Large Equipment Modified Downdraft Paint Booths
Paintbooth.com offers a comprehensive range of large equipment paint booth models engineered for large-scale industrial finishing applications across Rail, Aerospace, Marine, RV, Trucking and transportation, manufacturing and heavy equipment markets. These systems are designed to accommodate demanding production environments while providing controlled airflow, efficient overspray capture, and a safer, cleaner finishing workspace.
Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.
Standard Features of Our Modified Down Draft Paint Booths
Booth Construction
- Galvanized steel construction: Booths use 18-gauge galvanized-steel panels for the enclosure.
- CNC-punched components: Panels and structural supports are CNC-punched for accurate alignment and straightforward nut-and-bolt assembly.
- Structural framing: Beams and columns are fabricated from formed 10-gauge galvanized steel.
- Optional structural beams: Structural I-beams such as W8×13 can be used with welded, formed-steel attachments.
- Support spacing: Structural supports are positioned at maximum 10-foot centers to increase booth rigidity and stability.
Product and Personnel Doors
- Adjustable installation: Product doors are field-hung on slotted hinges, allowing adjustment in two axes to accommodate uneven floors.
- Personnel access: A standard 36-inch-wide personnel door includes an observation window and is installed in a pre-assembled heavy-duty frame.
Booth Lighting
- Hazardous-location rating: Fixtures are rated for Class I, Division 2, Groups A, B, C, D and Class II, Division 2, Groups F and G applications.
- ETL listing: Fixtures are ETL listed and approved for their intended application and installation location.
- LED technology: Lighting uses high-efficiency LED T-8 Glass Free Tubes.
- Service life: Rated for up to 50,000 hours, significantly longer than conventional fluorescent lamps.
- Performance: Instant-on operation at full brightness with no flicker or buzzing.
- Power flexibility: Fixtures can operate on either 120 VAC or 277 VAC.
Fans and Motors
Uses U.S.-manufactured, brand-name tube-axial fans and motors for booth ventilation and exhaust applications.
Air Solenoid Valve
The air solenoid valve is interlocked with the exhaust fan and spray-equipment air supply, helping ensure that the appropriate ventilation conditions are established during spray operations.
Performance and Compliance
- Booth performance is designed to meet or exceed applicable OSHA and NFPA requirements.
- ETL-listed control panels are available as an option on many booth configurations.
Overall: The standard package combines galvanized-steel construction, precision CNC fabrication, adjustable access doors, hazardous-location LED lighting, U.S.-made ventilation equipment, interlocked controls, and regulatory compliance to provide a durable and safety-focused industrial paint booth.
Paint Booth CFM Calculator
Face-area estimate
- Opening area
- —
- Face velocity
- —
- Calculation
- —
Important: This calculator provides a preliminary airflow estimate. Final booth airflow must account for booth type, applicable codes, coating hazards, filter loading, duct losses, fan static pressure, and approval requirements. Please contact us today 1-833-552-6684
Select Your Equipment Type :
Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.

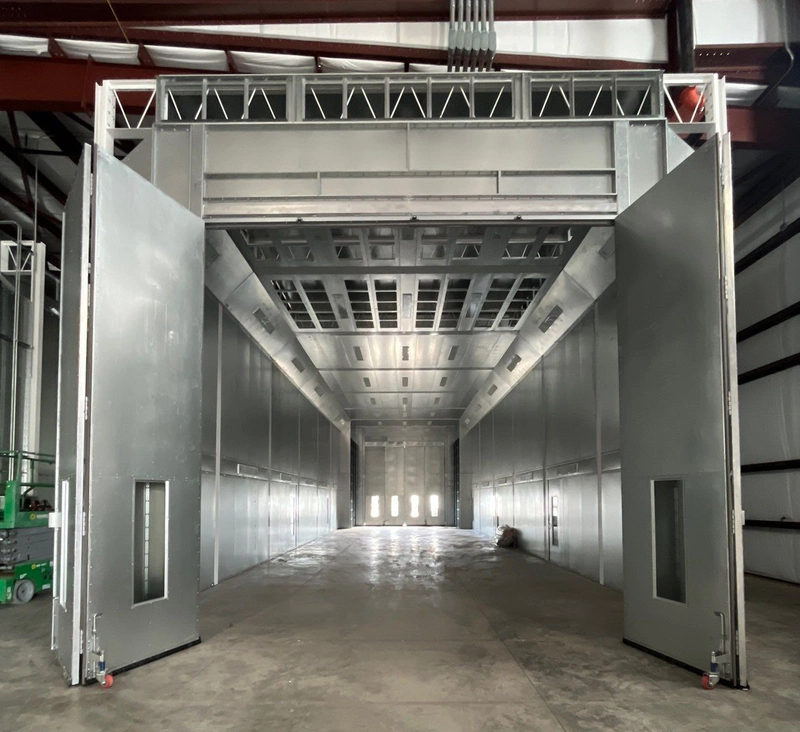

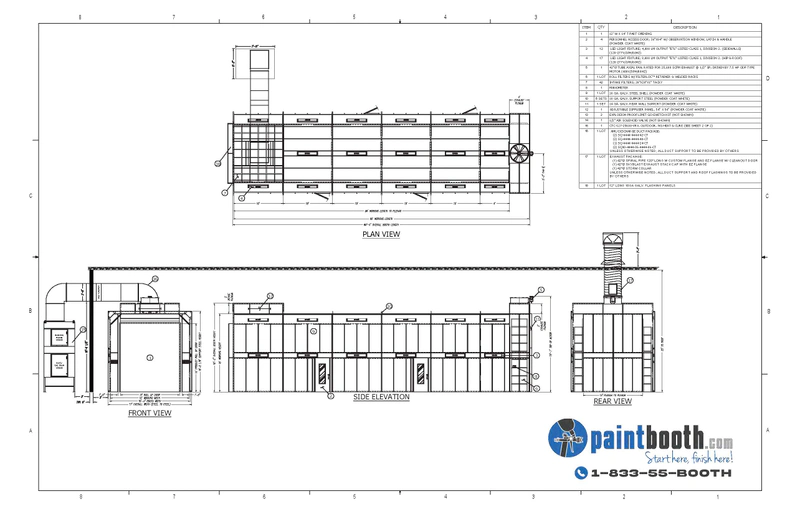

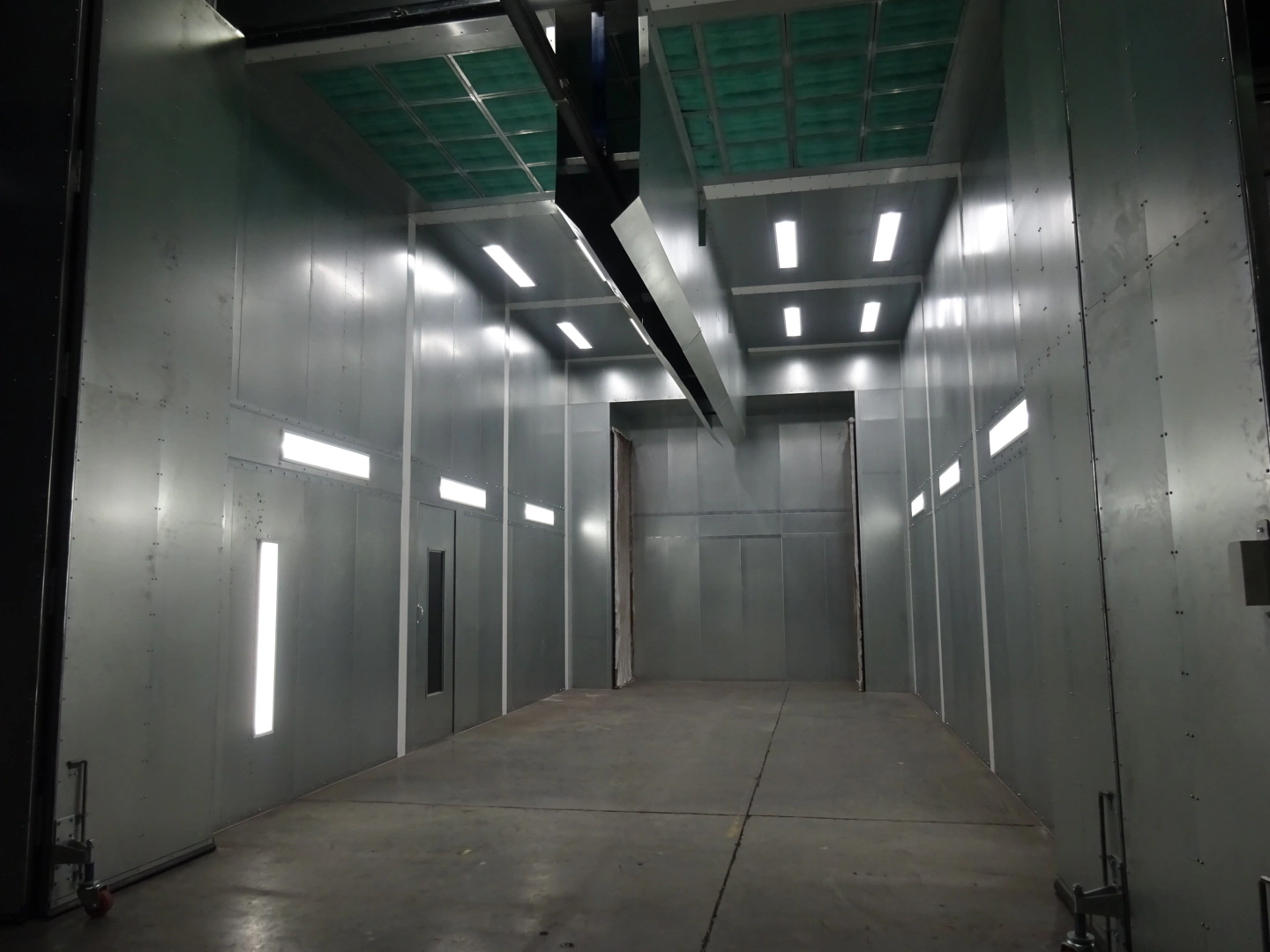

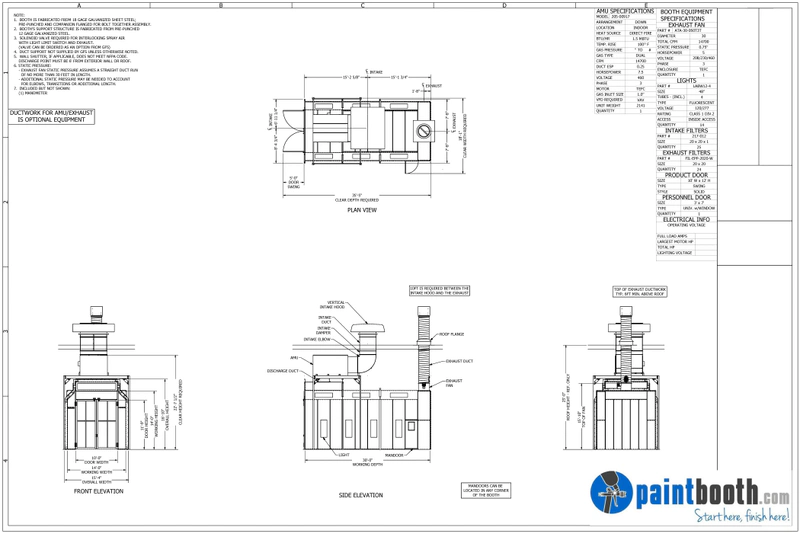

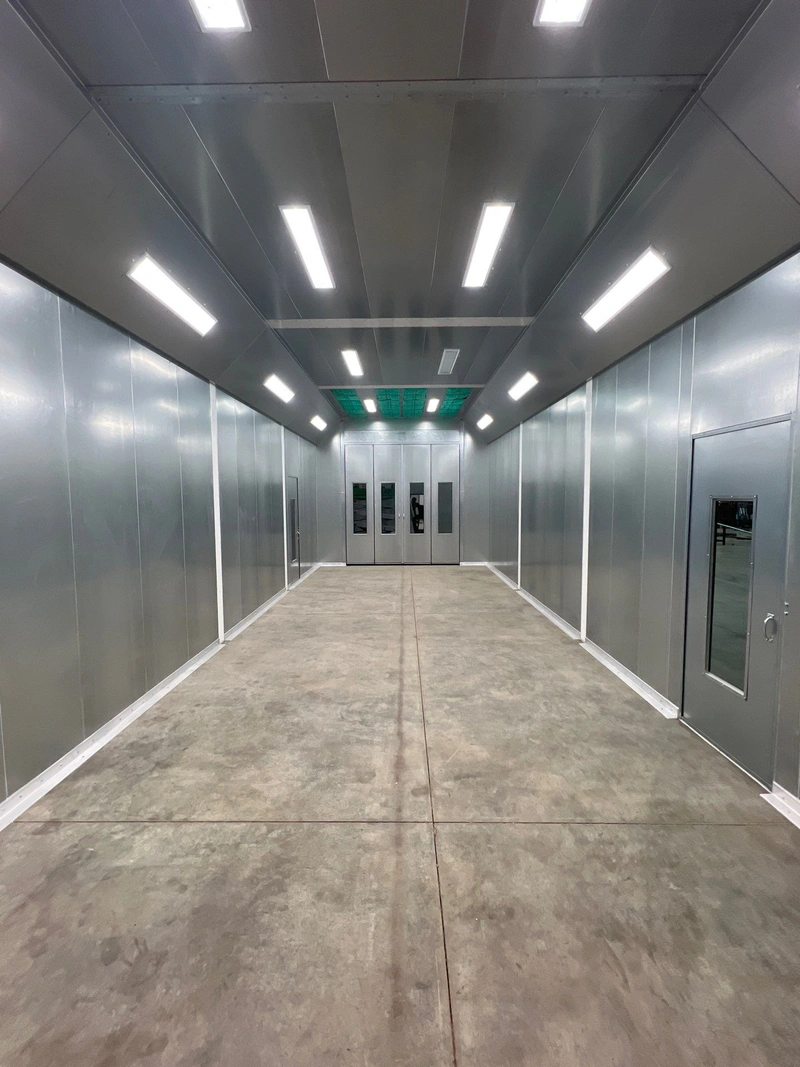

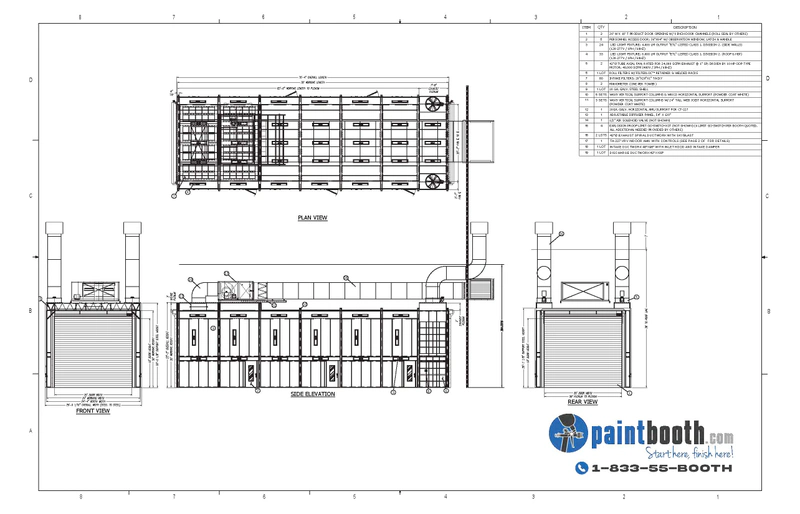

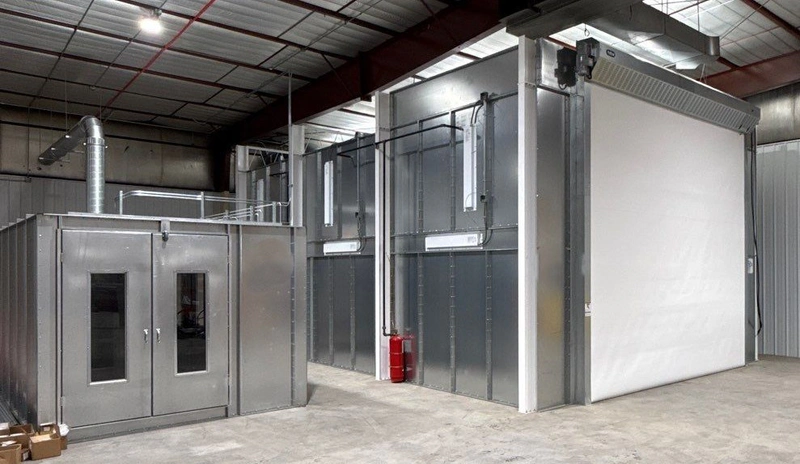

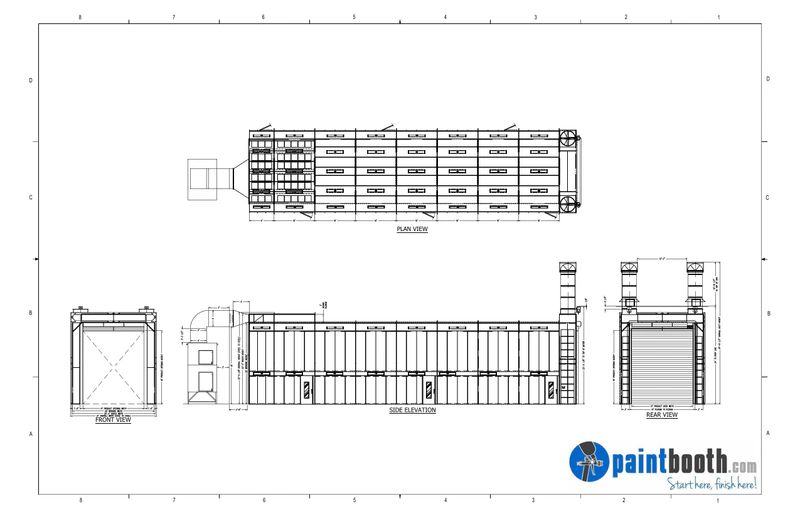

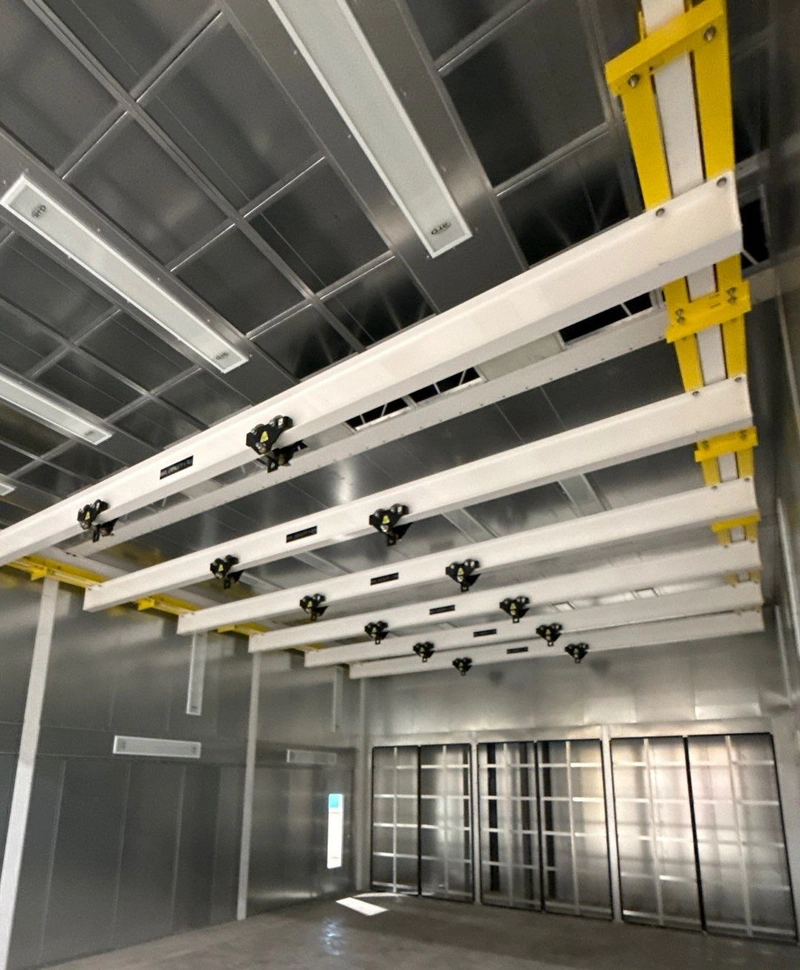

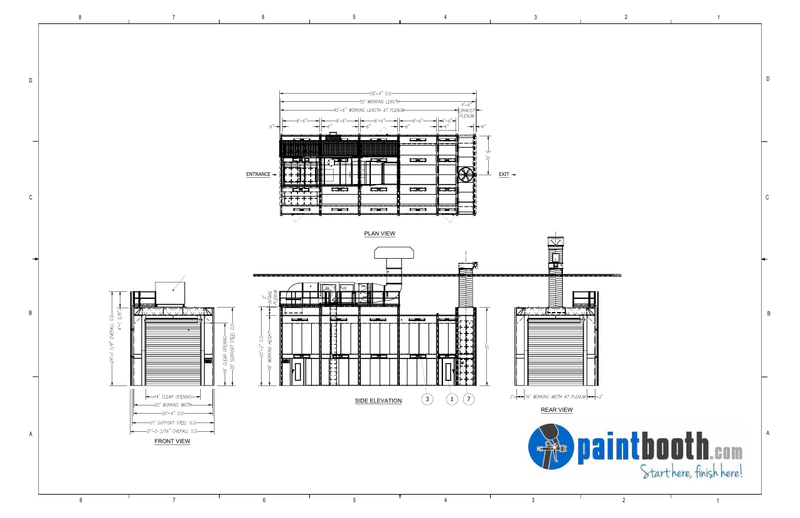

Example Drawings
FAQs
How does a Modified Downdraft truck paint booth work?
A Modified Downdraft truck paint booth introduces filtered air through the ceiling near the front of the booth. Air moves downward and across the truck before overspray is captured by a filtered exhaust chamber at the rear. This airflow pattern helps move contaminants away from the upper surfaces of the vehicle without requiring a concrete exhaust pit.
Does a Modified Downdraft truck paint booth require a pit?
No. Modified downdraft booths exhaust air through a rear wall plenum instead of beneath the floor. Eliminating the pit reduces excavation, concrete work and installation costs. This makes modified downdraft airflow a practical and economical option for existing shops where installing a full downdraft pit would be difficult or expensive.
Is Modified Downdraft better than a Cross Draft for painting trucks?
Modified downdraft airflow provides filtered ceiling air over the front and upper sections of the truck before moving toward the rear exhaust. This can provide (when pressurized) better contaminant control around critical upper surfaces than a standard Cross Draft booth. A Cross Draft remains the more economical option, while modified downdraft offers a balance between finish quality and installation cost.
What vehicles can be painted in a modified downdraft booth?
Modified downdraft booths can be designed for semitrucks, buses, RVs, trailers, Rail & Transit Cars, Marine, Locomotive commercial vehicles and heavy equipment. Booth dimensions can be customized around the largest product, required painter clearance and material-handling method. Drive-through and solid-back configurations are available.
Can a modified downdraft truck booth be heated?
Yes. A heated air makeup unit can supply filtered, temperature-controlled replacement air for spraying and drying. It can be mounted indoor, outdoor, on the booth or on top of the building roof.
Our factory trained installation crew can get your new Truck and Large Equipment Modified Downdraft Paint Booths installed correctly and quickly.
This is our specialty! You can rest assured that your new equipment will be operational in no time.
