Insulated Oven Panels
Insulated Panel Standards
If you are looking to repair or build your own oven Look No Further we Have you Covered Here are just a few of the standards used in the construction of our oven Panels:
- 20-gauge aluminized steel available in 2", 4", 6", and 8" insulated panels
- Tongue-and-groove wall panels to provide a leak-free seal
- 4 lb. density semi-rigid/resilient mineral wool insulation; optional 6 lb. and 8 lb. density available
- Available up to 180" lengths, with custom lengths upon request

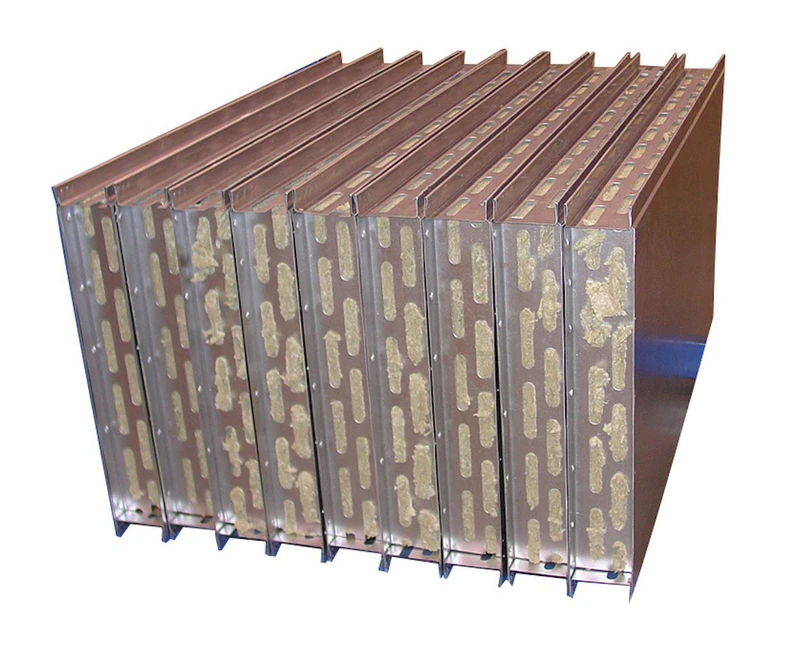

- Slotted channel design to reduce heat transfer
- Powder coating is also available for the panels
- Standard panels are 27 1/2", providing a net width of 26"; panels can be made in widths up to 36"
Explore Oven Types
Oven Panel Construction

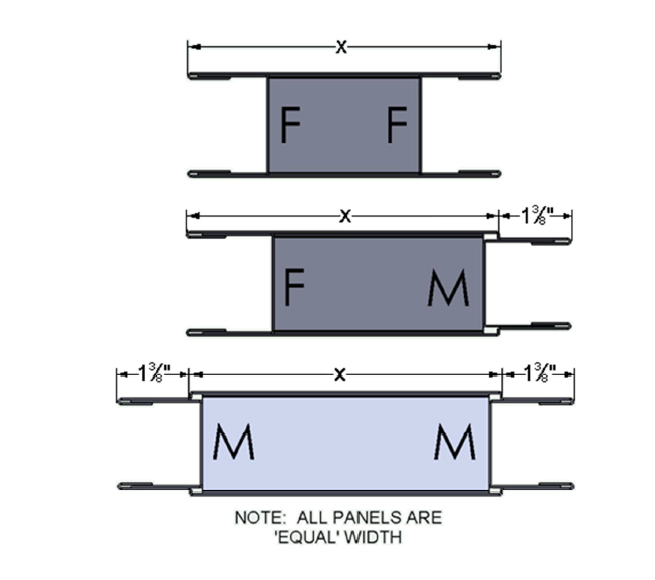

Our insulated panels are rigidly constructed utilizing “knuckle” punch for attaching the top and bottom connecting panels and a “button” punch along the tongue and groove surfaces. This type of assembly process provides superior strength while protecting the appearance of the panels.

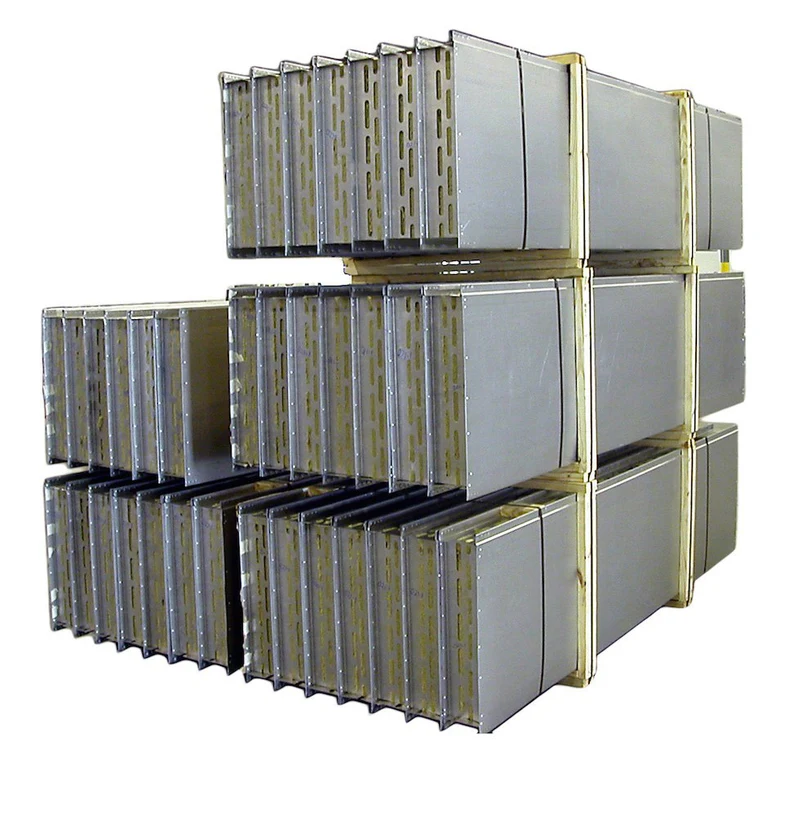

Panels are shipped in a vertical orientation to aid in the installation of insulation into the channel prior to interlocking the panels during the assembly process.
Insulated Panels & Trim Information

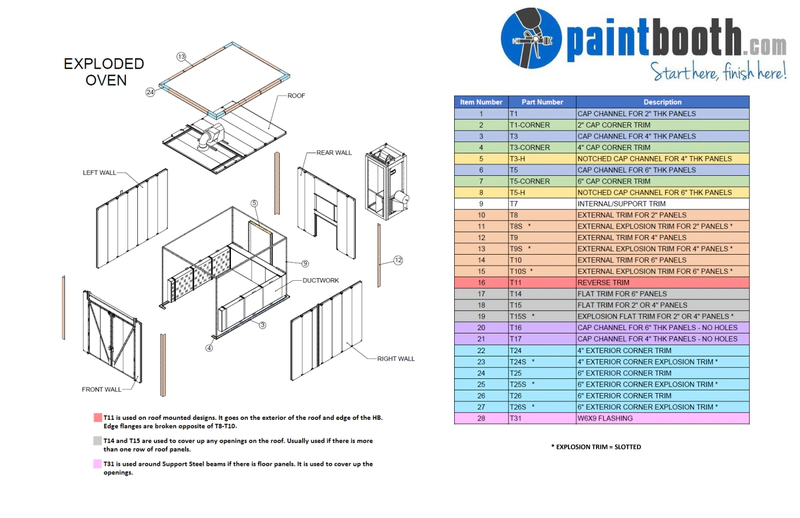

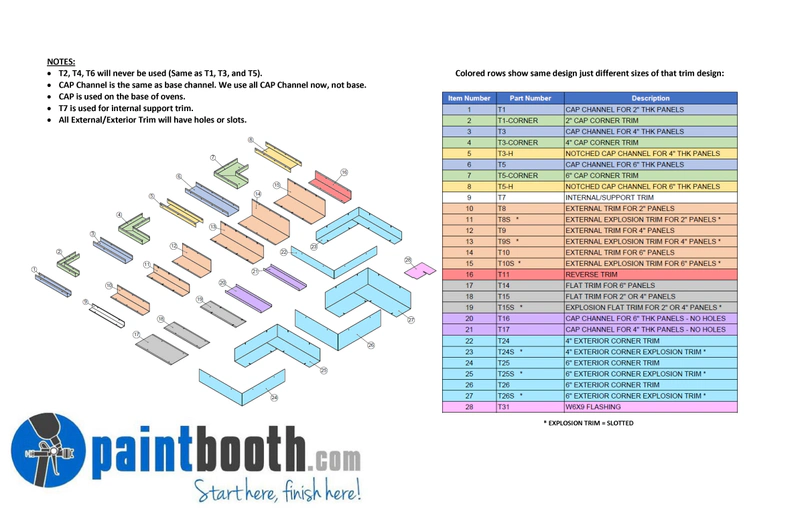

Review the insulated panel and trim drawings for panel details, edge trim, and updated oven panel literature.
FAQs
What are insulated oven panels used for?
Insulated oven panels are used to construct or repair industrial ovens, powder coating ovens, curing ovens and drying systems. They form the insulated walls and ceilings of the oven while helping retain heat and maintain consistent operating temperatures. Paintbooth.com oven panels are constructed from 20-gauge aluminized steel and are available in multiple insulation thicknesses for new builds, expansions and replacement applications.
Are there different thicknesses available for insulated oven panels?
Insulated oven panels are available in 2-inch, 4-inch, 6-inch and 8-inch thicknesses. The proper panel thickness depends on oven operating temperature, heat retention requirements and the specific industrial process. Panels are insulated with semi-rigid mineral wool, with multiple insulation densities available depending on the application.
Do you provide replacement oven panels for an existing powder coating oven?
Yes. Insulated oven panels can be manufactured for repairs, replacements, oven expansions and custom industrial oven projects. Panels are available in lengths up to 180 inches, with custom lengths and widths available upon request. Providing the dimensions and construction details of your existing oven can help determine the correct replacement panel configuration.
How are insulated oven panels designed to reduce heat loss?
Industrial oven panels use insulated construction and interlocking tongue-and-groove connections to create a tight seal between panels. The slotted channel design helps reduce heat transfer through the panel structure, while mineral wool insulation helps retain heat inside the oven. Proper panel construction can improve temperature stability and reduce unwanted heat loss from powder coating and industrial curing ovens.
Our factory trained installation crew can get your new Powder Coating Oven installed correctly and quickly.
This is our specialty! You can rest assured that your new equipment will be operational in no time.
