Large Railcar-Transit Paint Booths
Over the past 25 years we have worked coast to coast in many of today’s top rail car facilities. Some of our valuable customers include are Newest Rail Customer Iron Horse Terminal in 2024-2025, Stadler Rail, AITX, Union tank Car, Progress Rail, Professional Locomotive Service, Metro East Industries and Trinity Rail.
If you are in the market for any Rail Car related finishing Equipment, please give us a call or fill out the request form below.
Engineering Expertise—In House and Built Around Your Needs
Here at Paintbooth.com, we have one of the most experienced in-house engineering teams in the finishing industry. Our team works directly with you to design and engineer equipment around your facility, production requirements, workflow, and long-term goals.
From individual paint booths to complete finishing systems, we provide the system design, equipment engineering, facility layout, and technical expertise needed to develop a solution that performs for your operation.
Your facility is unique. Your finishing system should be too.
- Industry focus: Provide finishing equipment and paint booth solutions for the rail car and rail transportation industry, including both new manufacturing and refurbishment.
- Applications: Systems can support the finishing of:
- Tanker Cars-Lining Stations
- General Freight/Transport Cars
- Locomotives
- Other Large Rail Equipment
- Rail Line Repair Equipment
- Liner Stations
- Industry importance: Rail transportation supports the movement of a wide range of goods, including vehicles, oil, coal, and fuel, creating an ongoing need for both new-coating and refurbishment operations.
- Experience: With more than 25 years of experience working with rail-car facilities across the country.
- Rail-industry customers: Some of our rail car facility customer list includes Iron Horse Terminal (2024–2025), Stadler Rail, AITX, Union Tank Car, Progress Rail, Professional Locomotive Service, Metro East Industries and Trinity Rail.
- Expertise: Why use US? Our experience and familiarity with the large finishing applications, production requirements, ventilation, filtration, and finishing demands associated with rail-car and locomotive applications.
- Performance focus: Booths and finishing systems use premium components and application-specific configurations to promote consistent finishes, higher productivity, efficiency, and long-term performance.
- Regulatory compliance: The systems are stated to meet applicable OSHA and NFPA requirements, supporting workplace safety and regulatory compliance.
Paint Booth Airflow configurations: Available styles include:
- Crossdraft Paint Booths
- Semi Downdraft Paint Booths
- Side Downdraft Paint Booths
- Pit Downdraft Paint Booths
- Industrial Exhaust Chambers
Size and configuration: Systems are available in both standard prefabricated and custom configurations, with a wide range of sizes.
Available options: Industrial Railcar Paint Booths can be customized with:
- Heated Air Make-Up Units (AMUs)
- Temperature-controlled AMUs
- Powder Coated Finish
- Roll-up doors
- Conveyor slots
- Drive-through configurations
- Three-stage filtration
Overall value: The offering is positioned as a flexible, application-specific finishing solution, allowing the booth's airflow, filtration, access, heating, and configuration to be tailored to the customer's production requirements.
Performance and Compliance
- Booth performance are designed to meet or exceed applicable OSHA and NFPA requirements.
- ETL-listed control panels are available as an option on many booth configurations.
Overall: The standard package combines galvanized-steel construction, precision CNC fabrication, adjustable access doors, hazardous-location LED lighting, U.S.-made ventilation equipment, interlocked controls, and regulatory compliance to provide a durable and safety-focused industrial paint booth.
Crossdraft: Emphasizes simplicity, cost-effectiveness, consistent airflow, and contamination control:
- Cost-effective design: A straightforward configuration that provides effective airflow and filtration without the complexity of a downdraft system.
- Airflow direction: Clean air enters through an intake plenum or filtered doors at the front of the booth and moves horizontally through the working area before being exhausted through a rear plenum.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively uniform airflow throughout the booth, supporting a consistent, high-quality paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping maintain a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, reducing the possibility of contaminated shop air entering the booth.
- Filtration capacity: The system is designed with a maximized number of intake and exhaust filters to promote effective particulate filtration.
- Primary benefit: Provides a simple, economical, and controlled painting environment with consistent horizontal airflow and effective contaminant management.
Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.
Side Downdraft: Provides many of the airflow benefits of a traditional downdraft booth without requiring a floor pit:
- Economical installation: Designed for shops that cannot or do not want to install a below-floor exhaust pit, reducing installation cost and complexity.
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the working area.
- Side exhaust: Instead of exhausting through a floor pit, contaminated air is drawn into filter chambers along both side walls that extend the length of the booth.
- Consistent air velocity: The intake and side-exhaust filter arrangement is designed to provide even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping create a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, minimizing the introduction of potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides downdraft-style vertical airflow and contamination control without the expense and construction requirements of a floor pit, making it a practical option for many existing shops.
Pit Downdraft: Emphasizing airflow consistency, contamination control, and finish quality:
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the booth toward a filtered exhaust pit in the floor.
- Overspray and contamination control: Downdraft airflow helps capture overspray and airborne contaminants, reducing the risk of particles settling on the painted surface.
- Consistent air velocity: The intake and exhaust filter arrangement is engineered to provide relatively uniform airflow throughout the work area, which is important for achieving a consistent paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, creating a cleaner painting environment.
- Pressurized booth: Air can be supplied directly from an air makeup unit (AMU) or intake fan into the intake plenum, minimizing the introduction of contaminated shop air.
- Maximized filtration: The booth uses a high quantity of intake and exhaust filters to improve particulate filtration and maintain efficient airflow.
- Primary benefit: The overall system is designed to provide a cleaner, more controlled painting environment and a higher-quality finish while effectively managing overspray.

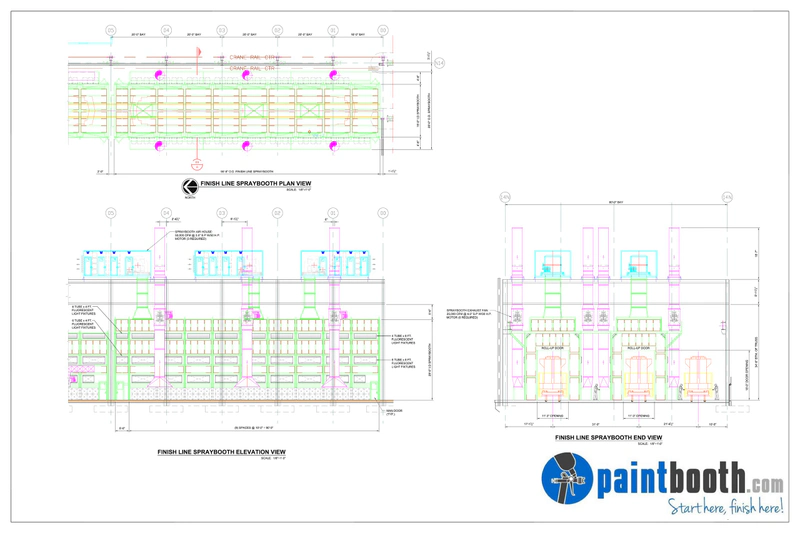

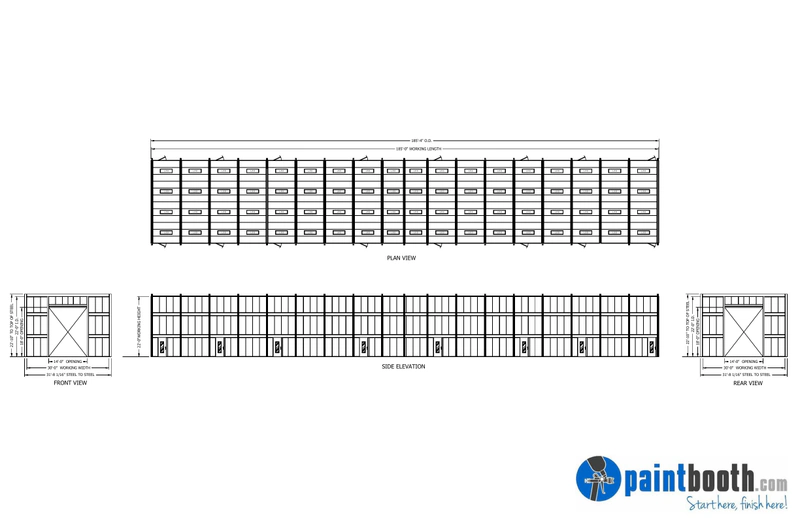

Example Rail Car Paint Booth Drawings
FAQs
What size paint booth do I need to paint a rail car or locomotive?
A rail car paint booth should be sized around the longest and tallest rail equipment being coated while allowing adequate working clearance for painters, man lifts or scaffolding. Booth length, width, height, track layout, exhaust location, air makeup equipment, and maintenance access should all be considered during design. Paintbooth.com offers both standard and custom railcar booth configurations for locomotives, tanker cars, freight cars, transit cars, and other large rail equipment.
What is the best airflow design for a rail car paint booth?
The best railcar paint booth airflow depends on the size of the car, coating process, building layout, finish requirements, and whether a pit can be installed. Rail car booths can be designed as Cross Draft, Semi-Downdraft, Side Downdraft, or Full Pit Downdraft systems. The pit down draft is the most challenging to do as we must consider the rail bed installation and obstructions. Most rail Car booths are either Cross Drafts or Side Down Drafts due to the rail bed.
Can a rail car paint booth be designed as a drive-through system with tracks?

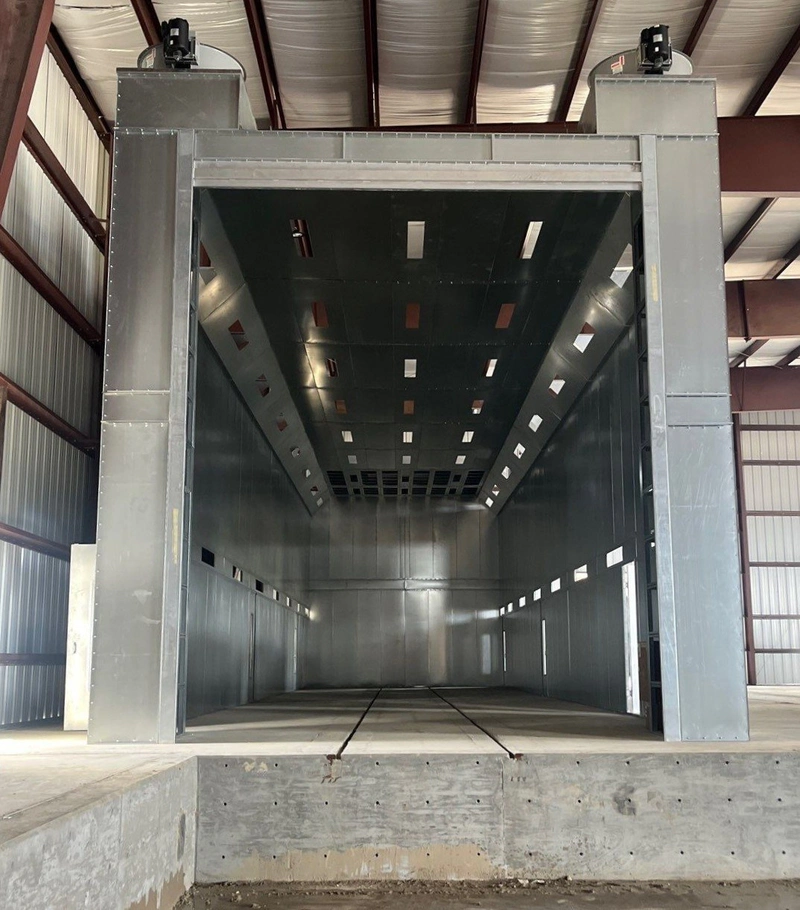

Yes. A drive-through rail car paint booth can be engineered around existing or new rail tracks so locomotives, tanker cars, freight cars, and transit equipment can move directly through the enclosure. Rail-specific systems can include large roll-up doors, track openings, transfer-table coordination, custom product openings.
Do rail car paint booths need heated or temperature-controlled air?
While you do not need a Make Up Air you can benefit from a heated or temperature-controlled air makeup unit, especially when applying industrial primers, topcoats, urethanes, or protective coatings. Maintaining a more consistent booth temperature and airflow can help improve application conditions, flash times, curing, and overall finish consistency. Paintbooth.com rail systems can be configured with heated or temperature-controlled AMUs, auto-balance controls, and reduced volume curing modes.
Our factory trained installation crew can get your new Rail Car Booth installed correctly and quickly.
This is our specialty! You can rest assured that your new equipment will be operational in no time.
