Pass-Thru Powder Booths
Pass-thru Powder Booths

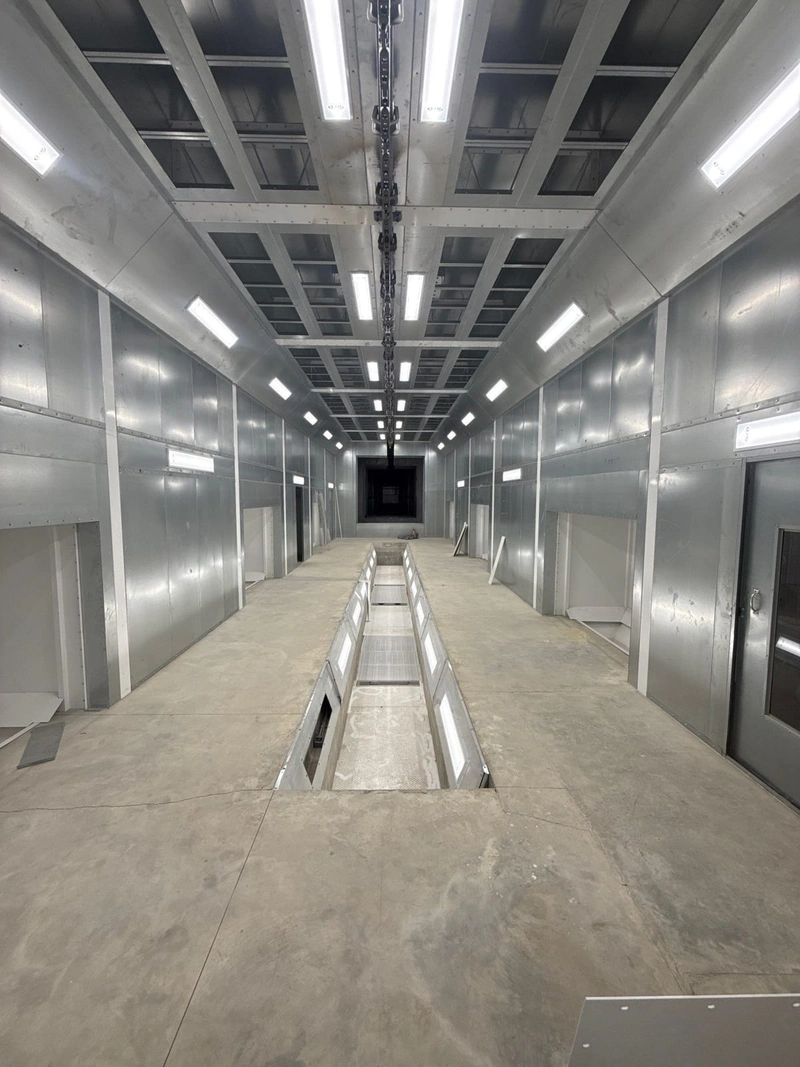

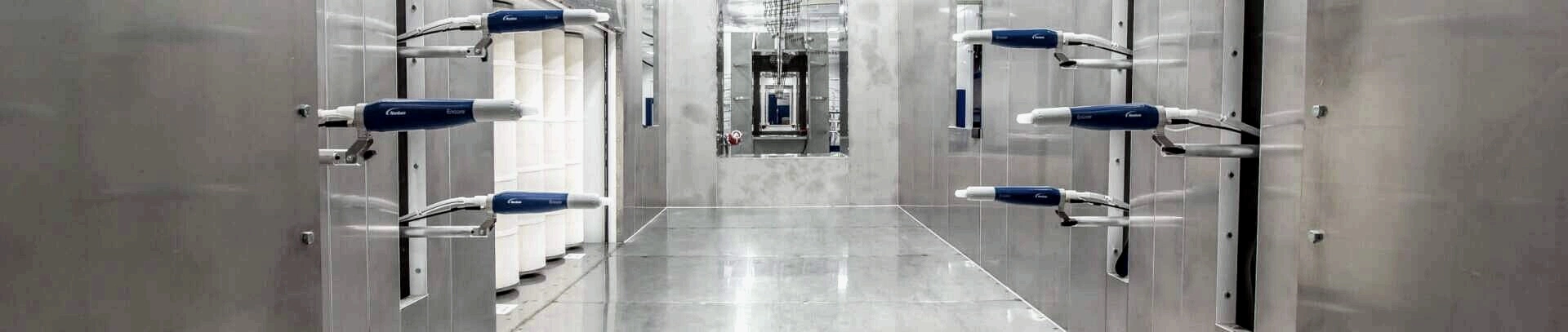

Pass-thru Powder Booths are mainly used for continuous or high-production powder coating lines, where parts enter through the one opening, get coated inside the booth, and exit through the opposite end.
They are typically used when parts have to be handled using some sort of overhead conveyor or monorail. Instead of loading the parts on the booth or a cart into a booth, stop production, coating it and unloading it or emptying the booth, the parts continue to move through the finishing process.
Ideally, if it makes sense you would use recovering collectors for recovering powder when using the same powder color applications. Air will be introduced into the booth and through the collection system, capturing powder and after the filtration system, exhaust the air back into the building. The booth is designed with the maximized filter quantity to assure efficient particulate filtration from the cartridge filters. The booth is equipped with a self-pulsing system that continuously cleans cartridge filters for longer filter life. Unused powder can be reclaimed for future powder application.

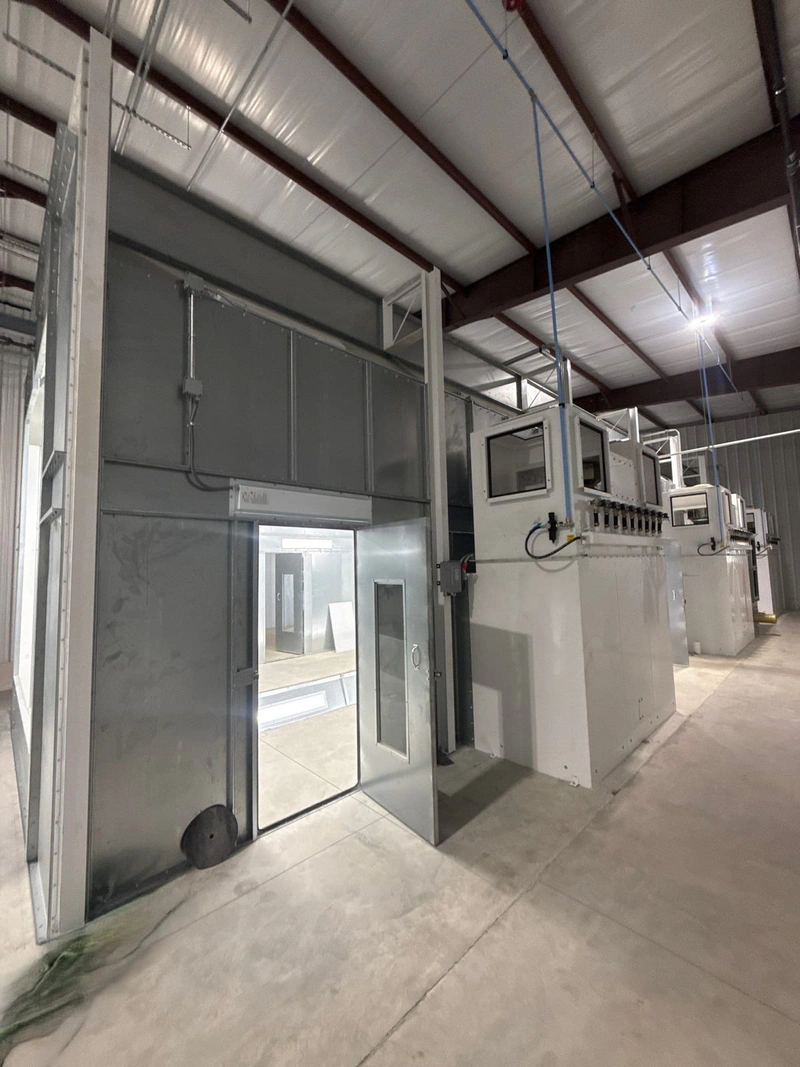

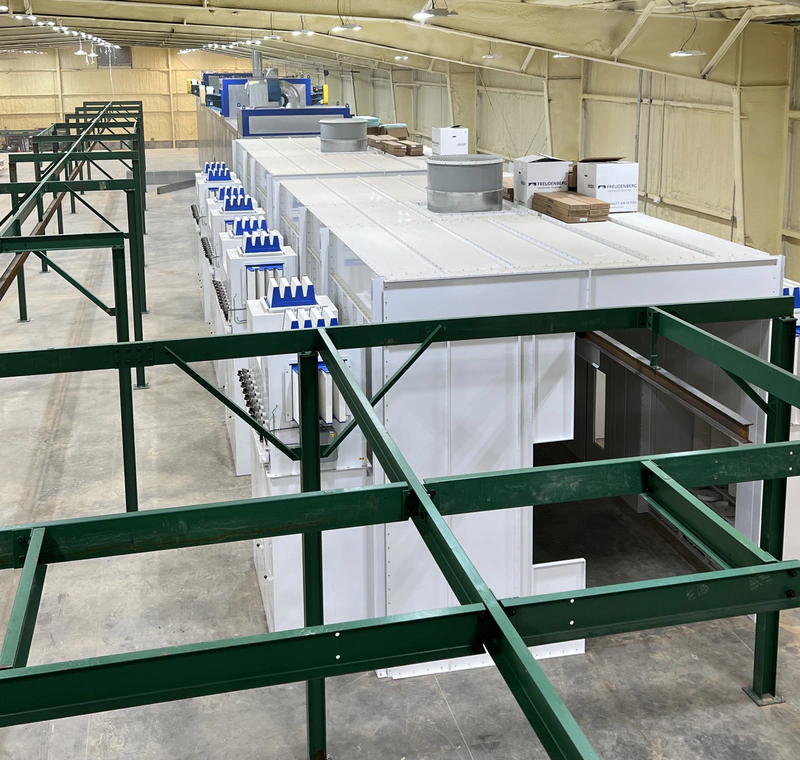

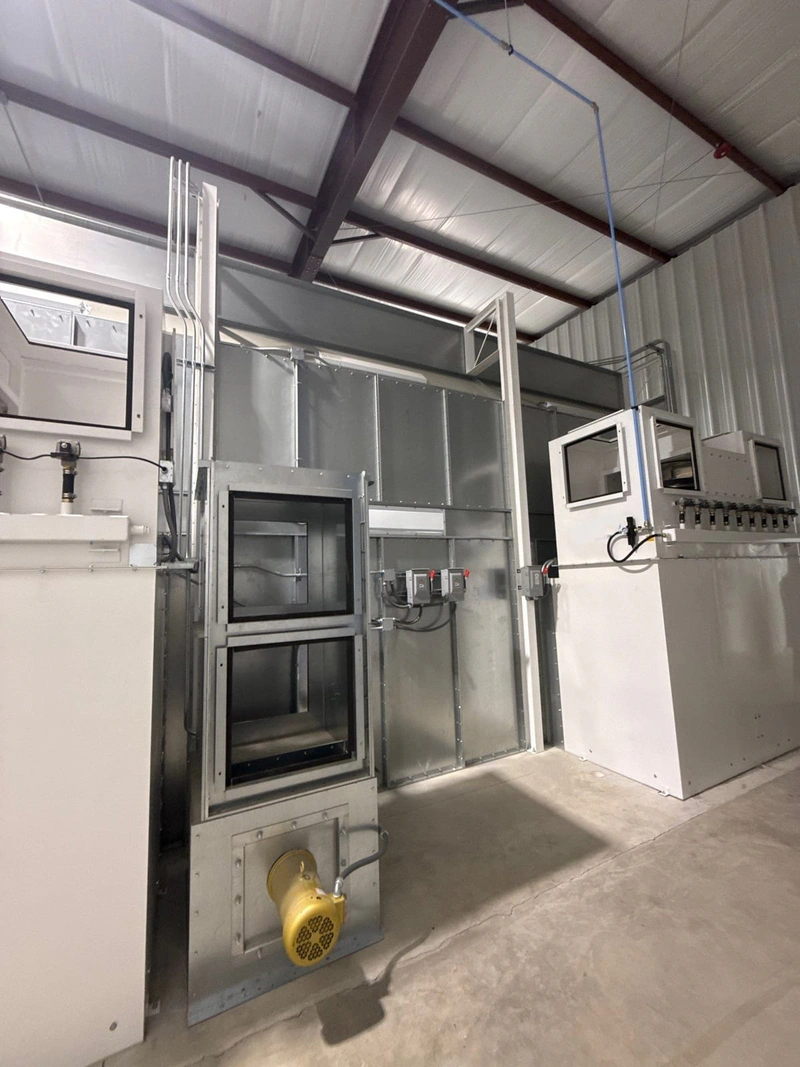

Cartridge-Style Powder Collection Modules
With high-efficiency filtration, fan and motors, Powder Collection Modules deliver superior performance for your powder coating application. Each module includes a heavy-duty TEFC motor designed to provide added efficiency and lower operating costs. Durable, high-efficiency cartridge filters are held in place with a twist-locking mechanism. In addition to providing fast and easy cartridge replacement, the product offers a reinforced seal to minimize powder leakage. Powder collection modules are shipped modular. Upper section shipped as a module, lower section shipped for field assembly.
Pass-thru Powder Booths are available in a wide range of configurations to meet virtually any production requirement. From Trailers, dump-beds and industrial products, these booths remain one of the most versatile finishing solutions in the industry.
Designed for Flexible Production
Pass-thru powder booths are designed around the largest produced part for proper booth sizing and heaviest part for proper support. These booths are available in numerous sizes and configurations, making them suitable for a variety of finishing applications.

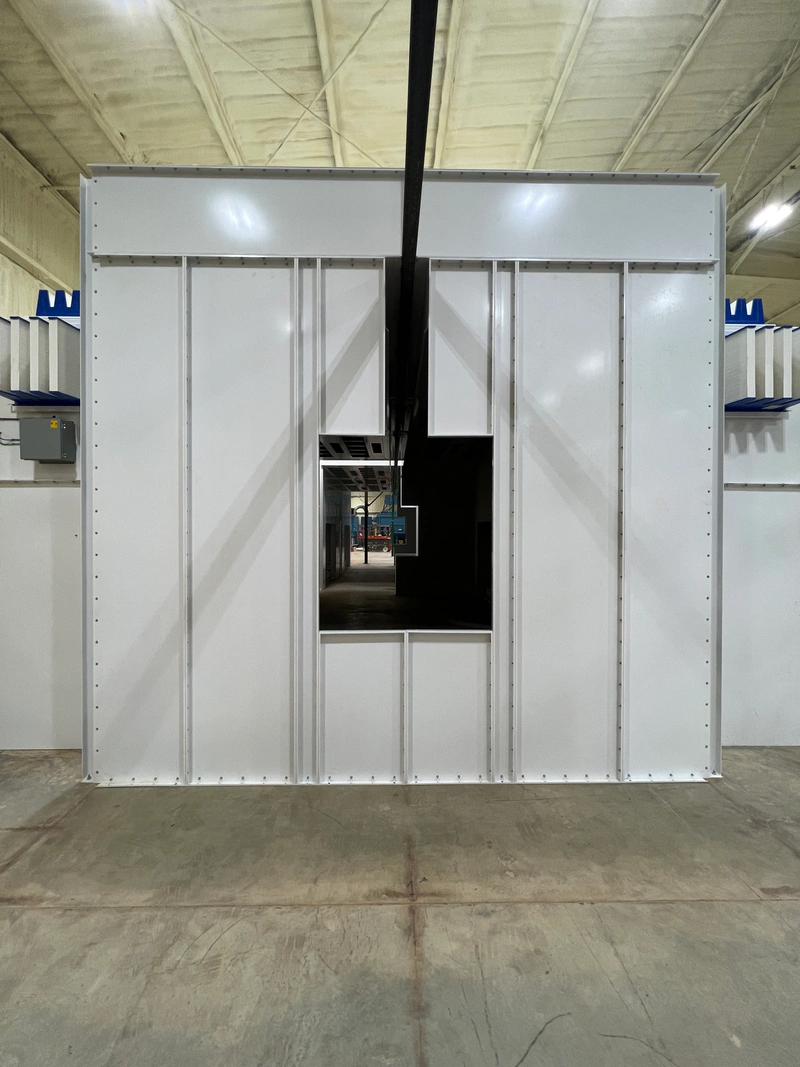

It is important to understand that adding product openings to these booths changes the way air moves through the booth. At times, we are able to incorporate pneumatically operated or automated doors to the openings, but when remained open; because a paint booth relies on controlled airflow to safely capture powder overspray and contain powder in other production areas, the required CFM may need to be increased or adjusted when conveyor or crane openings are added.
Our engineering team evaluates the size and location of these openings, along with the overall booth design and application, to determine the airflow required to maintain proper booth performance and meet applicable code requirements.
For more specialized applications, custom-engineered enclosures can also be designed around unique part sizes, material-handling systems, and production processes.
Standard Models Available
We offer a variety of standard powder recovery powder booth models designed for quick delivery and installation.
Have questions about sizing, airflow, filtration, or configuration? Call 833-552-6684 and our team can help you select the right pass-thru powder booth for your application.
Booth Details and Options

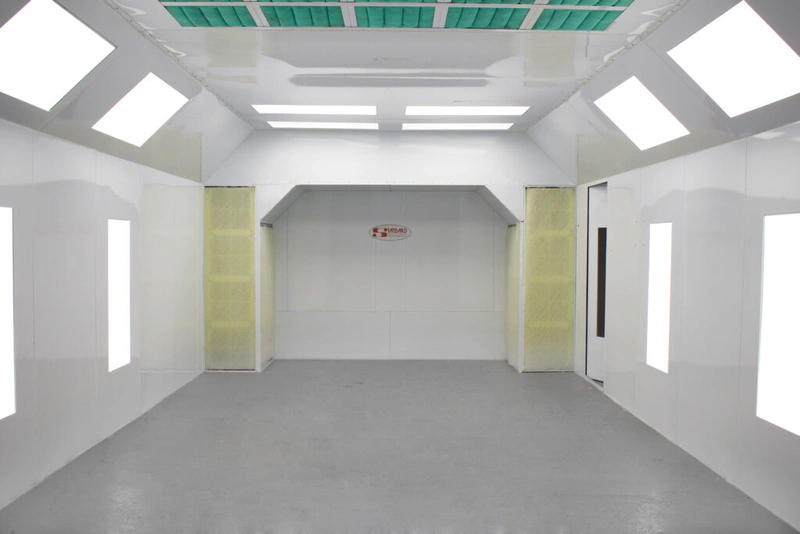

T-8 LED Lighting
- Safety: Glass-free, ETL-listed LED lamps with no mercury, UV, or infrared emissions.
- Performance: Instant-on operation at full brightness with no flicker or buzzing.
- Energy efficiency: Up to 40% lower energy consumption compared with traditional 32-watt fluorescent T8 systems.
- Service life: Rated for up to 50,000 hours, significantly longer than conventional fluorescent lamps.
- Disposal: Mercury-free construction allows for non-hazardous waste disposal, subject to applicable local requirements.

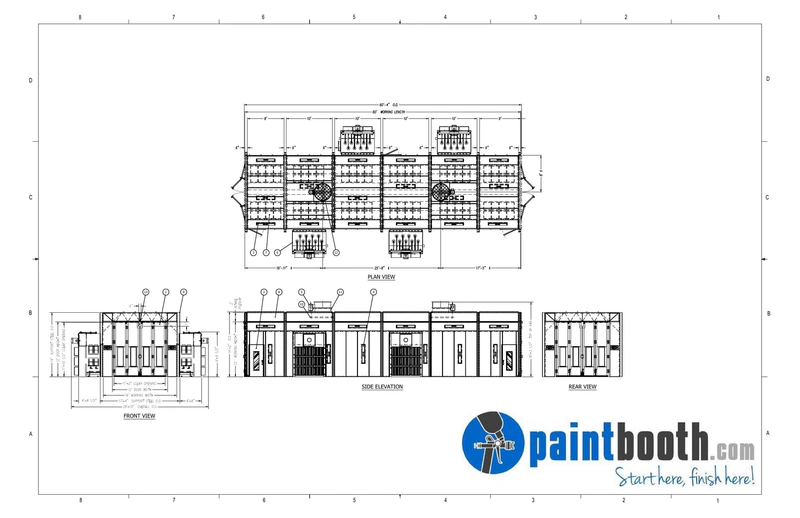

Example Pass Thru Powder Booth Drawings
FAQs
What is a pass-through powder coating booth?
A pass-through powder coating booth is designed for continuous or high-production finishing lines where parts enter through one end of the booth, are coated inside, and exit through the opposite end. These booths are commonly integrated with an overhead conveyor or monorail so parts can move continuously through pretreatment, powder application, and curing without stopping the production line.
When should I use a pass-through powder booth instead of a batch booth?
A pass-through powder booth is typically a better choice when production volume, conveyorized material handling, or cycle-time requirements make continuous processing more efficient than batch coating. Batch booths require parts to be loaded, coated, and unloaded in separate cycles, while a pass-through booth allows parts to keep moving through the finishing process. This makes pass-through systems well suited for repetitive industrial production and higher parts-per-hour requirements.
Can a pass-through powder coating booth reclaim unused powder?
Yes. A powder recovery pass-through booth can use cartridge-style collection modules to capture overspray so unused powder may be reclaimed for future application. Powder reclaim is especially useful when a production line runs the same color for extended periods. Paintbooth.com systems can include self-pulsing cartridge filters that continuously clean the filter media to help maintain airflow and extend cartridge life.
How do conveyor openings affect powder booth airflow?
Conveyor slots, crane openings, and product openings can significantly affect powder booth airflow and containment because they create additional paths for air to enter or leave the enclosure. Depending on the size and location of the openings, the exhaust CFM may need to be increased or adjusted to maintain proper powder containment. Paintbooth.com evaluates the booth dimensions, openings, material-handling system, and application requirements when determining the required airflow.
How do you size a pass-through powder coating booth?
A pass-through powder coating booth should be sized around the largest part being coated, the required working clearance, conveyor configuration, production rate, and the weight of the parts being supported. Booth height, width, product openings, filtration capacity, and airflow should all be evaluated as part of the complete finishing process. Custom booths can also be engineered for trailers, dump beds, industrial components, and other large or unusual products.)

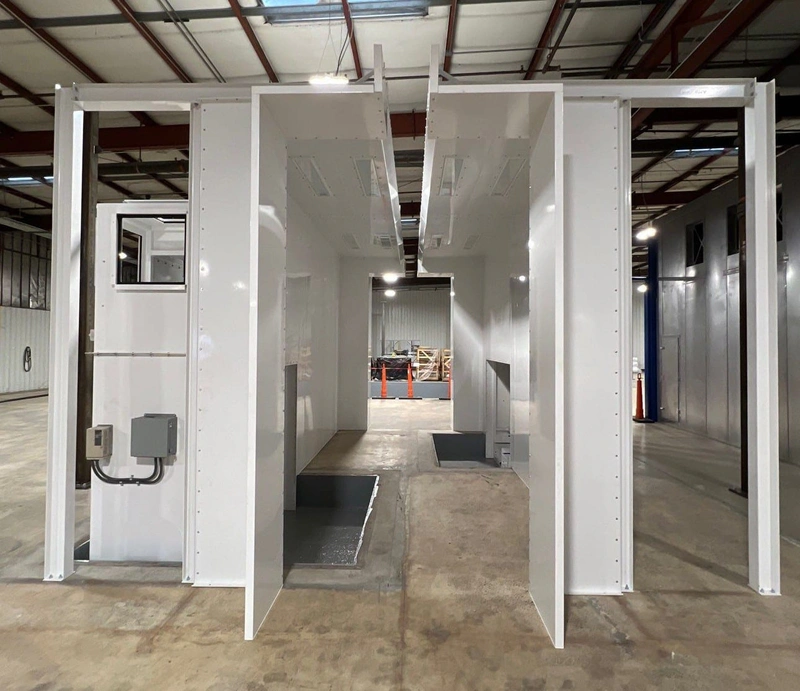

Our factory trained installation crew can get your new Pass Through Powder Coating Booth installed correctly and quickly.
This is our specialty! You can rest assured that your new equipment will be operational in no time.
