Truck and Large Equipment Full Downdraft Paint Booths
Full Downdraft Paint Booths
Premium Airflow for Superior Overspray Control & Finish Quality
Full Downdraft Paint Booths are often considered the premium airflow configuration for applications where finish quality, contamination control, and consistent airflow are critical.
Unlike Crossdraft or Semi-Downdraft designs, a Full Downdraft booth moves air vertically from the ceiling directly toward the floor, carrying overspray and airborne contaminants away from the product and into a filtered exhaust pit below the booth.

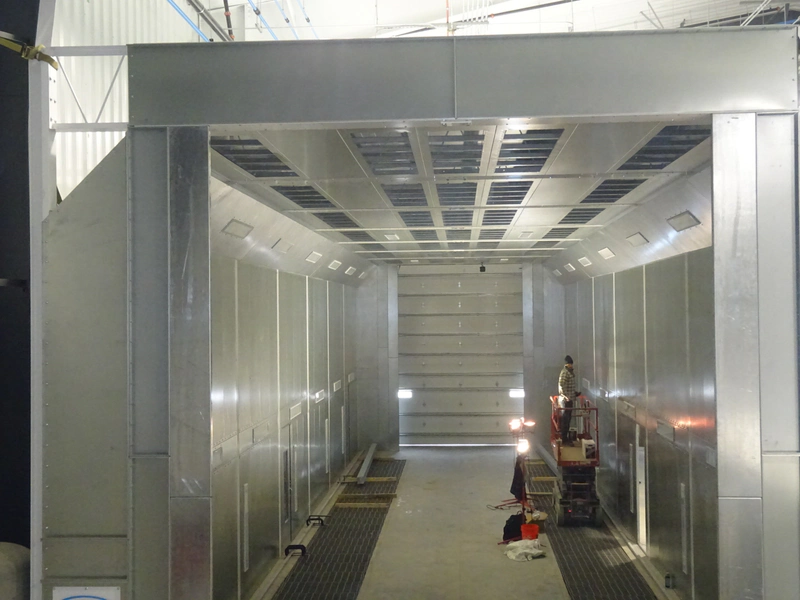

How Full Downdraft Airflow Works
Clean, filtered air enters the booth through a ceiling-mounted intake plenum located above the working chamber.
Air then travels vertically downward around the product before being pulled through floor-level exhaust filters and into the exhaust pit beneath the booth.
The airflow path is:
Filtered Intake Air -> Ceiling Plenum -> Downward Across the Product -> Floor Filters -> Exhaust Pit -> Exhaust System
This vertical airflow pattern helps move overspray downward and away from the product while reducing the opportunity for airborne contaminants to circulate throughout the working area.
Paintbooth.com offers a comprehensive range of large equipment paint booth models engineered for large-scale industrial finishing applications across Rail, Aerospace, Marine, RV, Trucking and transportation, manufacturing and heavy equipment markets. These systems are designed to accommodate demanding production environments while providing controlled airflow, efficient overspray capture, and a safer, cleaner finishing workspace.

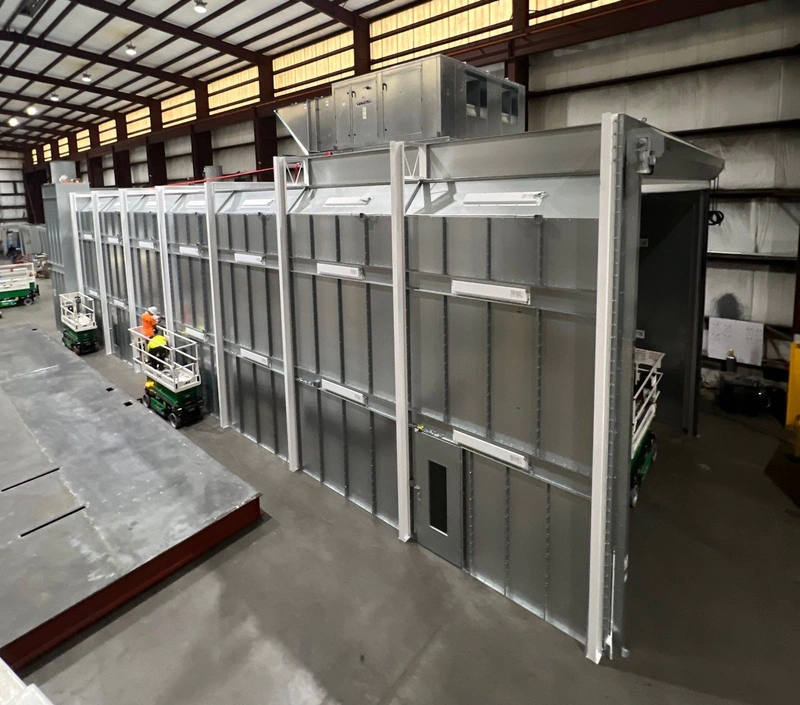

Standard Features of Our Full Downdraft Paint Booths
Booth Construction
- Galvanized steel construction: Booths use 18-gauge galvanized-steel panels for the enclosure.
- CNC-punched components: Panels and structural supports are CNC-punched for accurate alignment and straightforward nut-and-bolt assembly.
- Structural framing: Beams and columns are fabricated from formed 10-gauge galvanized steel.
- Optional structural beams: Structural I-beams such as W8×13 can be used with welded, formed-steel attachments.
- Support spacing: Structural supports are positioned at maximum 10-foot centers to increase booth rigidity and stability.
Product and Personnel Doors
- Adjustable installation: Product doors are field-hung on slotted hinges, allowing adjustment in two axes to accommodate uneven floors.
- Personnel access: A standard 36-inch-wide personnel door includes an observation window and is installed in a pre-assembled heavy-duty frame.
Booth Lighting
- Hazardous-location rating: Fixtures are rated for Class I, Division 2, Groups A, B, C, D and Class II, Division 2, Groups F and G applications.
- ETL listing: Fixtures are ETL listed and approved for their intended application and installation location.
- LED technology: Lighting uses high-efficiency LED T-8 Glass Free Tubes.
- Service life: Rated for up to 50,000 hours, significantly longer than conventional fluorescent lamps.
- Performance: Instant-on operation at full brightness with no flicker or buzzing.
- Power flexibility: Fixtures can operate on either 120 VAC or 277 VAC.

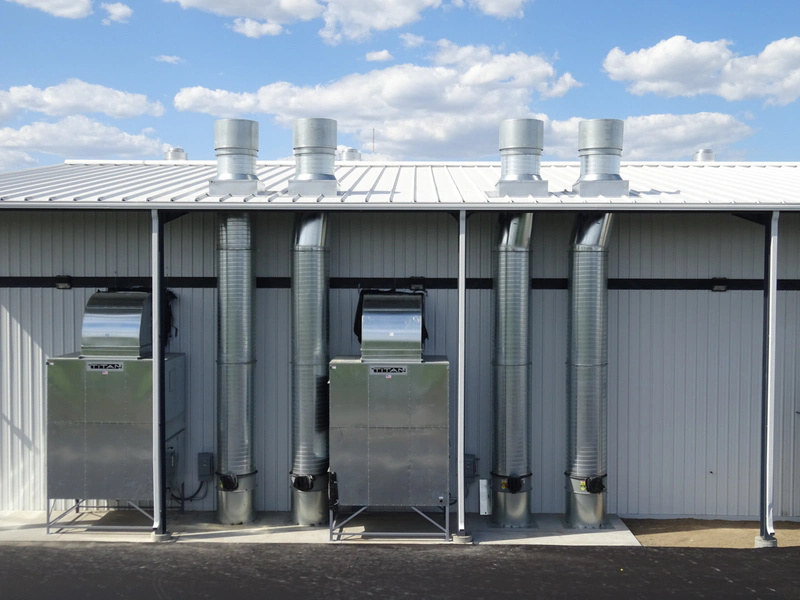

Fans and Motors
Uses U.S.-manufactured, brand-name tube-axial fans and motors for booth ventilation and exhaust applications.
Air Solenoid Valve
The air solenoid valve is interlocked with the exhaust fan and spray-equipment air supply, helping ensure that the appropriate ventilation conditions are established during spray operations.
Performance and Compliance
- Booth performance is designed to meet or exceed applicable OSHA and NFPA requirements.
- ETL-listed control panels are available as an option on many booth configurations.
Paint Booth CFM Calculator
Width × length airflow estimate
- Width × length area
- —
- Downward velocity
- —
- Calculation
- —
Important: This calculator provides a preliminary airflow estimate. Final booth airflow must account for booth type, applicable codes, coating hazards, filter loading, duct losses, fan static pressure, and approval requirements. Please contact us today 1-833-552-6684
Select Your Equipment Type :

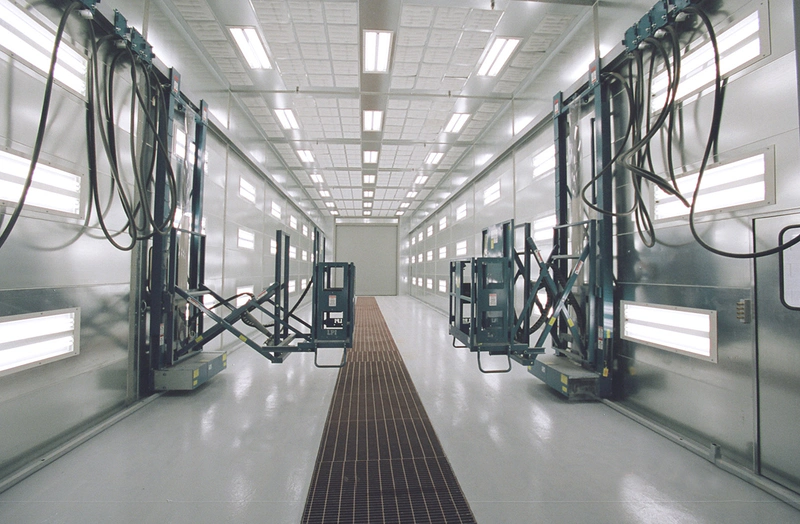

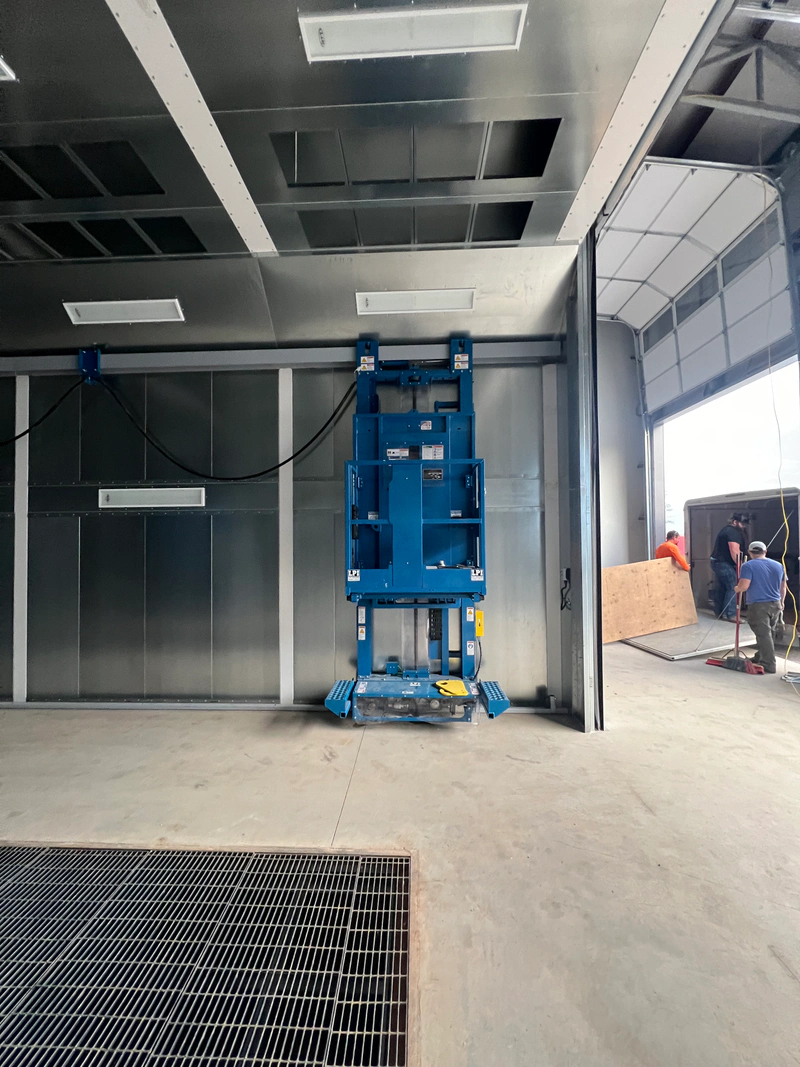

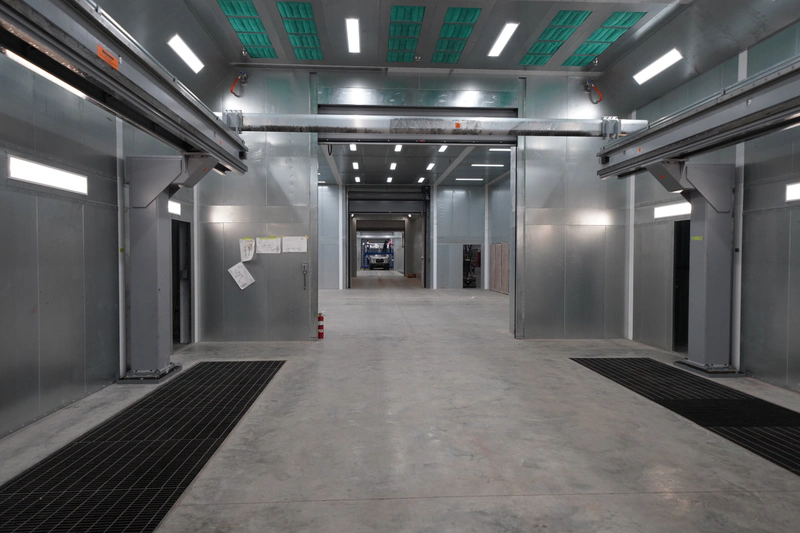

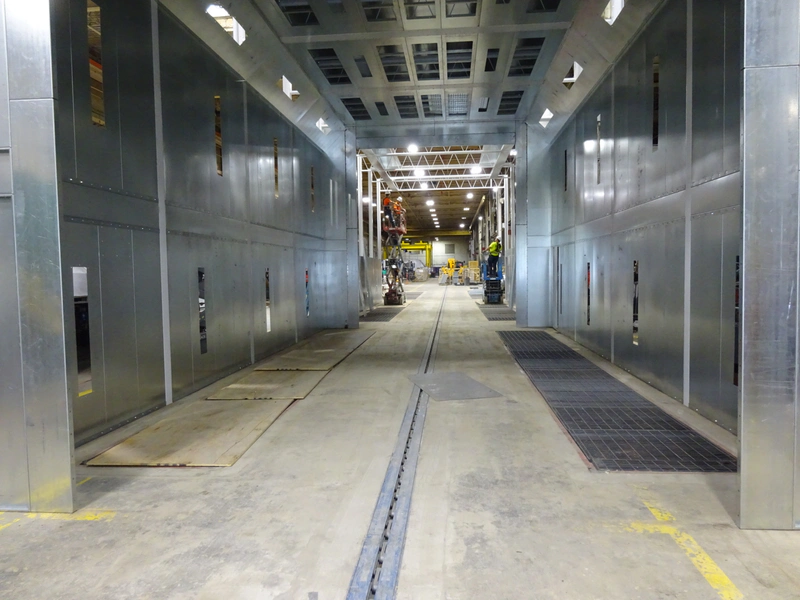

Pit Downdraft: Emphasizing airflow consistency, contamination control, and finish quality:
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the booth toward a filtered exhaust pit in the floor.
- Overspray and contamination control: Downdraft airflow helps capture overspray and airborne contaminants, reducing the risk of particles settling on the painted surface.
- Consistent air velocity: The intake and exhaust filter arrangement is engineered to provide relatively uniform airflow throughout the work area, which is important for achieving a consistent paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, creating a cleaner painting environment.
- Pressurized booth: Air can be supplied directly from an air makeup unit (AMU) or intake fan into the intake plenum, minimizing the introduction of contaminated shop air.
- Maximized filtration: The booth uses a high quantity of intake and exhaust filters to improve particulate filtration and maintain efficient airflow.
- Primary benefit: The overall system is designed to provide a cleaner, more controlled painting environment and a higher-quality finish while effectively managing overspray.

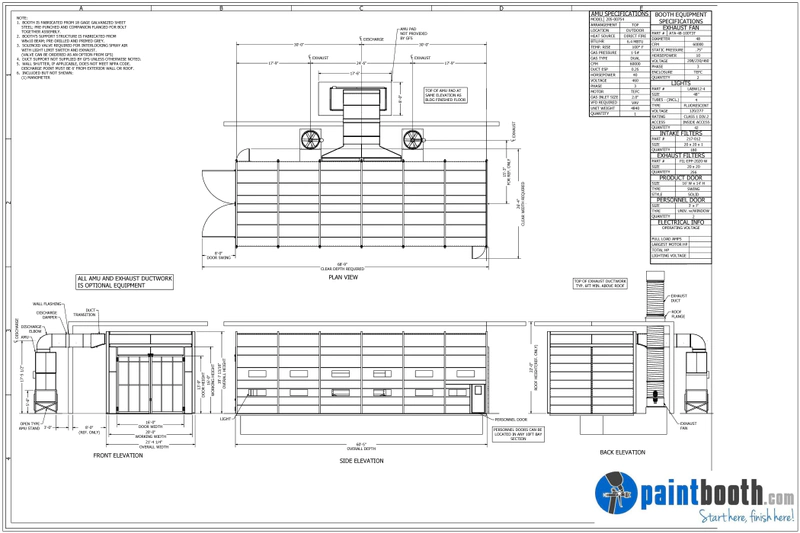

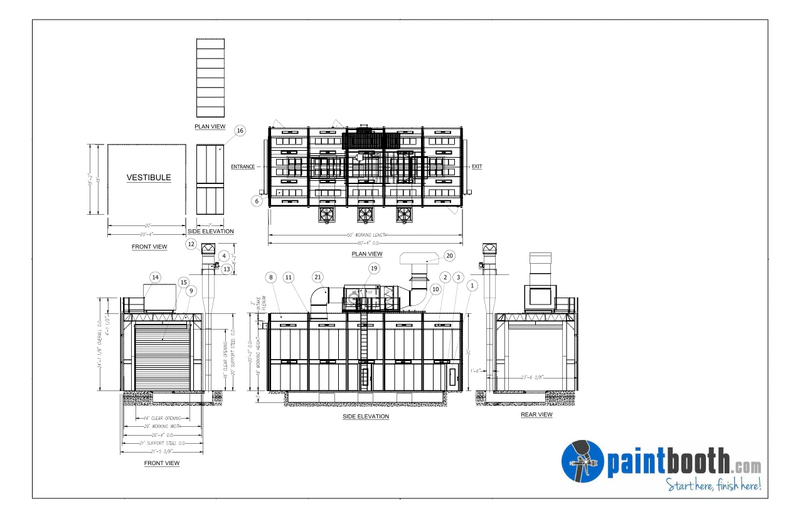

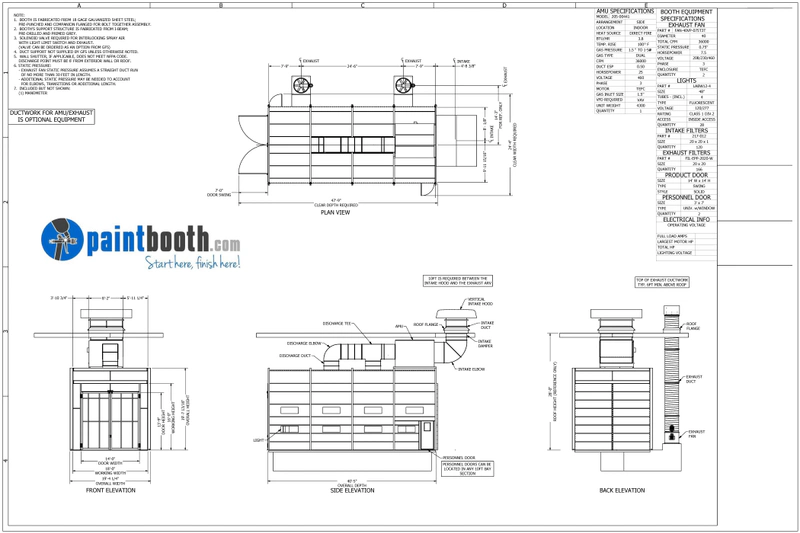

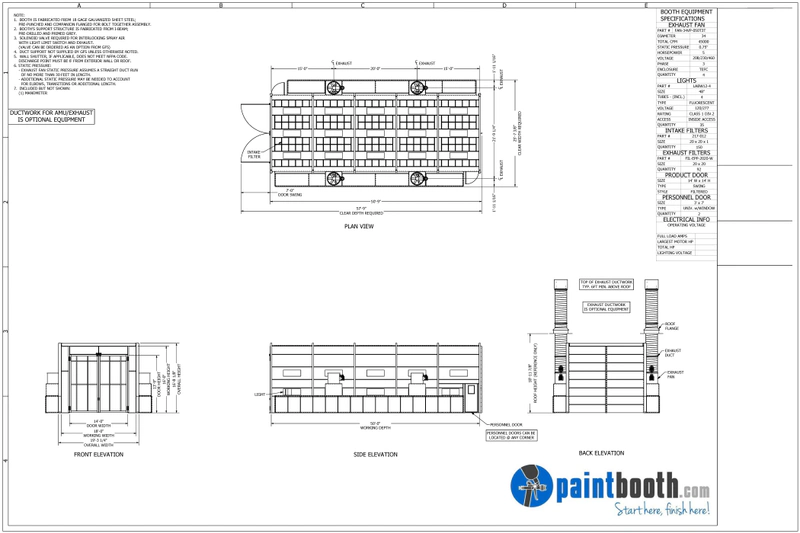

Example Drawings
FAQs

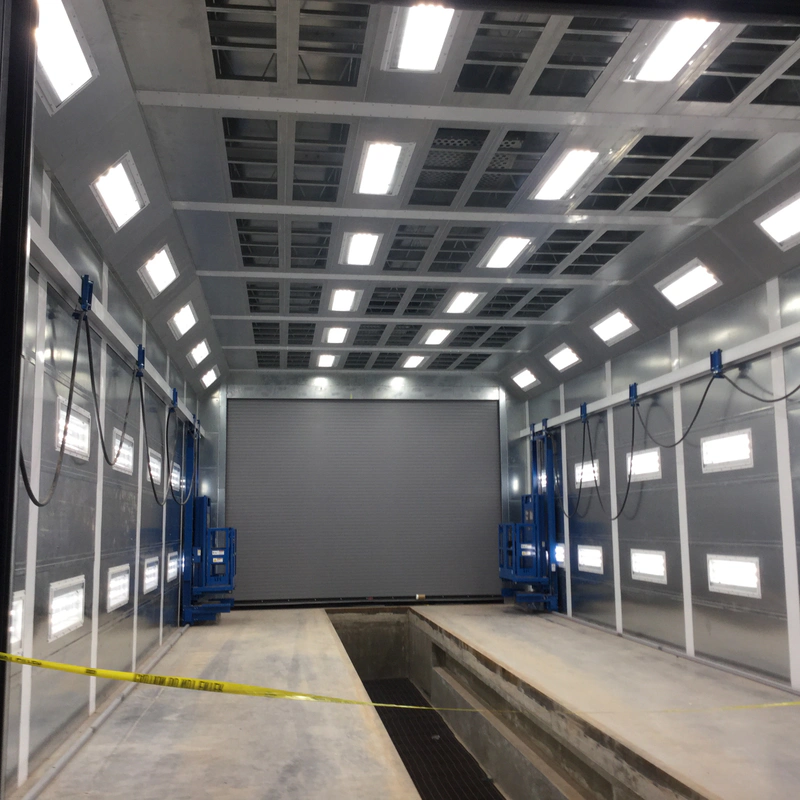

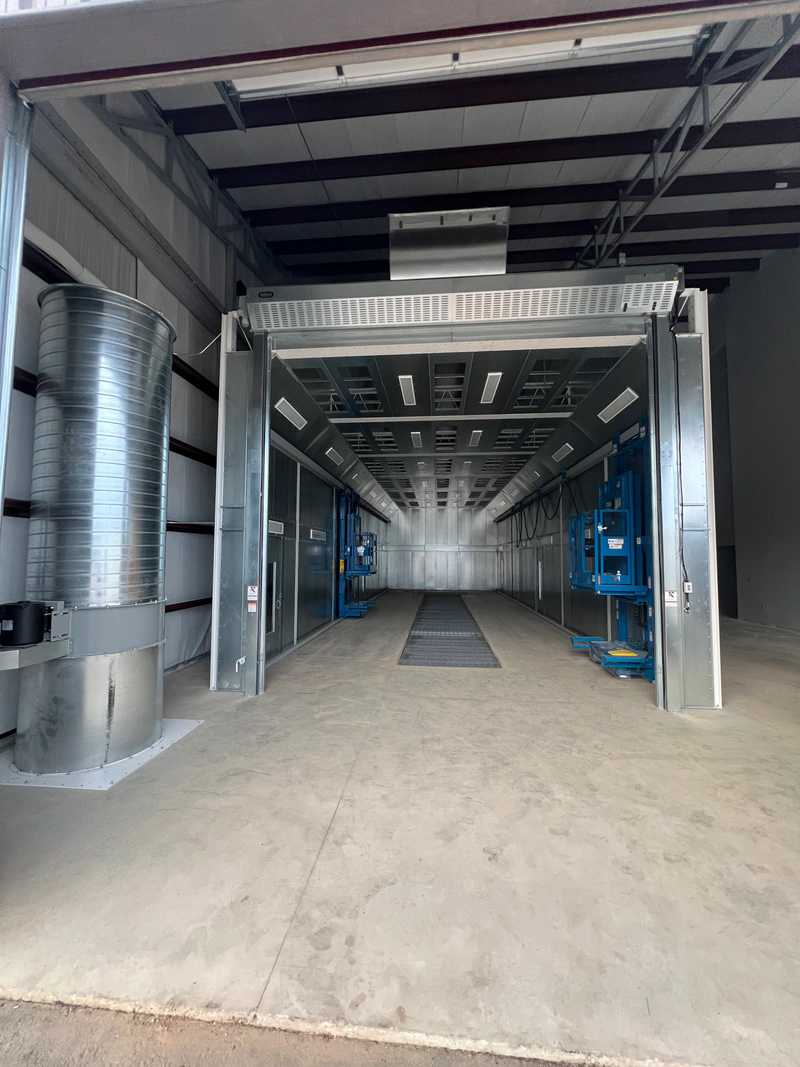

How does a Full (Pit) Downdraft truck paint booth work?
A full downdraft truck paint booth supplies filtered air through the entire ceiling of the booth and directs it vertically over the vehicle. Overspray and airborne contaminants are pulled downward through floor grating into filtered exhaust pits. This airflow moves contamination away from freshly painted surfaces and provides excellent airflow and control throughout the booth.
Why is Full Downdraft airflow recommended for truck painting?
Full downdraft airflow provides consistent top-to-bottom air movement around semitrucks, buses, RVs, Rail Cars, Locomotives, Marin, Modular Buildings, Data Center Generators trailers and heavy equipment. Pulling overspray directly toward the floor reduces the chance of contaminants traveling across other painted surfaces. This makes full downdraft booths an excellent choice when finish quality is a priority.
Does a Full Downdraft truck paint booth require an exhaust pit?
Yes. A traditional full downdraft booth requires one or more engineered exhaust pits beneath the booth floor. The pit must be coordinated with the building foundation, underground conditions and exhaust system. Pit layout, structural requirements and drainage considerations should be addressed before the concrete floor is poured. They can also be cut into an existing floor. This option is more expensive that when the building is first being constructed.
How do you maintain consistent airflow in a Full Downdraft booth?
Ceiling intake filters and pit exhaust filters must be inspected and replaced regularly. Loaded filters can reduce airflow, change booth pressure and affect finish quality. An automatic balancing system with variable-frequency-drive controls can adjust exhaust airflow as filters load, helping maintain consistent booth performance. We provide an auto balance system with every heated booth. It is an option on non-heated booths as well.
