Truck & Large Equipment Paint Booths
Paintbooth.com offers a comprehensive range of large equipment paint booth models engineered for large-scale industrial finishing applications across Rail, Aviation, Marine, RV, Trucking and transportation, and heavy equipment markets. These systems are designed to accommodate demanding production environments while providing controlled airflow, efficient overspray capture, and a safer, cleaner finishing workspace.
Key considerations when selecting a Truck or Large-Equipment Paint Booth:
- What is the Largest item to be painted: Determine the maximum size of the truck, vehicle, or equipment that will enter the booth. A common planning guideline is to allow minimum 3 feet of clear space around the item for safe access and effective airflow.
- Airflow style: Select the airflow configuration that best matches the finishing requirements and the physical limitations of the facility. Common options include Crossdraft, Semi-Downdraft, Downdraft, and Side-Downdraft systems.
- Building compatibility: Consider the available building footprint, ceiling height, exhaust requirements, and installation conditions when selecting the booth configuration.
- Drive-through vs. solid-back design: A drive-through booth can improve vehicle movement and production flow, while a solid-back configuration may be more appropriate where space or workflow favors a fixed entry/exit arrangement.
- Heated vs. non-heated: Determine whether the application requires a heated booth or curing capability. Heating can improve paint application and accelerate drying or curing.
- Heater location: For a heated system, identify where the Air Make-Up Unit (AMU) or heater can be located while accommodating building layout, ventilation, fuel, and service requirements.
- Electrical requirements: Establish whether the facility will provide single-phase or three-phase power, since electrical requirements can vary depending on the booth's fans, AMU, lighting, doors, heaters, and controls.
- Overall goal: The best booth is determined not simply by the vehicle size, but by the combination of workpiece dimensions, airflow requirements, building constraints, production workflow, heating needs, and available utilities.
Select Your Equipment Type :
Size and configuration: Systems are available in both standard prefabricated and custom configurations, with a wide range of sizes.
Available options: Truck & Large Equipment Paint Booths can be customized with:
- Heated Air Make-Up Units (AMUs)
- Temperature-controlled AMUs
- Powder Coated Finish
- Roll-up doors
- Drive-through configurations
- Three-stage filtration

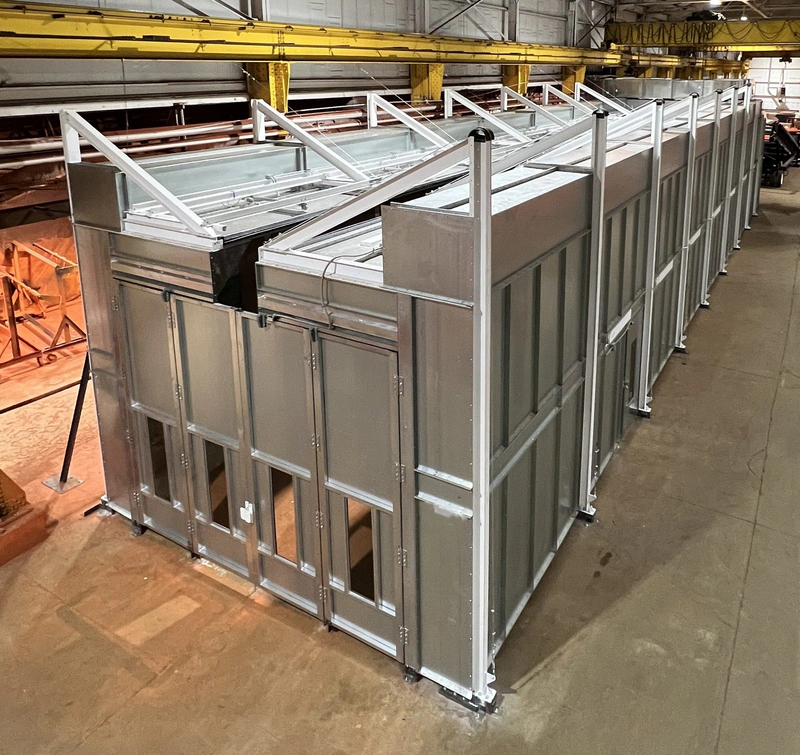

- Conveyors or Crane Slots
- Monorails Inside the Booth
Overall value: The offering is positioned as a flexible, application-specific finishing solution, allowing the booth's airflow, filtration, access, heating, and configuration to be tailored to the customer's production requirements.

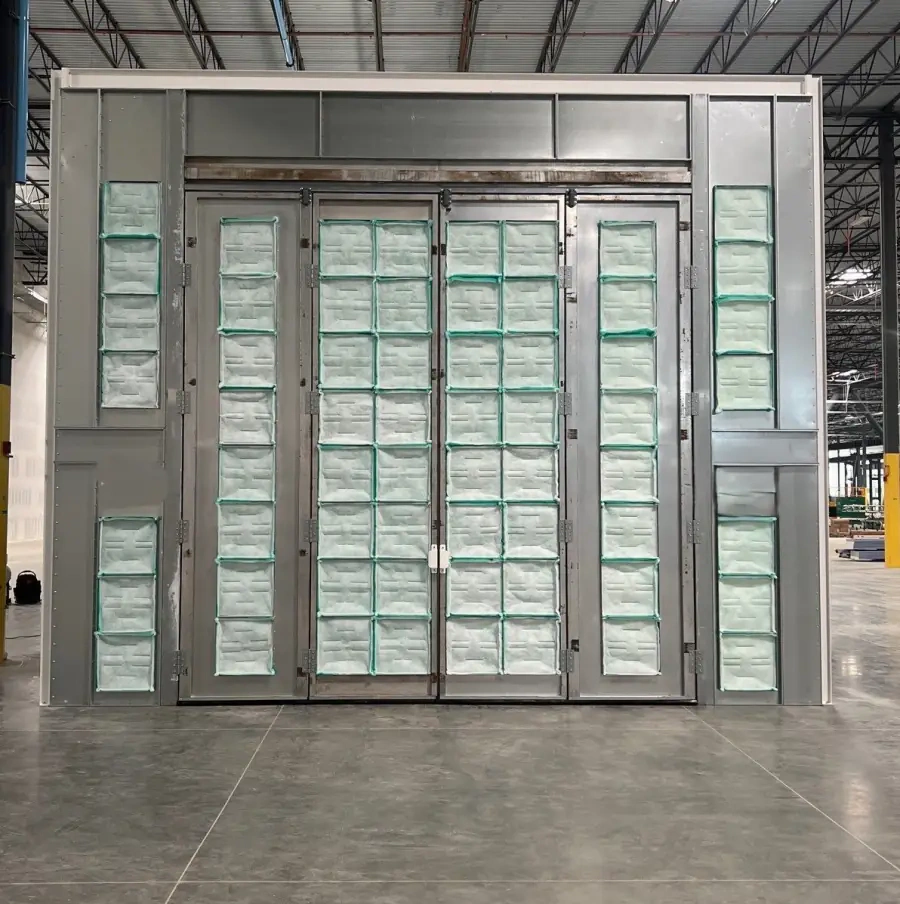

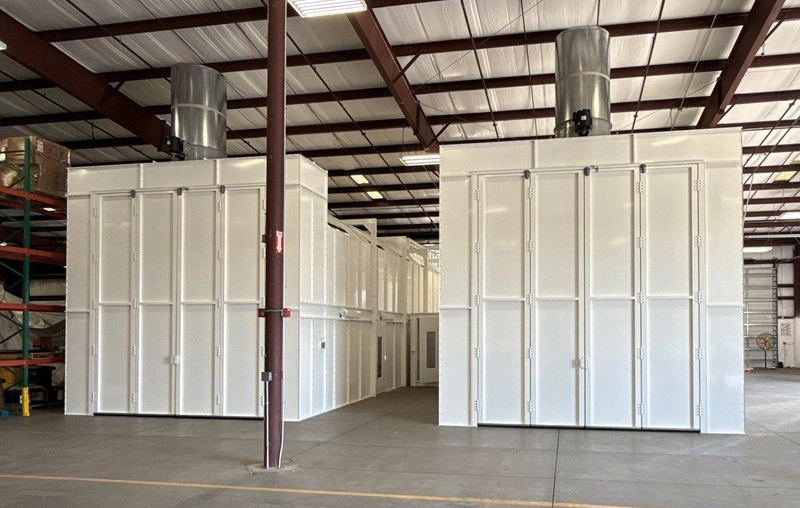

Crossdraft: Emphasizes simplicity, cost-effectiveness, consistent airflow, and contamination control:
- Cost-effective design: A straightforward configuration that provides effective airflow and filtration without the complexity of a downdraft system.

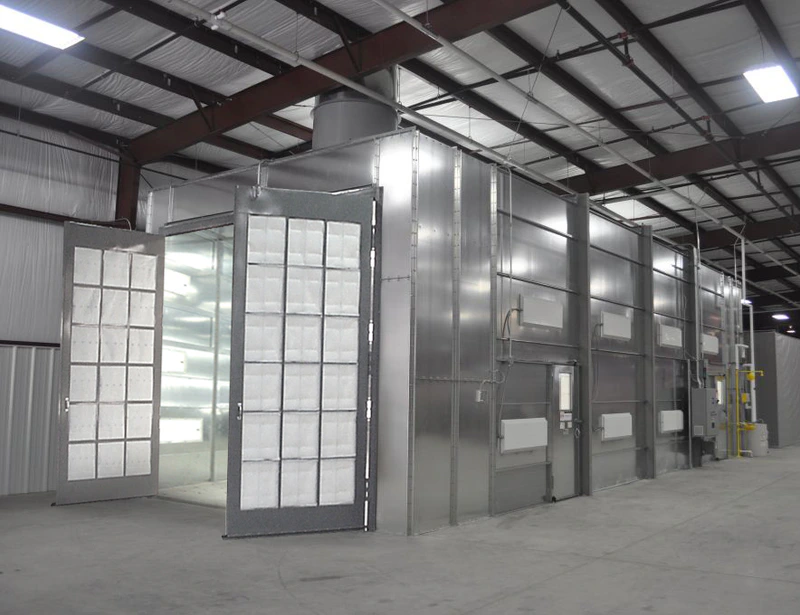

- Airflow direction: Clean air enters through an intake plenum or filtered doors at the front of the booth and moves horizontally through the working area before being exhausted through a rear plenum.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively uniform airflow throughout the booth, supporting a consistent, high-quality paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping maintain a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, reducing the possibility of contaminated shop air entering the booth.
- Filtration capacity: The system is designed with a maximized number of intake and exhaust filters to promote effective particulate filtration.
- Primary benefit: Provides a simple, economical, and controlled painting environment with consistent horizontal airflow and effective contaminant management.

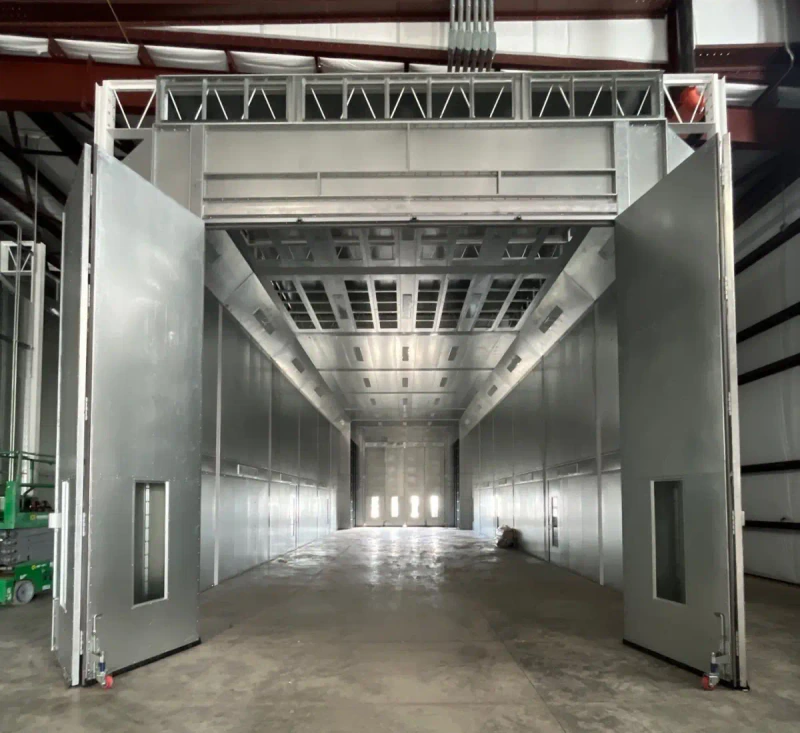

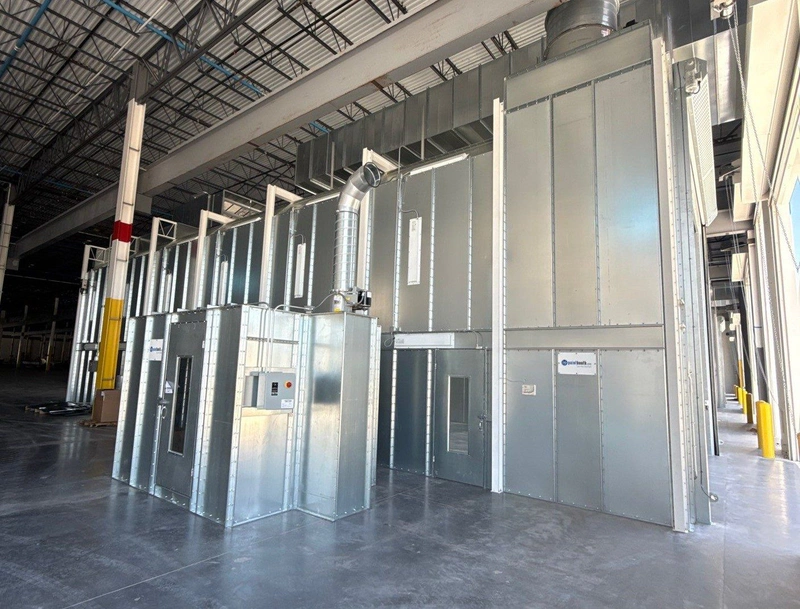

Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.

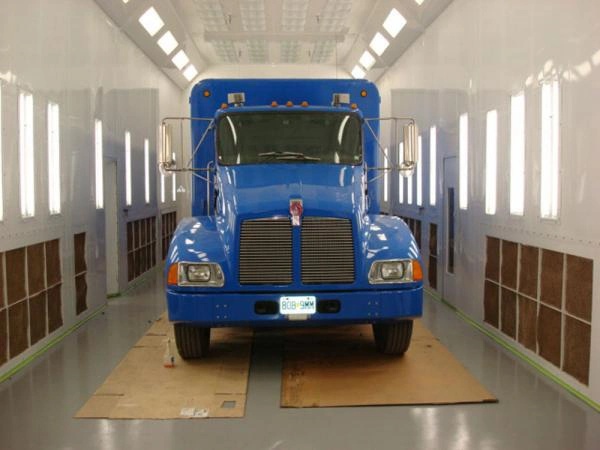

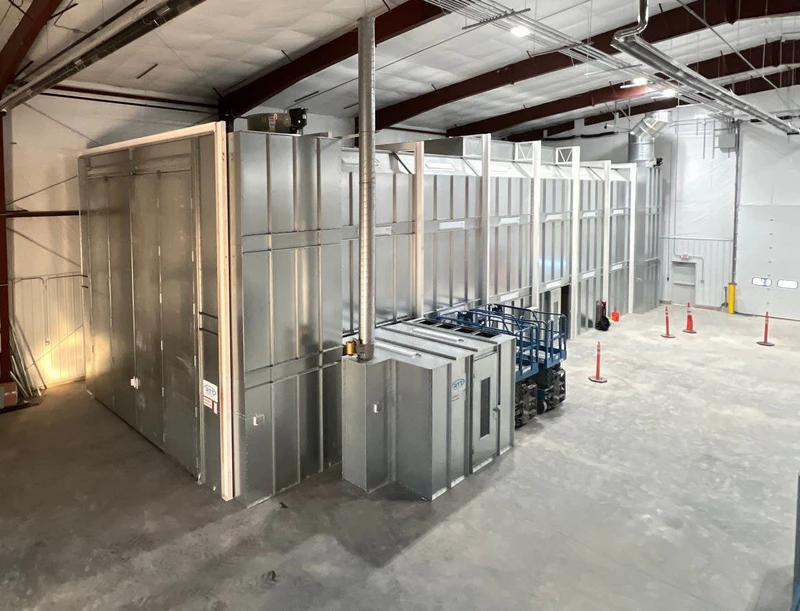

Side Downdraft: Provides many of the airflow benefits of a traditional downdraft booth without requiring a floor pit:
- Economical installation: Designed for shops that cannot or do not want to install a below-floor exhaust pit, reducing installation cost and complexity.
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the working area.
- Side exhaust: Instead of exhausting through a floor pit, contaminated air is drawn into filter chambers along both side walls that extend the length of the booth.
- Consistent air velocity: The intake and side-exhaust filter arrangement is designed to provide even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping create a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, minimizing the introduction of potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides downdraft-style vertical airflow and contamination control without the expense and construction requirements of a floor pit, making it a practical option for many existing shops.

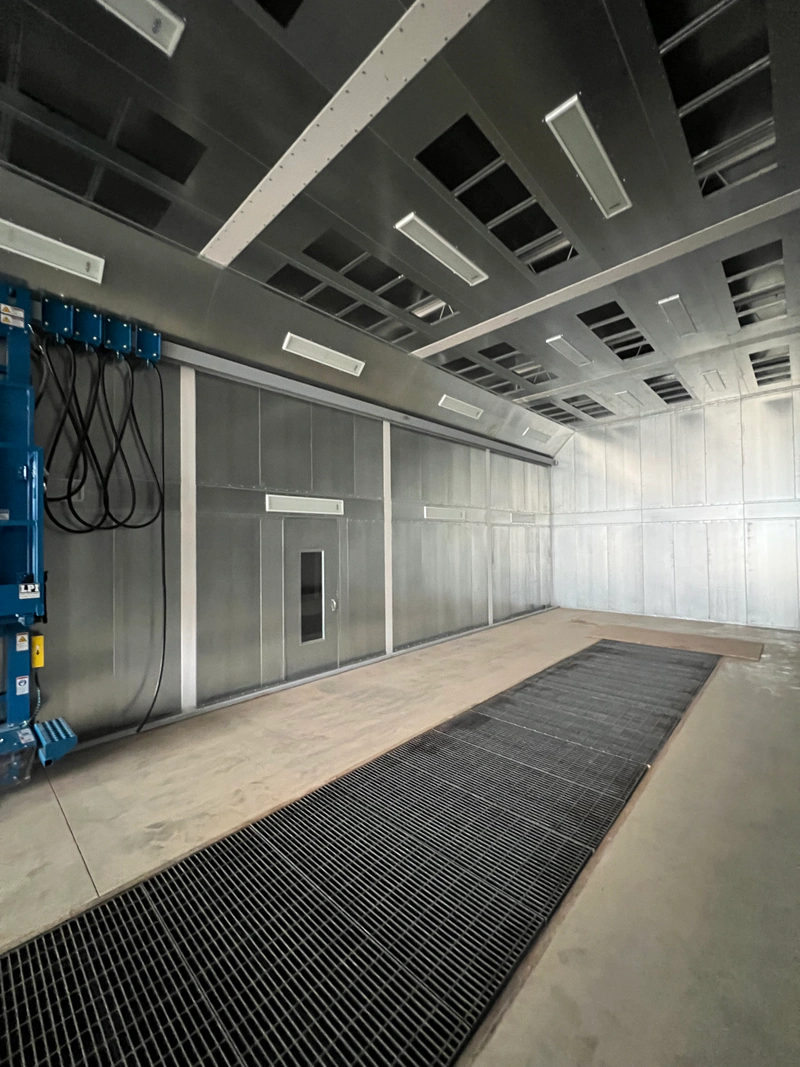

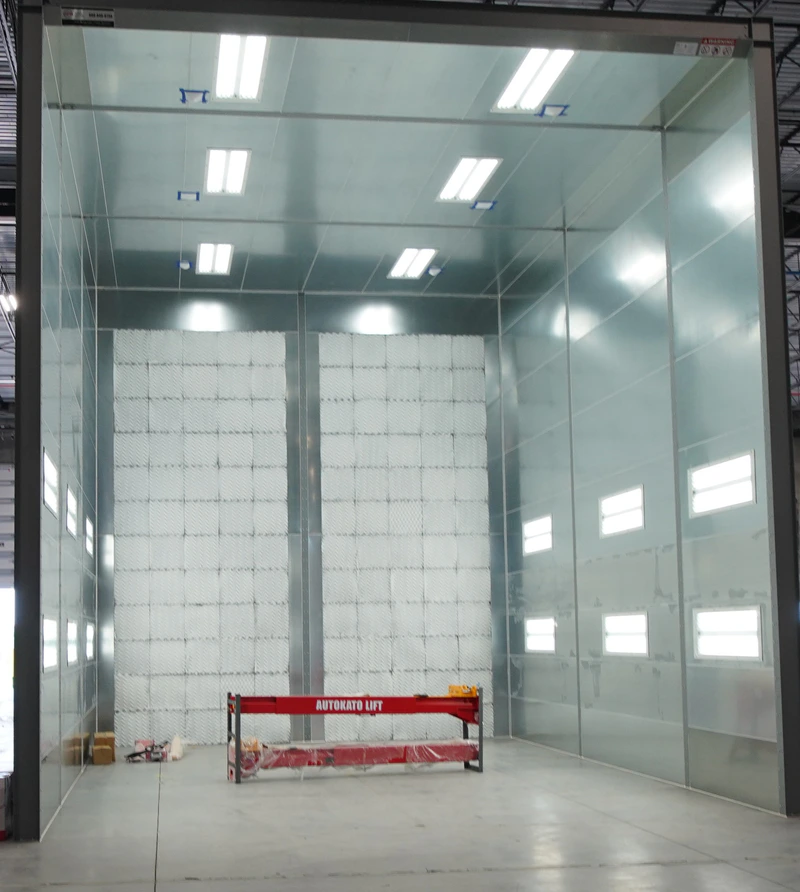

Pit Downdraft: Emphasizing airflow consistency, contamination control, and finish quality:
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the booth toward a filtered exhaust pit in the floor.
- Overspray and contamination control: Downdraft airflow helps capture overspray and airborne contaminants, reducing the risk of particles settling on the painted surface.
- Consistent air velocity: The intake and exhaust filter arrangement is engineered to provide relatively uniform airflow throughout the work area, which is important for achieving a consistent paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, creating a cleaner painting environment.
- Pressurized booth: Air can be supplied directly from an air makeup unit (AMU) or intake fan into the intake plenum, minimizing the introduction of contaminated shop air.
- Maximized filtration: The booth uses a high quantity of intake and exhaust filters to improve particulate filtration and maintain efficient airflow.
- Primary benefit: The overall system is designed to provide a cleaner, more controlled painting environment and a higher-quality finish while effectively managing overspray.
Our factory trained installation crew can get your new Nova Paint Booth installed correctly and quickly.
This is our specialty! You can rest assured that your new equipment will be operational in no time.
