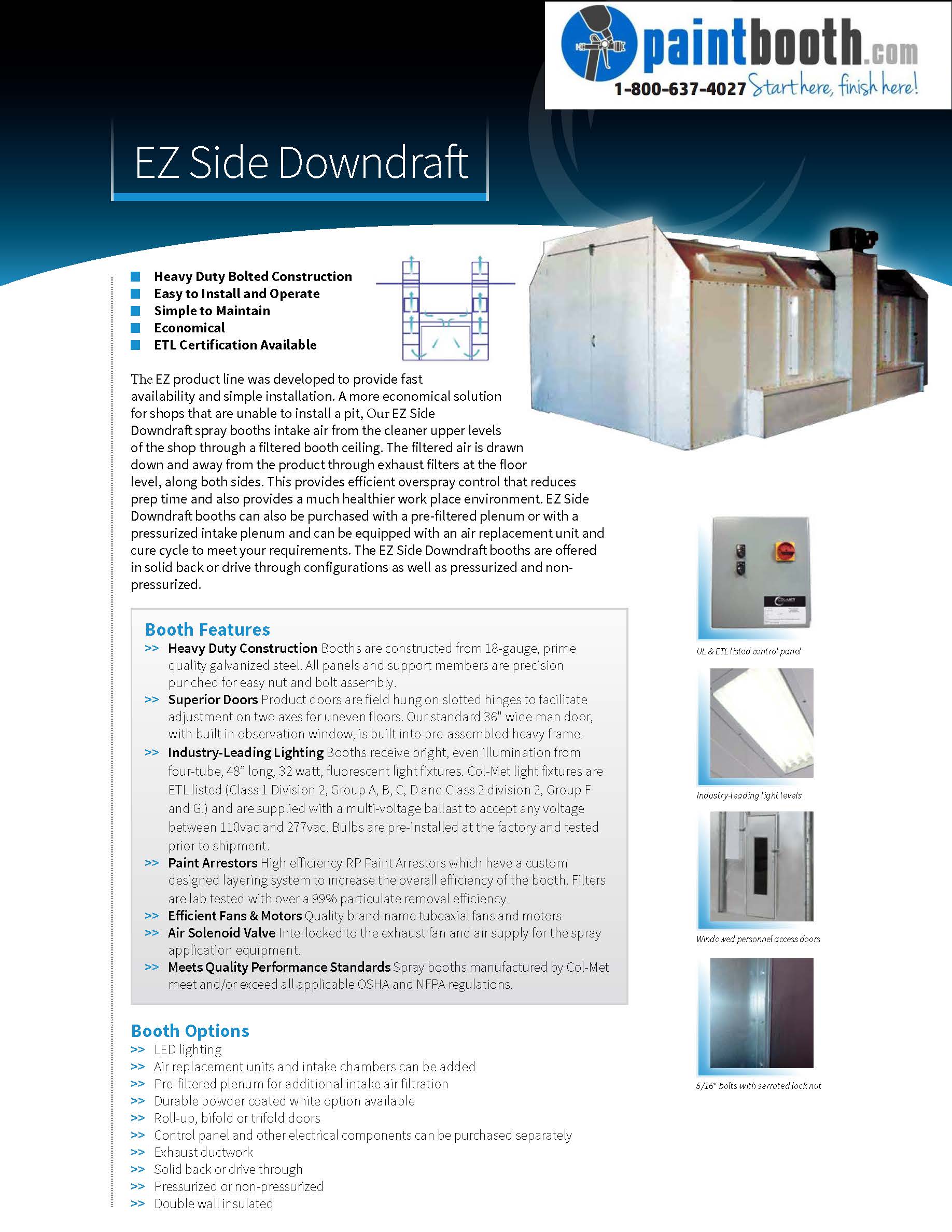

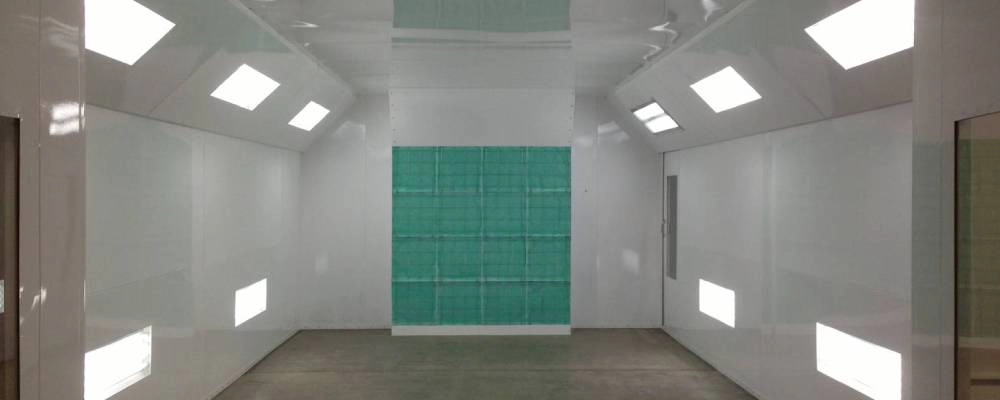

Side Down Draft Paint Booths

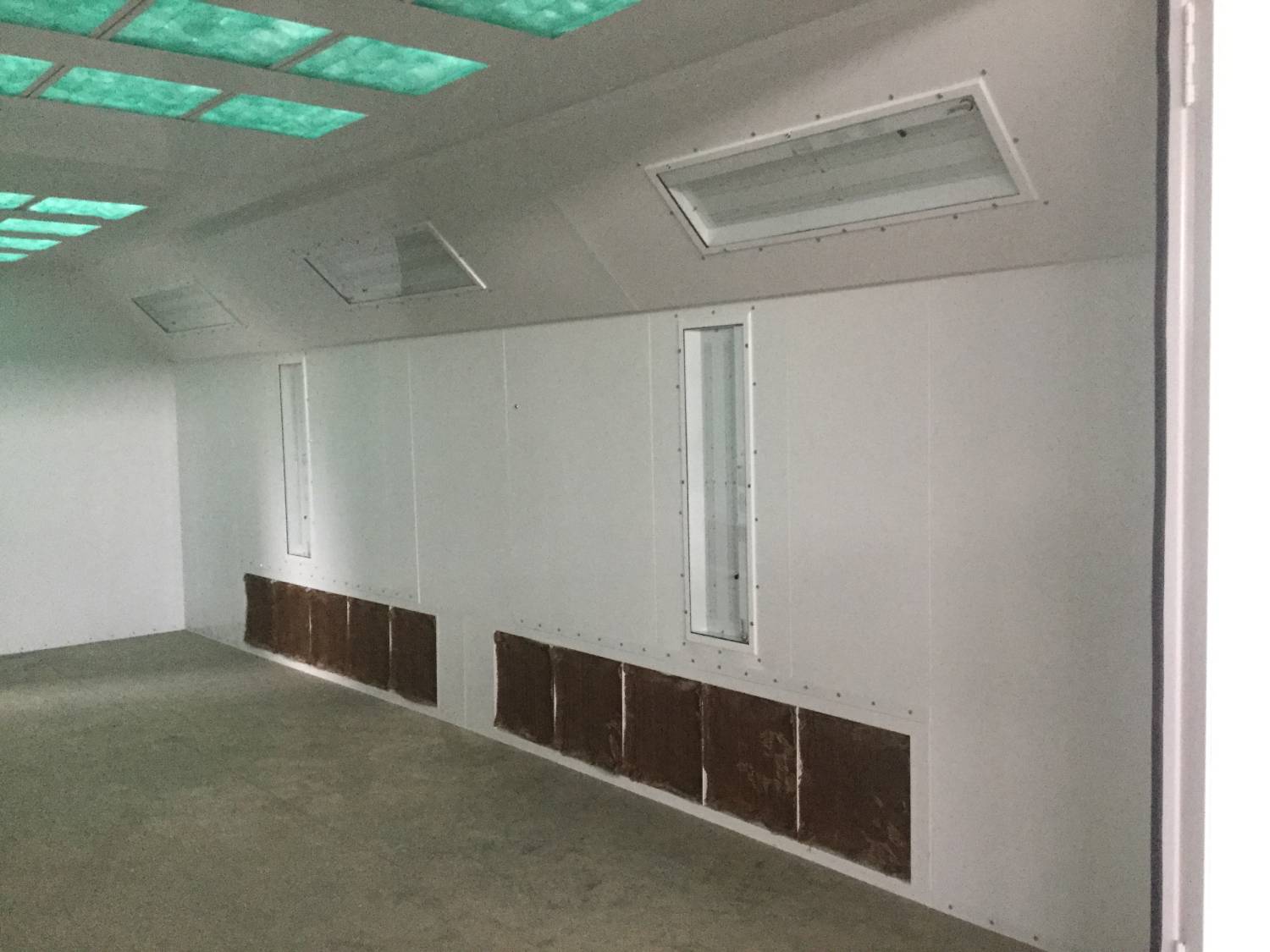

A side downdraft paint booth is a perfect solution for shops that cannot install a pit. This model is designed to efficiently draw filtered ceiling air down through the booth, supplying the inside with clean air. Instead of drawing the air into a pit in the floor, filtered air is drawn down the walls of the booth on both sides. Each side wall of the booth contains an exhaust fan and a filter bank to capture the overspray. With this design the air flows evenly to each side of the cabin.

Our side downdraft spray booth line is offered in a several standard sizes and configurations, which include pressurized, non-pressurized, solid back, reverse flow and drive thru designs.

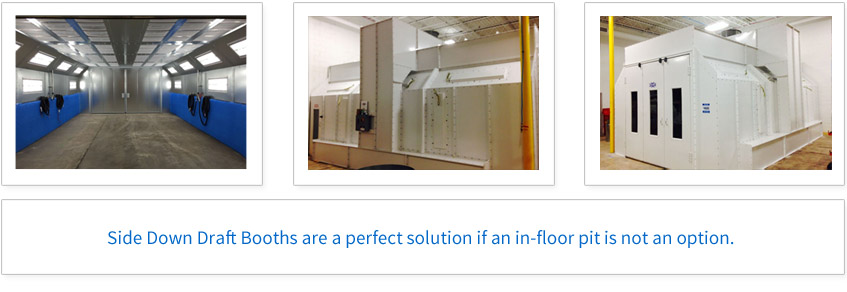

Side Down Draft Booths are a perfect solution if an in-floor pit is not an option.

    Request a Free Quote








    Standard Features

    • Construction Booths are constructed from 18-gauge, quality galvanized steel. All supports and panels are CNC punched for easy nut and bolt assembly.
    • Product doors are field hung on slotted hinges to aid in adjustment on two axes for uneven floors. Our standard 36″ wide personnel door has an observation window and is set into pre-assembled heavy duty frame.
    • Booth Lighting comes standard with 4-tube, 48″ long, 32-watt, fluorescent light fixtures. They are ETL listed (Class 1 Division 2) Inside Access and are supplied with multi voltage ballasts to accept any voltage between 120V and 277V power.
    • Fans & Motors are quality U.S. made brand-name tube-axial fans and motors.
    • Air Solenoid Valve Interlocked to the exhaust fan and air supply for the spray application equipment.
    • Performance Standards meet or exceed all applicable OSHA and NFPA regulations.
    • ETL-Listed control panels are options on many of our booths.

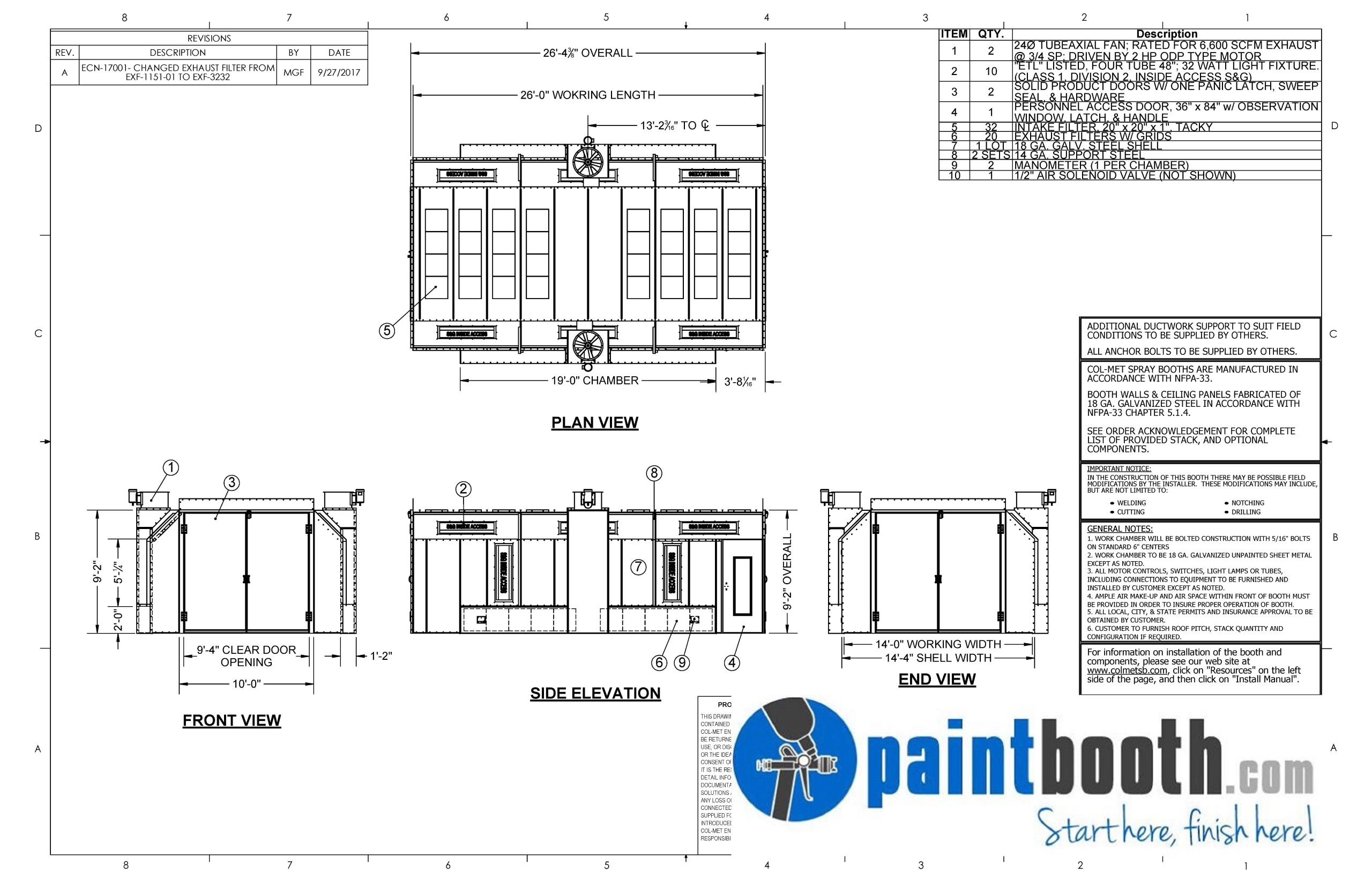

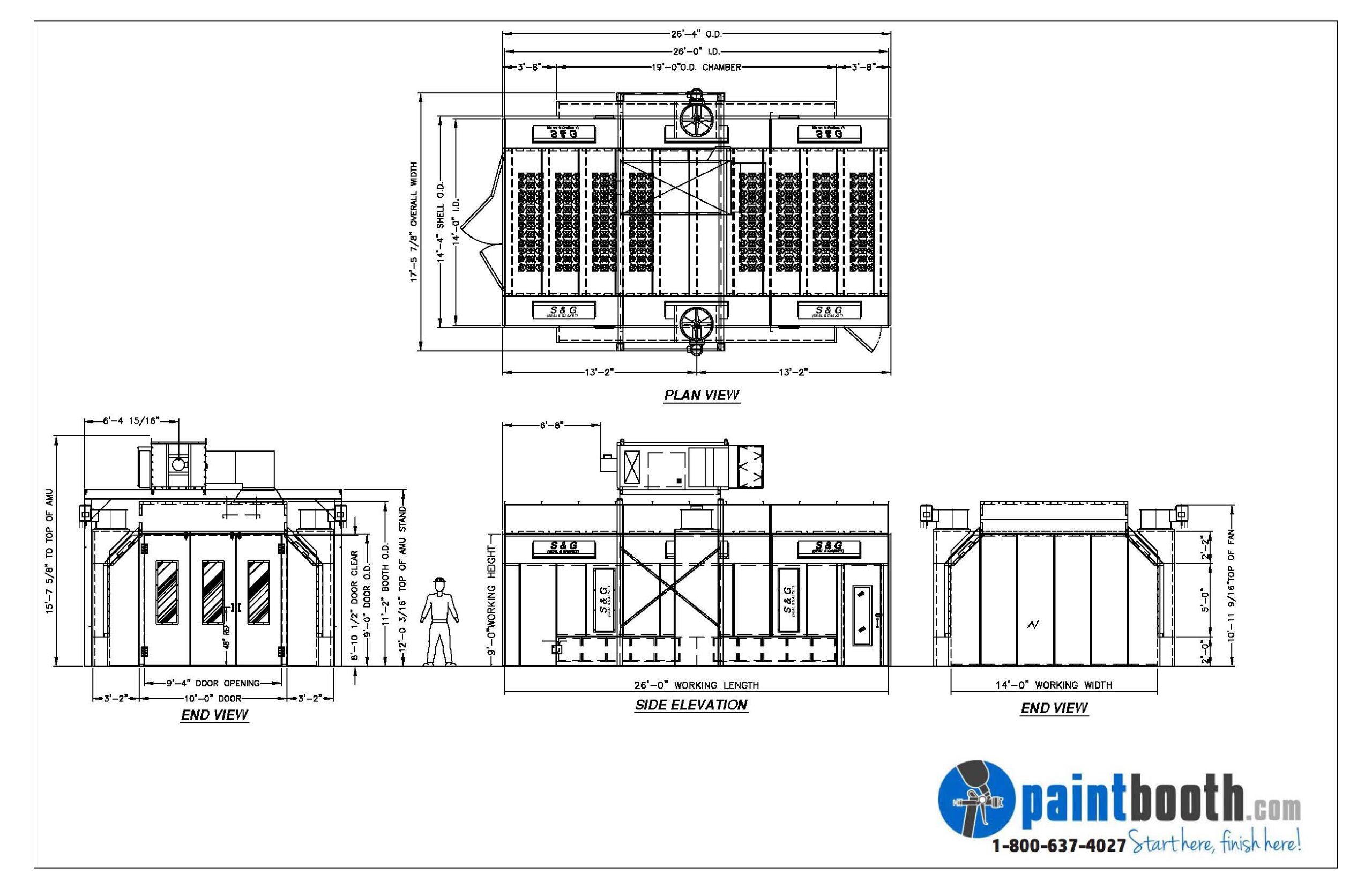

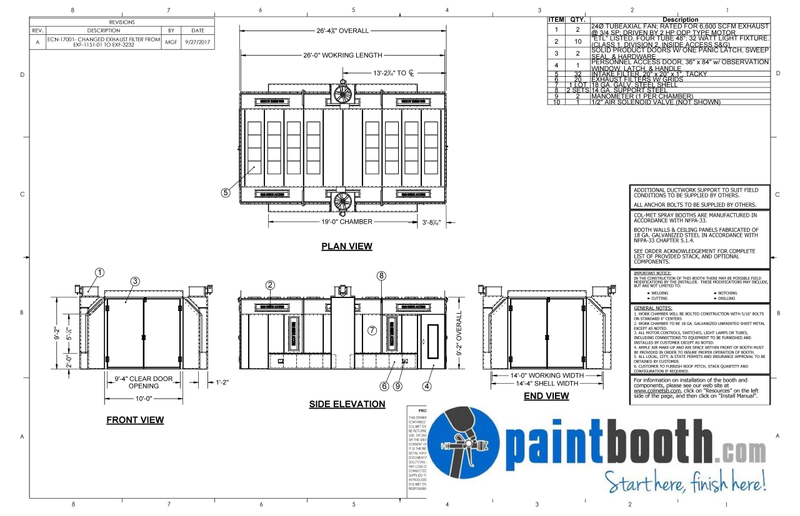

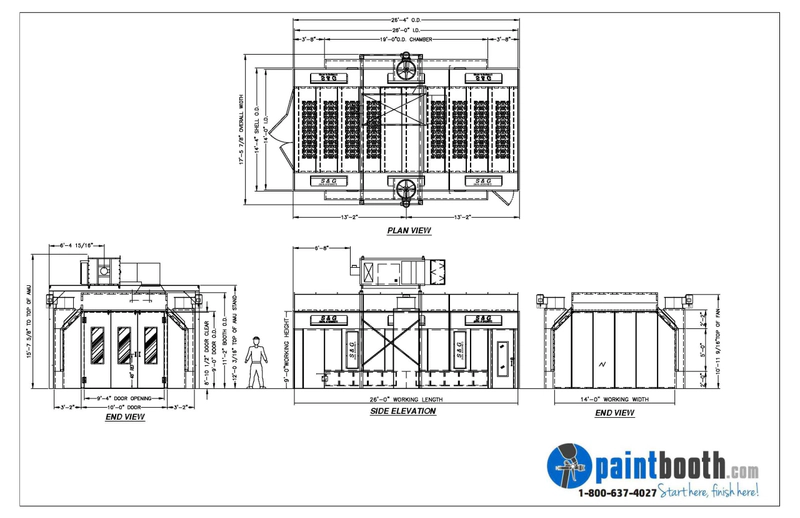

    Example Side Downdraft Paint Booth Drawings – click image to enlarge drawings

    Automotive Side Down Draft Paint Booth

    Our factory trained installation crew can get your new Side Downdraft Paint Booth installed correctly and quickly.

    This our specialty! You can rest assured that your new equipment will be operational in no time.



    Need more information about Paint Booths?

    Request a Quote

    If you need help or have any questions you can always call 800-637-4027

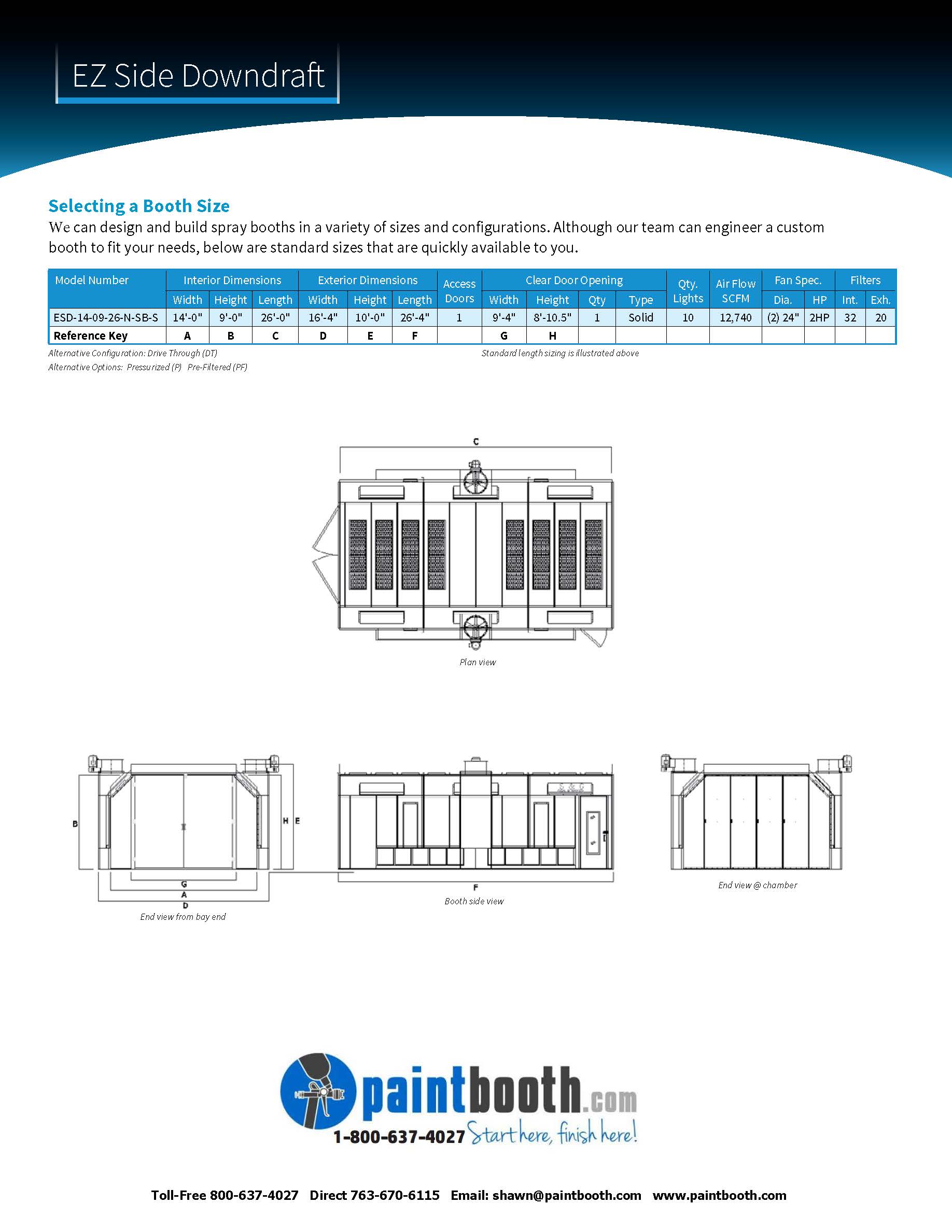

    The sizes listed below are standard catalog sizes. We can custom build all of our finishing equipment to meet your needs. Call us at 800-637-4027.

    Full Downdraft Sizes

    Side Down Draft Airflow

    This booth intakes fresh air from the filtered front doors it. The air is pulled across the parts being painted to the exhaust filter bank located at th e rear of the booth. The air is then filtered  and exhausted in through the duct work.

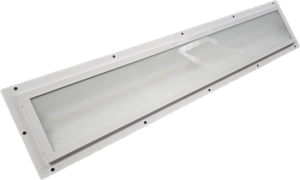

    One of the most important details not to be overlooked in a paint booth is the lighting. Our booths feature industry superior lighting with four-tube, 48″ long, 32-watt, fluorescent light fixtures. They are ETL listed (Class 1 Division 2) inside access and are supplied with multi-voltage ballasts to accept any voltage between 120V and 277V power. Bulbs are included.

    Cross Draft Lighting

    LED light fixtures are an option that can be easily integrated into any existing spray booth or fixture. To find out more about LED light fixtures, please click here. PBL LED page

    Options



    • Powder coated white inside & out

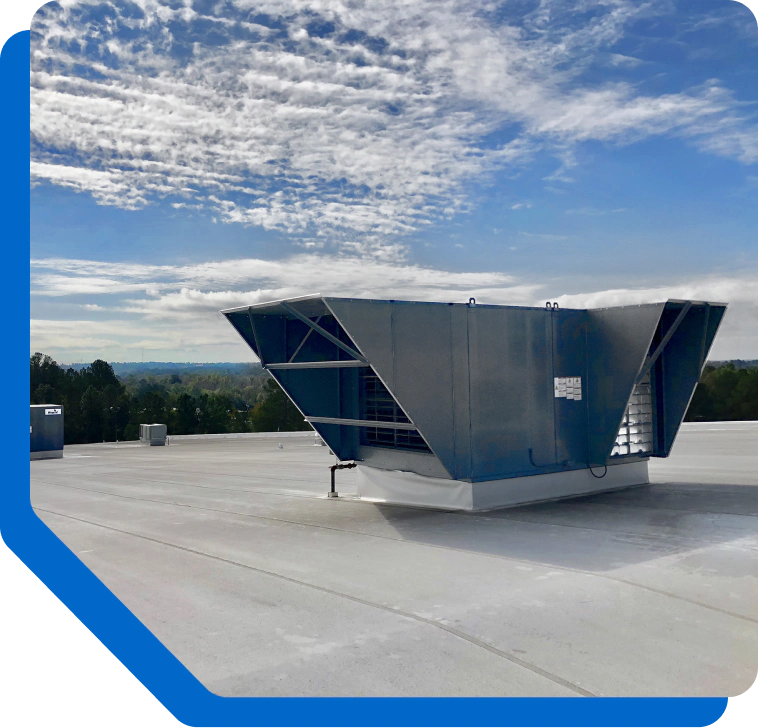

    • Heated air replacement units
    • Bi-fold, tri fold or roll up doors are available
    • Control panel to operate the booth & connect other electrical options
    • LED light fixtures
    • Exhaust and intake ductwork
    • Solid back or drive thru designs
    • Pressurized or non-pressurized
    • 2” Double wall insulated

    Our products meet and/or exceed all applicable OSHA and NFPA regulations. They are also ETL- Listed with purchase of optional control panel or heated air make up unit, which comes standard with a control panel.
