Paint Booths
Choosing the Right Paint Booth for Your Application
Paint booths are used across a wide range of industrial, manufacturing, automotive, aerospace, marine, transportation, and large-equipment finishing applications. But not every paint booth is designed for the same purpose.
Choosing the right system starts with understanding what you're painting, how often you're painting it, the coating being applied, required finish quality, product size, production goals, facility conditions, and available space.
You should also consider whether your application requires an open-face or fully enclosed booth, filtered intake air, an Air Make-Up Unit, heating, temperature and humidity control, forced-air drying, or other specialized equipment.
Airflow configuration is another important consideration. Depending on the application, Paintbooth.com offers Crossdraft, Semi-Downdraft, Side Downdraft, and Full Downdraft Paint Booths, along with Open-Front Booths, Bench Booths, Industrial Exhaust Chambers, and fully Custom Industrial Paint Booths.
There isn't one paint booth that's right for every application. The right booth is the one designed around your product, process, facility, and production requirements.
Not sure where to start? Call 1-833-55-BOOTH (833-552-6684) and talk with a Finishing Systems Specialist.

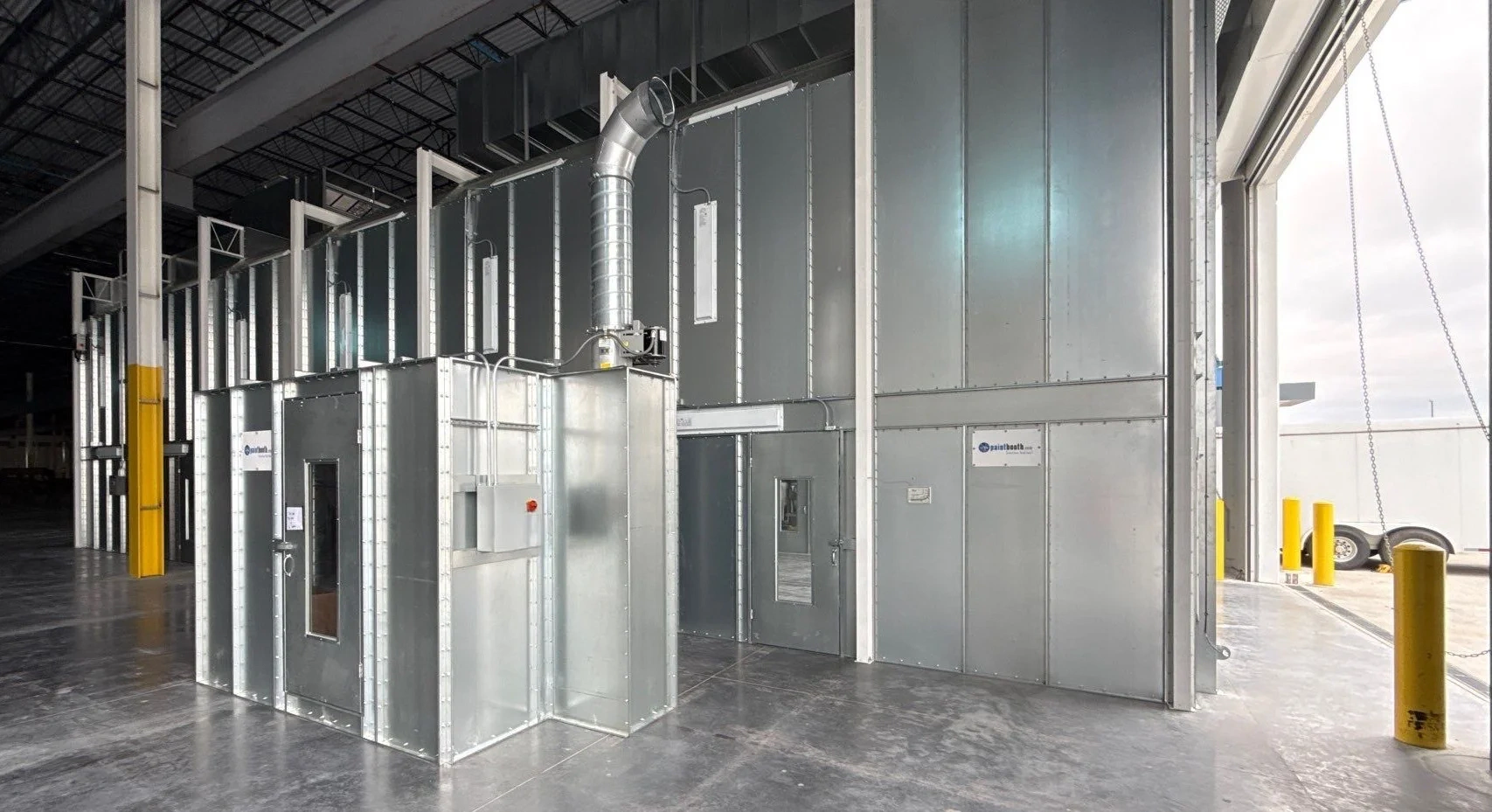

Select Your Equipment Type:

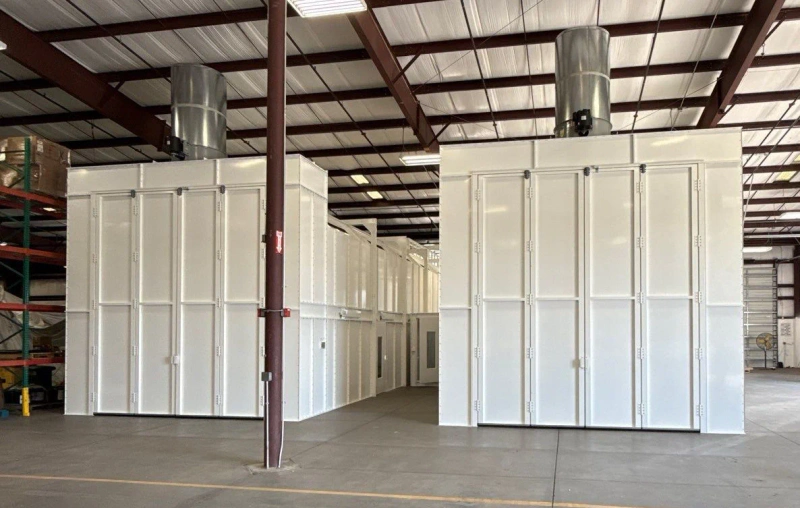

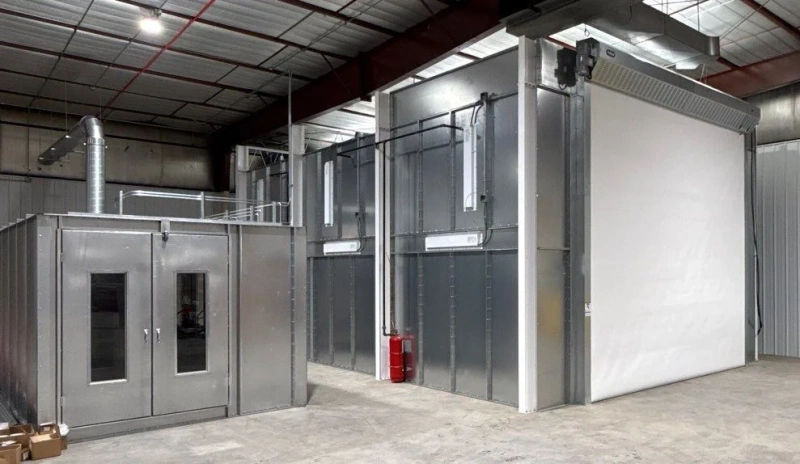

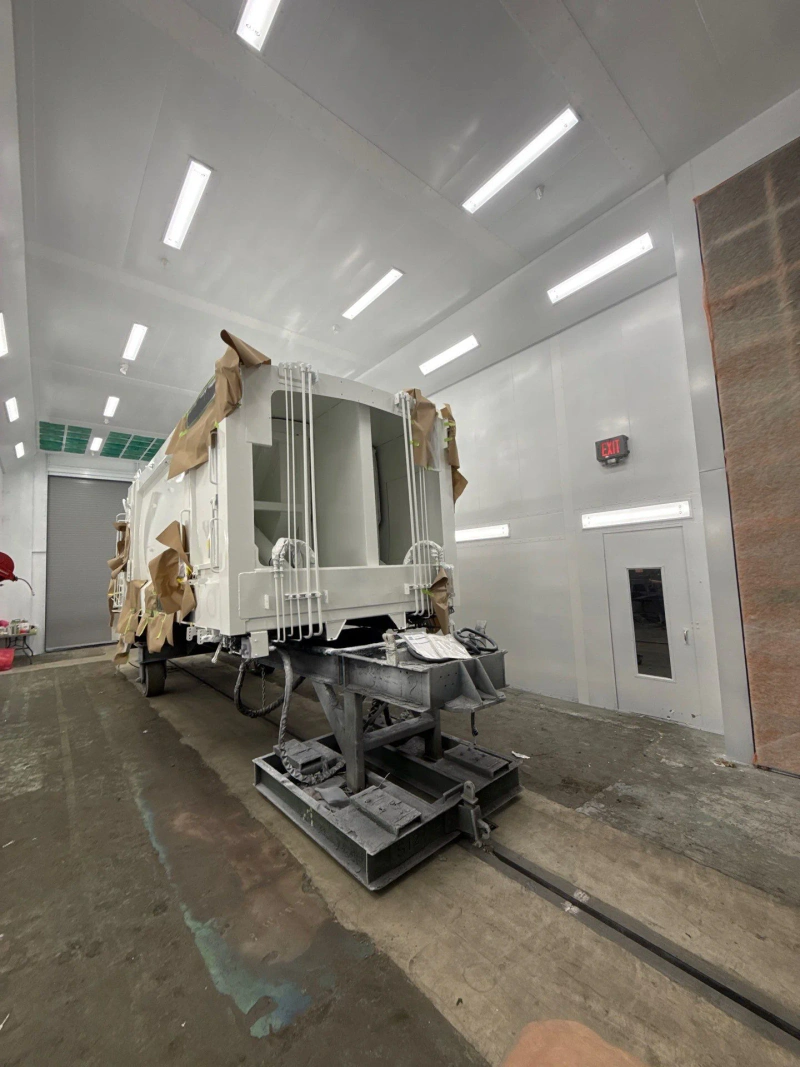

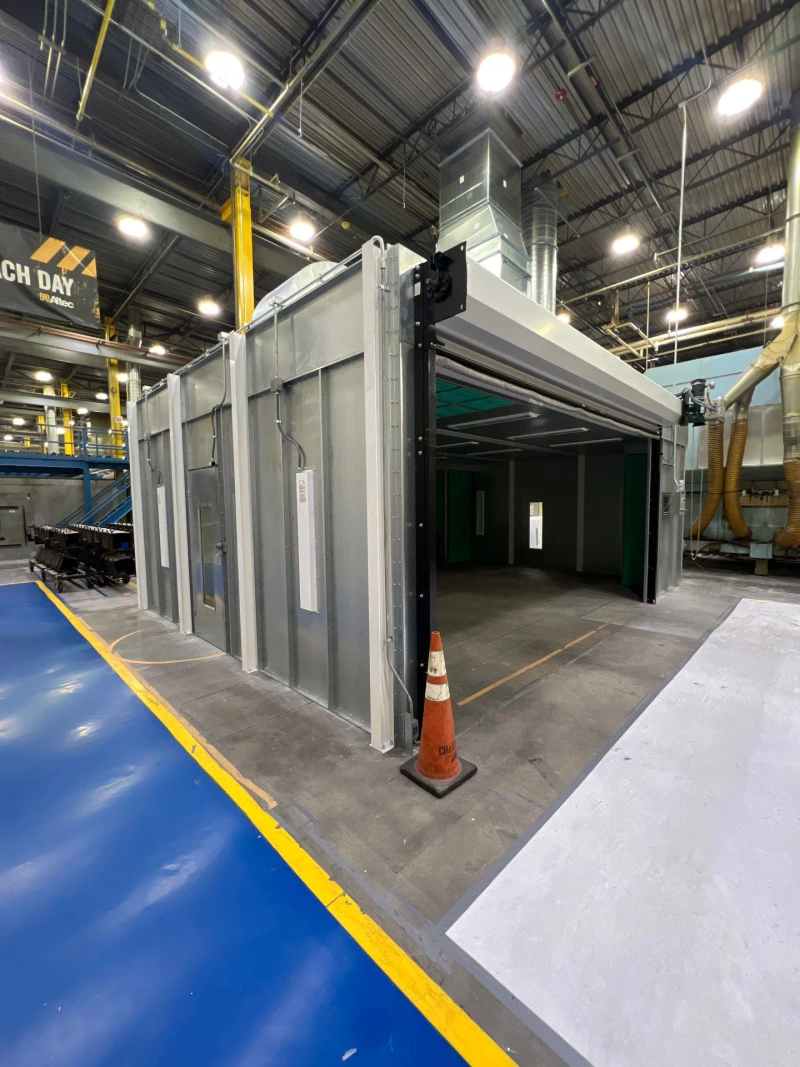

Crossdraft: Emphasizes simplicity, cost-effectiveness, consistent airflow, and contamination control:
- Cost-effective design: A straightforward configuration that provides effective airflow and filtration without the complexity of a downdraft system.

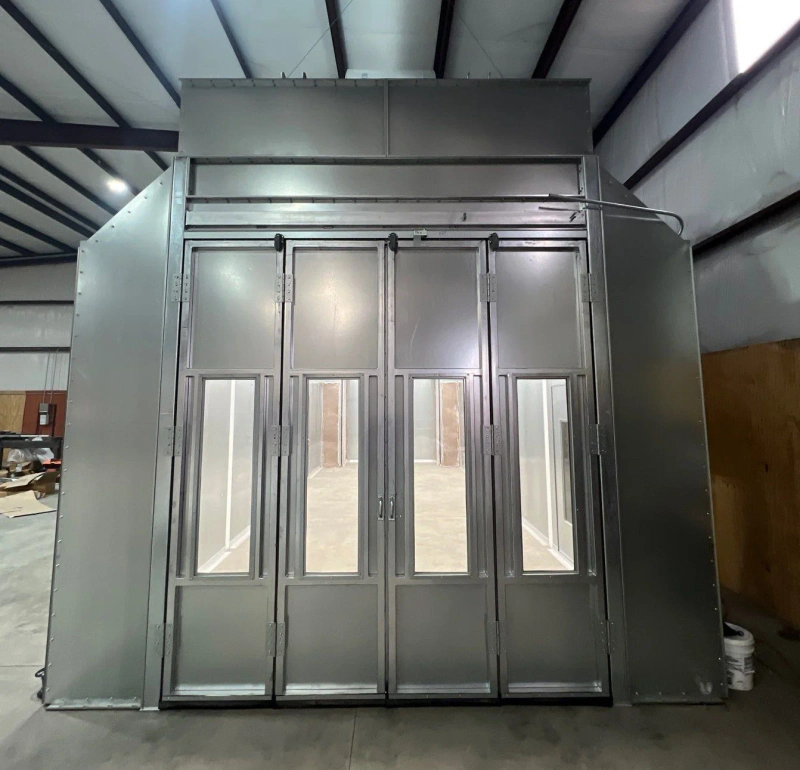

- Airflow direction: Clean air enters through an intake plenum or filtered doors at the front of the booth and moves horizontally through the working area before being exhausted through a rear plenum.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively uniform airflow throughout the booth, supporting a consistent, high-quality paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping maintain a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, reducing the possibility of contaminated shop air entering the booth.
- Filtration capacity: The system is designed with a maximized number of intake and exhaust filters to promote effective particulate filtration.
- Primary benefit: Provides a simple, economical, and controlled painting environment with consistent horizontal airflow and effective contaminant management.

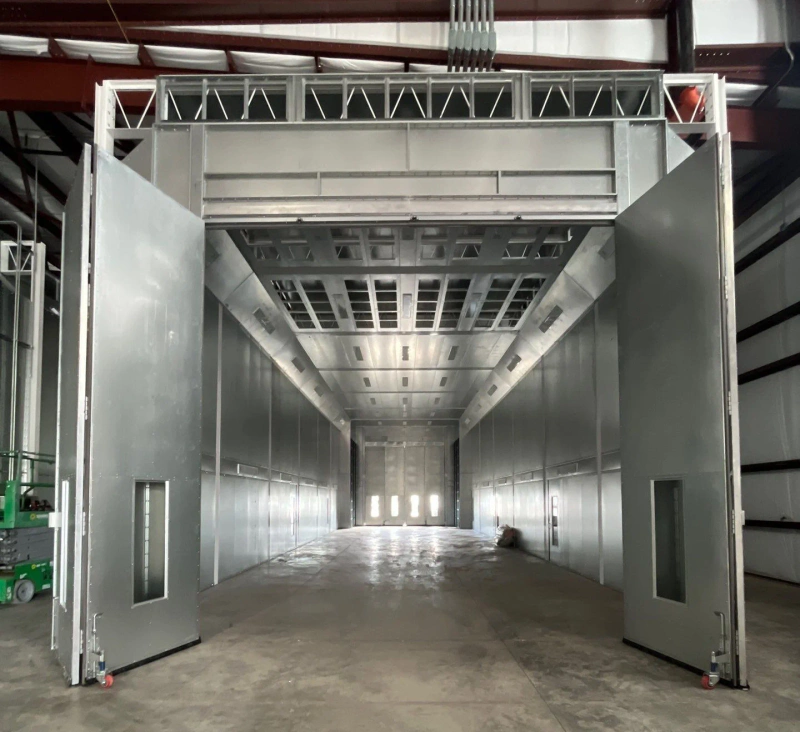

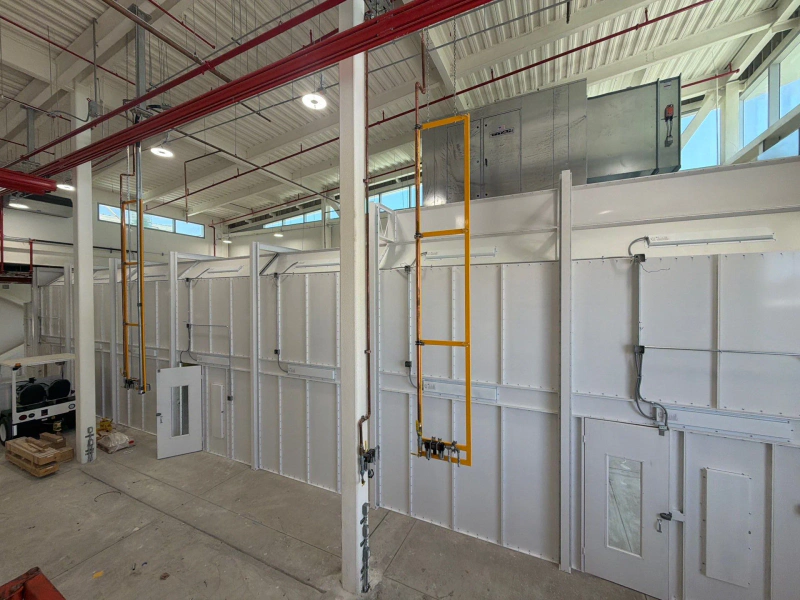

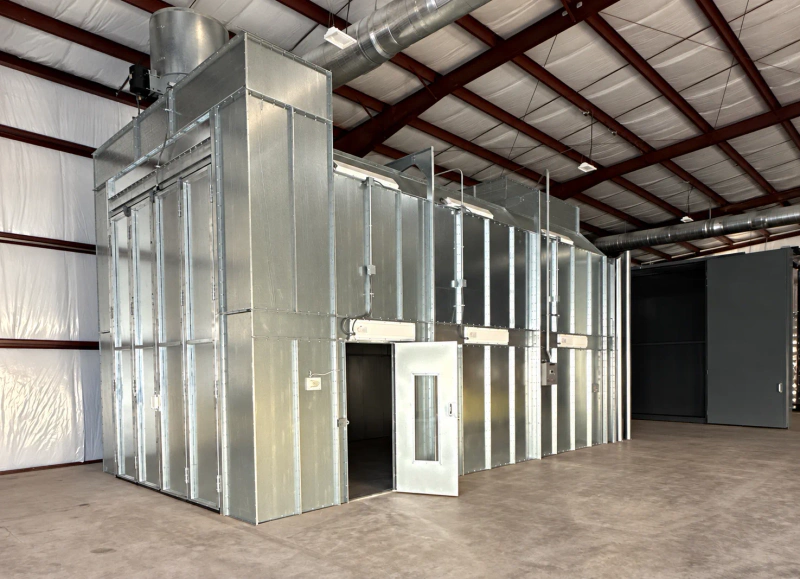

Semi Downdraft-Modified Downdraft: A hybrid design that combines characteristics of Crossdraft and Downdraft systems:
- Hybrid airflow design: Combines elements of both crossdraft and downdraft airflow to provide an efficient and controlled painting environment.
- Intake location: Clean, filtered air enters through a ceiling-type intake plenum positioned within approximately the first 25–30% of the booth length.
- Airflow path: Air moves across the working chamber and over the vehicle before being drawn toward the filtered exhaust chamber at the rear of the booth.
- Consistent air velocity: The intake and exhaust filter arrangement is designed to maintain relatively even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping minimize airborne contamination.
- Pressurized operation: A heated air makeup unit (AMU) or intake fan can supply air directly to the intake plenum, reducing reliance on potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides a balance between the airflow characteristics of crossdraft and downdraft booths, while offering improved contamination control through filtered, pressurized intake air.

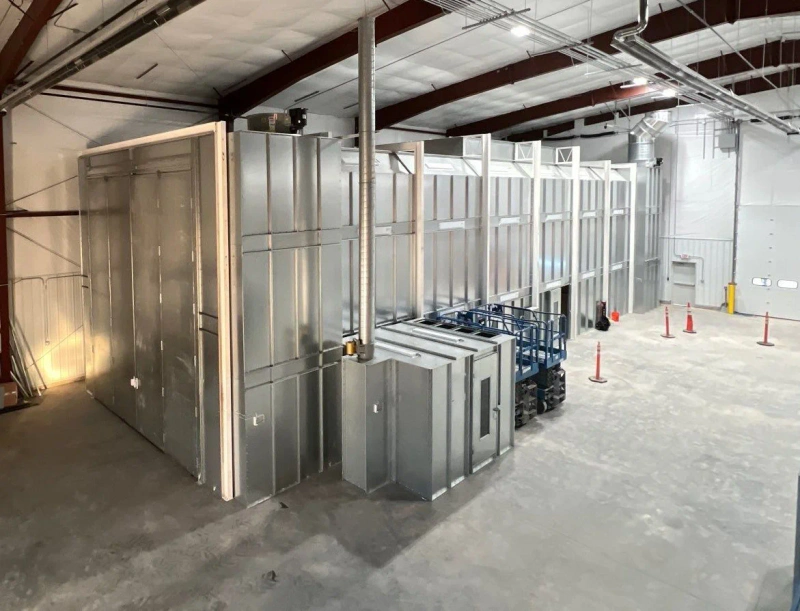

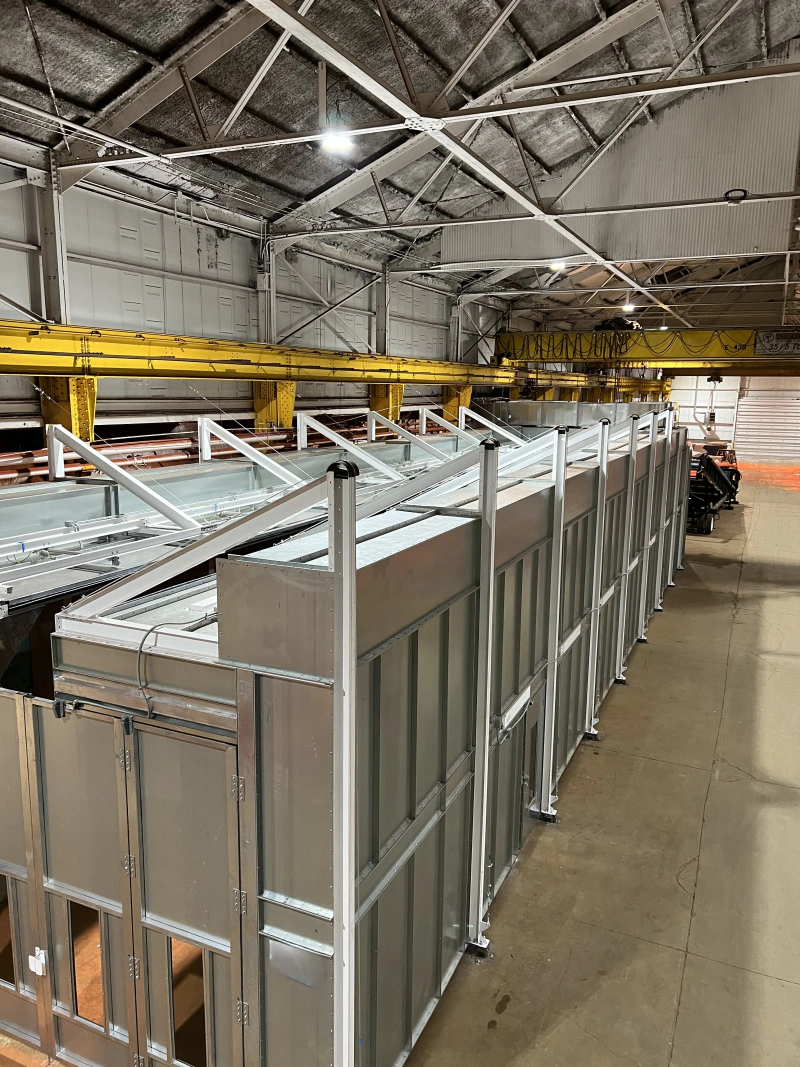

Side Downdraft: Provides many of the airflow benefits of a traditional downdraft booth without requiring a floor pit:
- Economical installation: Designed for shops that cannot or do not want to install a below-floor exhaust pit, reducing installation cost and complexity.
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the working area.
- Side exhaust: Instead of exhausting through a floor pit, contaminated air is drawn into filter chambers along both side walls that extend the length of the booth.
- Consistent air velocity: The intake and side-exhaust filter arrangement is designed to provide even airflow throughout the working area, supporting a consistent, high-quality finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, helping create a cleaner painting environment.
- Pressurized operation: Air can be supplied directly from a heated air makeup unit (AMU) or intake fan to the intake plenum, minimizing the introduction of potentially contaminated shop air.
- Maximized filtration: The booth incorporates a high quantity of intake and exhaust filters to promote efficient particulate filtration.
- Primary benefit: Provides downdraft-style vertical airflow and contamination control without the expense and construction requirements of a floor pit, making it a practical option for many existing shops.

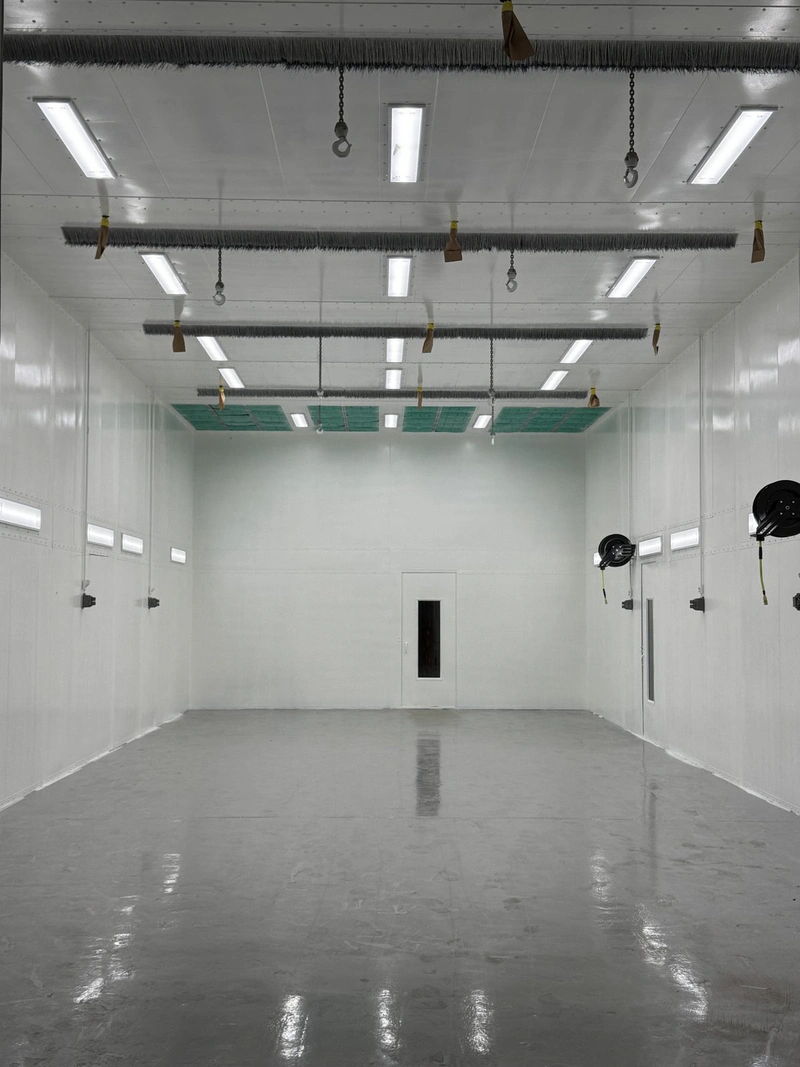

Pit Downdraft: Emphasizing airflow consistency, contamination control, and finish quality:
- Airflow direction: Clean air enters through a ceiling-mounted intake plenum and moves vertically downward through the booth toward a filtered exhaust pit in the floor.
- Overspray and contamination control: Downdraft airflow helps capture overspray and airborne contaminants, reducing the risk of particles settling on the painted surface.
- Consistent air velocity: The intake and exhaust filter arrangement is engineered to provide relatively uniform airflow throughout the work area, which is important for achieving a consistent paint finish.
- High-efficiency intake filtration: Intake filters remove dust and dirt before air enters the booth, creating a cleaner painting environment.
- Pressurized booth: Air can be supplied directly from an air makeup unit (AMU) or intake fan into the intake plenum, minimizing the introduction of contaminated shop air.
- Maximized filtration: The booth uses a high quantity of intake and exhaust filters to improve particulate filtration and maintain efficient airflow.
- Primary benefit: The overall system is designed to provide a cleaner, more controlled painting environment and a higher-quality finish while effectively managing overspray.
FAQs
What type of Paint Booth is best fit for my application?
That all depends on the product size, coating material, production volume, desired finish quality and available building space. Common airflow designs include Cross Draft, Semi-Downdraft, Side-Downdraft and Full-Downdraft booths. Paintbooth.com will evaluate your operation and make recommendations for you.
Can you help me determine the correct Paint Booth size?
Yes. We start with the largest products you plan to finish and allow approximately three feet minimum of working clearance around it whenever possible. We will also consider personnel access, product doors, cranes, conveyors, lifts and future production needs. The building’s ceiling height, available floor space and exhaust-duct routing can also affect the final booth dimensions.

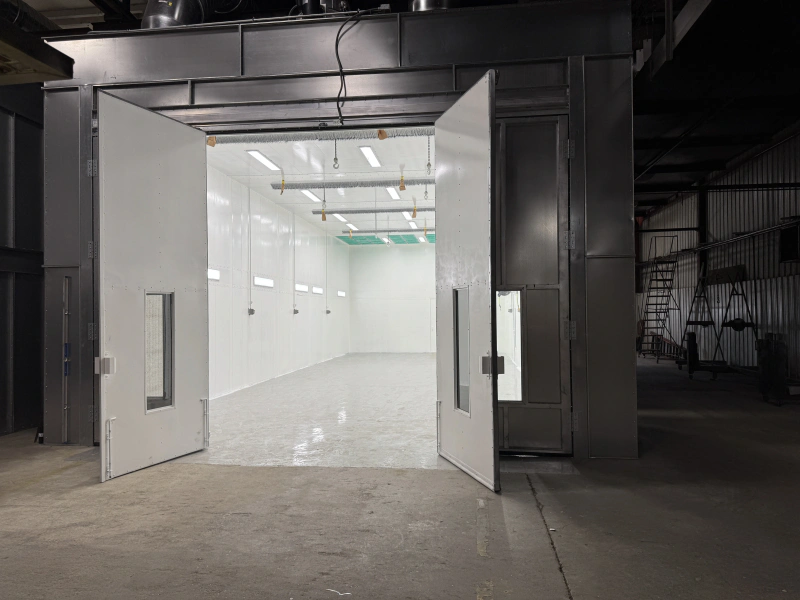

Do I need a heated Paint Booth?
You may or may not need an Air Make Up Unit. Many customers that have facilities in warm climates do not add heat or make up air. They simply open a building Roll Up Door. This does not always meet code in the eyes of the inspector. A heated paint booth can improve temperature control, coating consistency and drying time, especially in colder climates or high-production operations. Air makeup units replace exhausted air with filtered, temperature-controlled air and help maintain proper booth pressure. Units equipped with a Cure Cycle can also cut production times.
What permits and codes apply to Paint Booth installations?
Paint booth installations typically require building, mechanical, roofing, electrical, fire and environmental approvals. Applicable requirements can include NFPA 33, OSHA regulations, local fire codes and air-quality rules. Paintbooth.com provides engineering services, stamped drawings and permitting support through licensed professional engineers.
How much does an Industrial Paint Booth cost?
Paint booths & Finishing Equipment cost depends on many factors including size, airflow design, heating, controls, lighting, doors, exhaust ductwork, fire suppression and installation conditions. Site preparation, electrical service, gas supply and permitting costs can also affect total investment. There is more to the cost than just the Paint Booth so be sure to go with a vendor who will educate you and assist you with the process. Afterall anyone can ship you a booth but then what….
