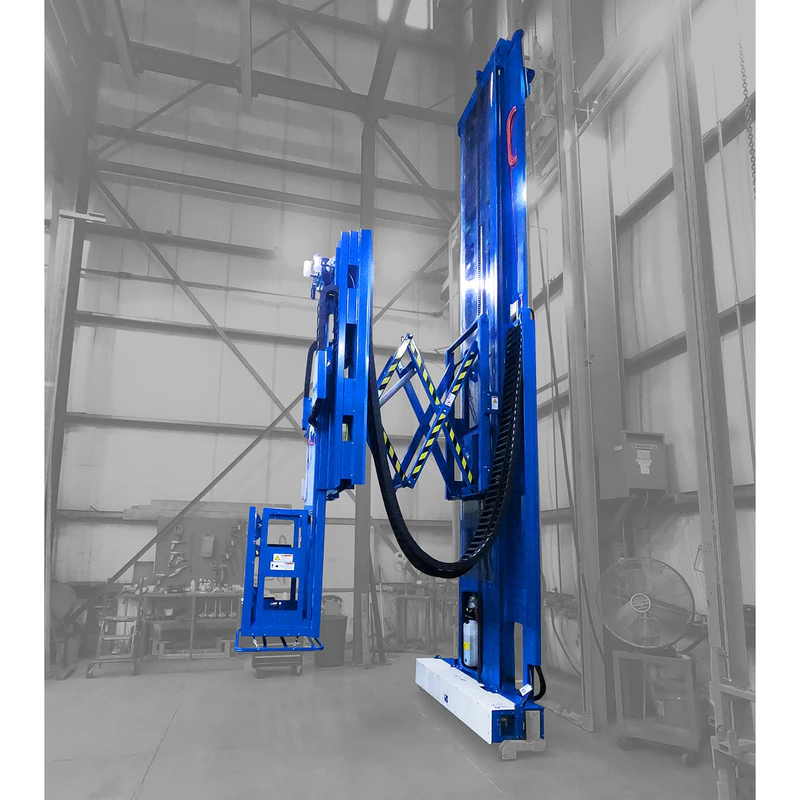

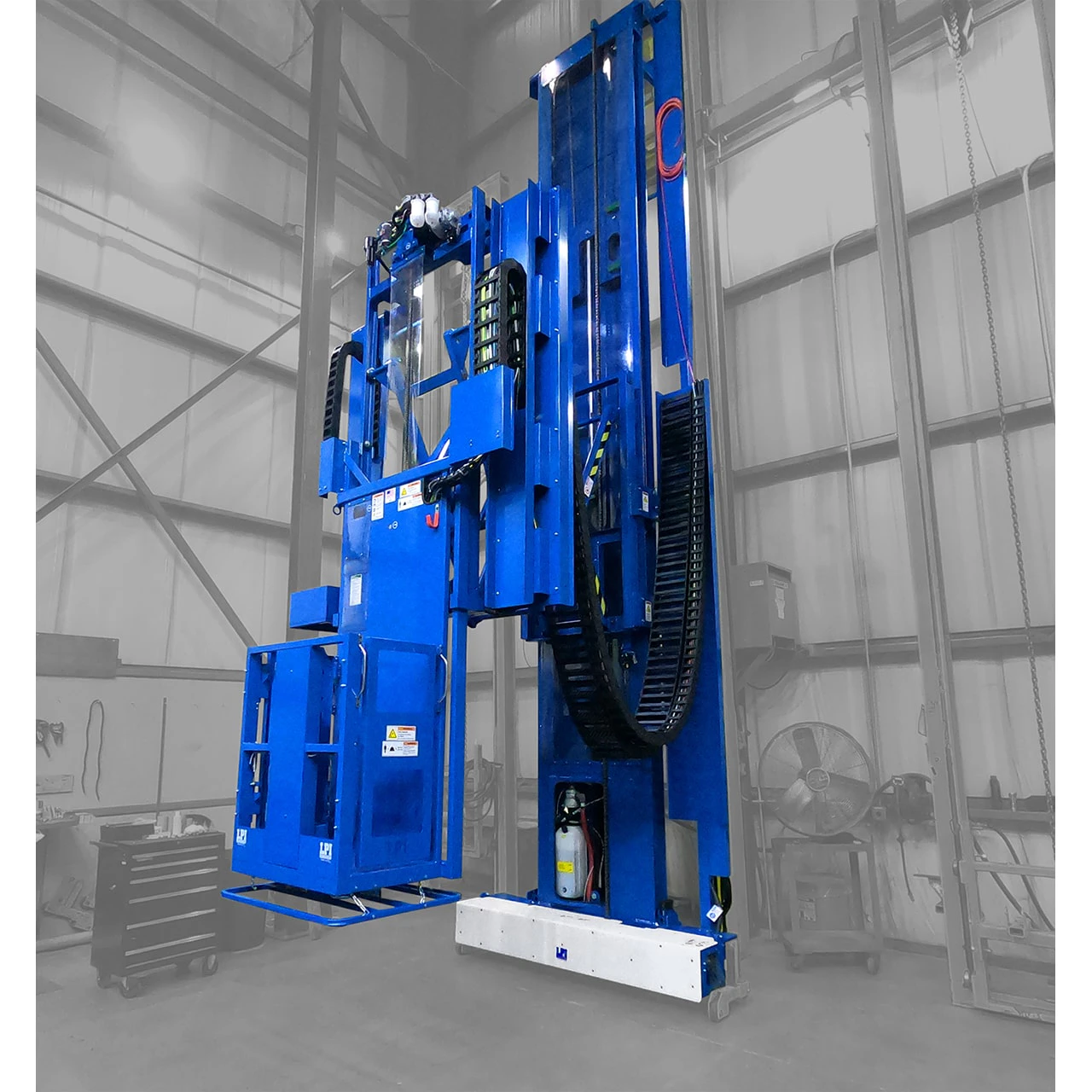

3-Axis Paint Booth Lift
3-Axis Industrial Personnel lift used for prep, paint, wash and fabrication. OSHA/ANS Compliant
- X-Axis (Left/Right): Along a guide rail system (foot controlled)
- Y-Axis (In/Out-booth wall to platform): 9ft.-7in. (hand controlled)
- Retracted Lift Basket Dimension: 3 ft.
- Z-Axis (Up/Down-to platform): Up to 22 ft. (hand controlled)
- Lift Travel Speeds: X-Axis (variable): Up to 40 ft./min.
- Lift Travel Speeds: Y-Axis & Z-Axis: 15 ft./min.
- Independently controlled axis travel
- Our Standard Platform Dimensions: 48in. wide x 21in. deep
- Standard Platform capacity: 500lbs.
- Controls can be positioned at the base to raise or lower platform
- Standard Self-closing & latching entry/exit gates
- Auxiliary non-oiled air connection in lift platform
- Pneumatic/mechanical drive unit
- Features an In-line Filter/Regulator/Lubricator
Product Options
- Lift Controls can be mounted on the front or back wall of the platform
- Safety Contact Bumper: Shuts down all lift motion if bumper comes in contact with anything
- Optional Base steps: Used where standard platform steps interfere with product during operation. These are required with Contact Bumper
- Lift Lower Rail Scraper: Cleans excess over-spray from lower rail (required in side-draft booths)
- Over-Spray Filter Covers: Decrease over spray on mechanical drive components to prolong lift life and lessen mainrtenenace
- Optional Paint Pressure Pot Carrier: Designed to carry a single 5 gallon paint pressure pot. Attaches to the base of the lift and includes paint gun holder and 2 hose holders
- Roller Mount Spacers: Spaces lift away from booth wall for existing equipment clearance (usually lights)
- Base Bumpers: Hard rubber bumpers mounted on base of lift when 2 lifts operate on same rail
- Front Gate Platform: This allows access from the front of lift
- Safety Harness Attachment Points: Used when you have the Front Gate option
- Wall Mounted Auxiliary Flex Track: 1×4 in. flexible track that can carry breathing air and paint lines from top of mast to operator platform
- Lower Rail Guides: Used when heavy paint build-up is anticipated or in wash booths. Helps Guide lift travel on lower rail
Technical Details

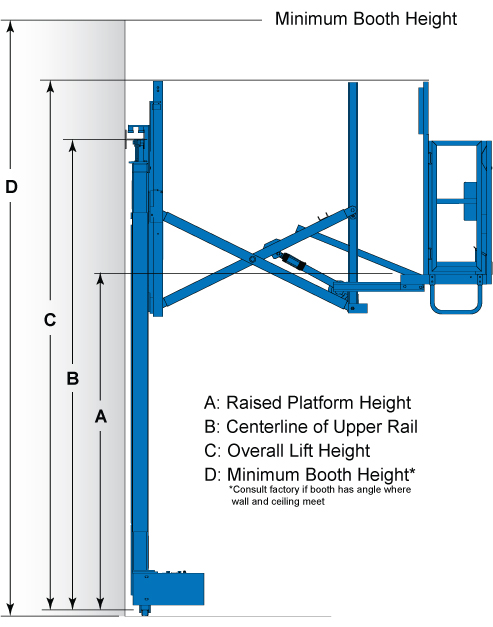

| Model | A | B | C | D |
|---|---|---|---|---|
| LP2-610 | 6' | 9'-3" | 11'-6" | 12' |
| LP2-710 | 7' | 10'-3" | 12'-6" | 13' |
| LP2-810 | 8' | 11'-3" | 13'-6" | 14' |
| LP2-910 | 9' | 12'-3" | 14'-6" | 15' |
| LP2-1010 | 10' | 13'-3" | 15'-6" | 16' |
| LP2-1110 | 11' | 14'-3" | 16'-6" | 17' |
| LP2-1210 | 12' | 15'-3" | 17'-6" | 18' |
| LP2-1310 | 13' | 16'-3" | 18'-6" | 19' |
| LP2-1410 | 14' | 17'-3" | 19'-6" | 20' |
| LP2-1510 | 15' | 18'-3" | 20'-6" | 21' |
| LP2-1610 | 16' | 19'-3" | 21'-6" | 22' |
| LP2-1710 | 17' | 20'-3" | 22'-6" | 23' |
| LP2-1810 | 18' | 21'-3" | 23'-6" | 24' |
| LP2-1910 | 19' | 22'-3" | 24'-6" | 25' |
| LP2-2010 | 20' | 23'-3" | 25'-6" | 26' |
| LP2-2110 | 21' | 24'-3" | 26'-6" | 27' |
| LP2-2210 | 22' | 25'-3" | 27'-6" | 28' |
Applications
- Paint Finishing
- Surface Preparation (sanding, grinding)
- Washing
- Sanding
- Fabrication
- Fall Prevention / Safety
- Maintenance
