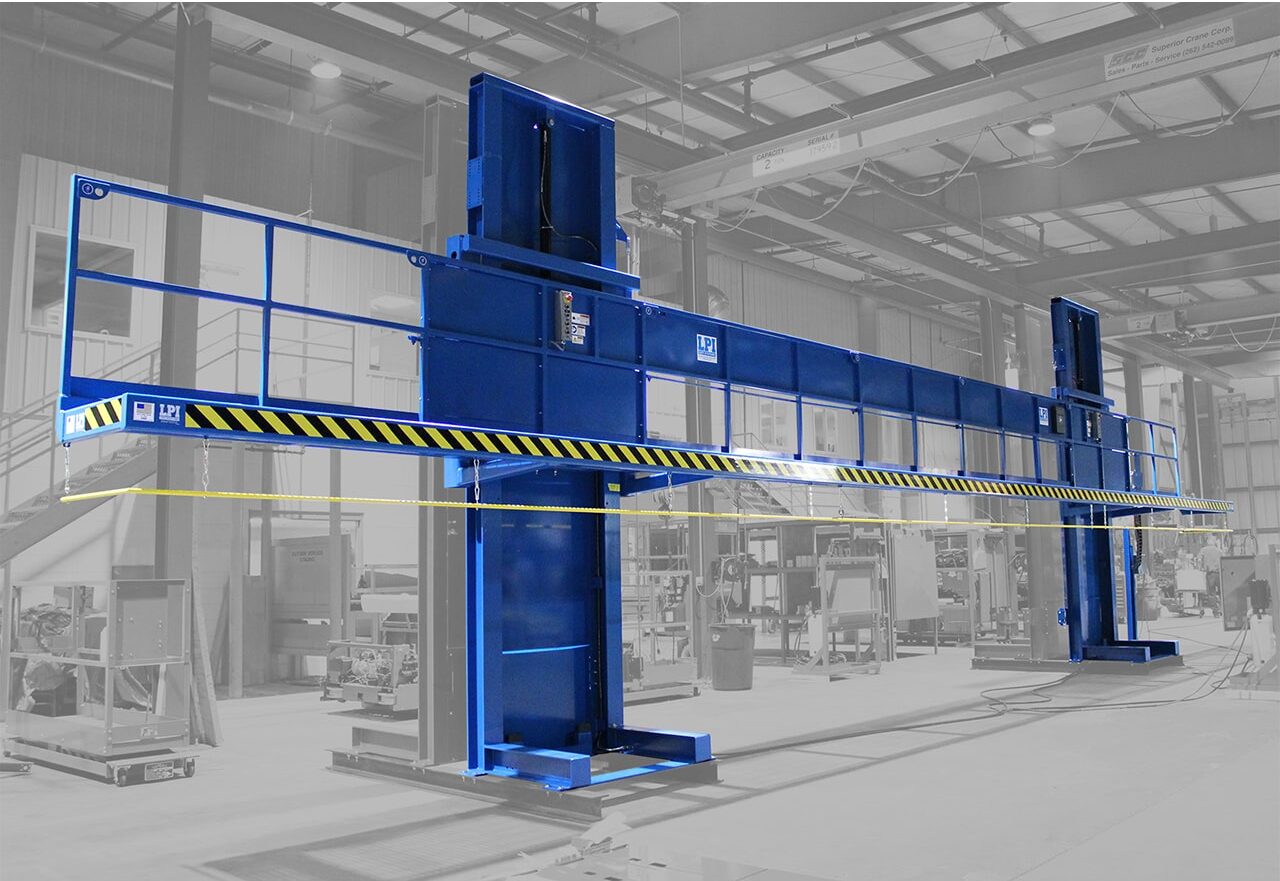

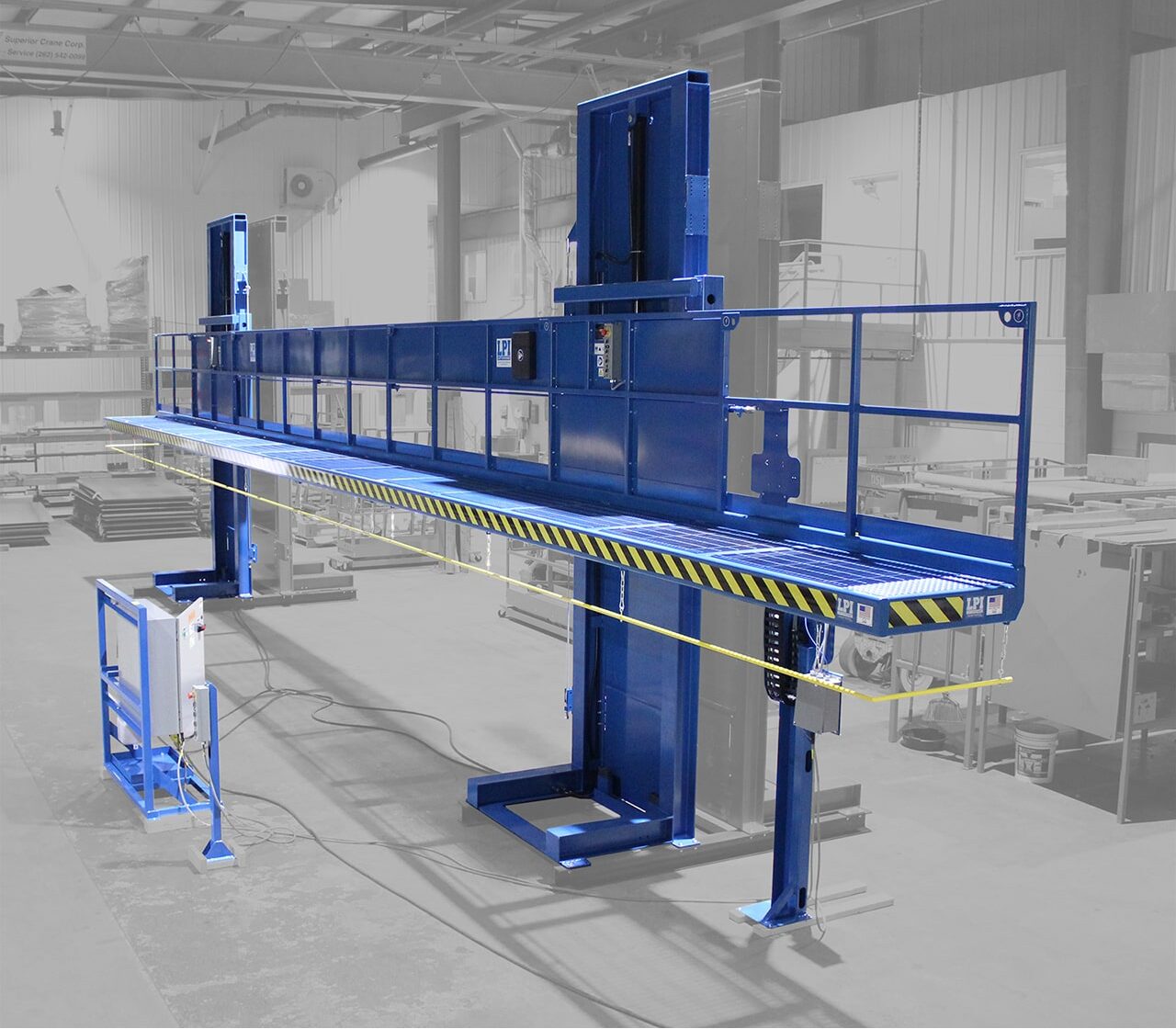

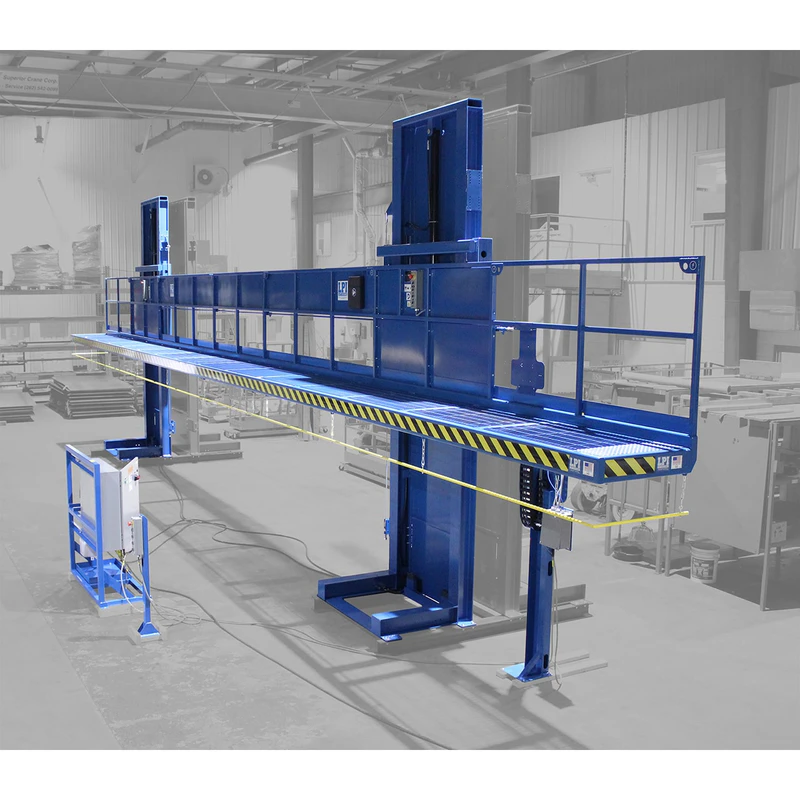

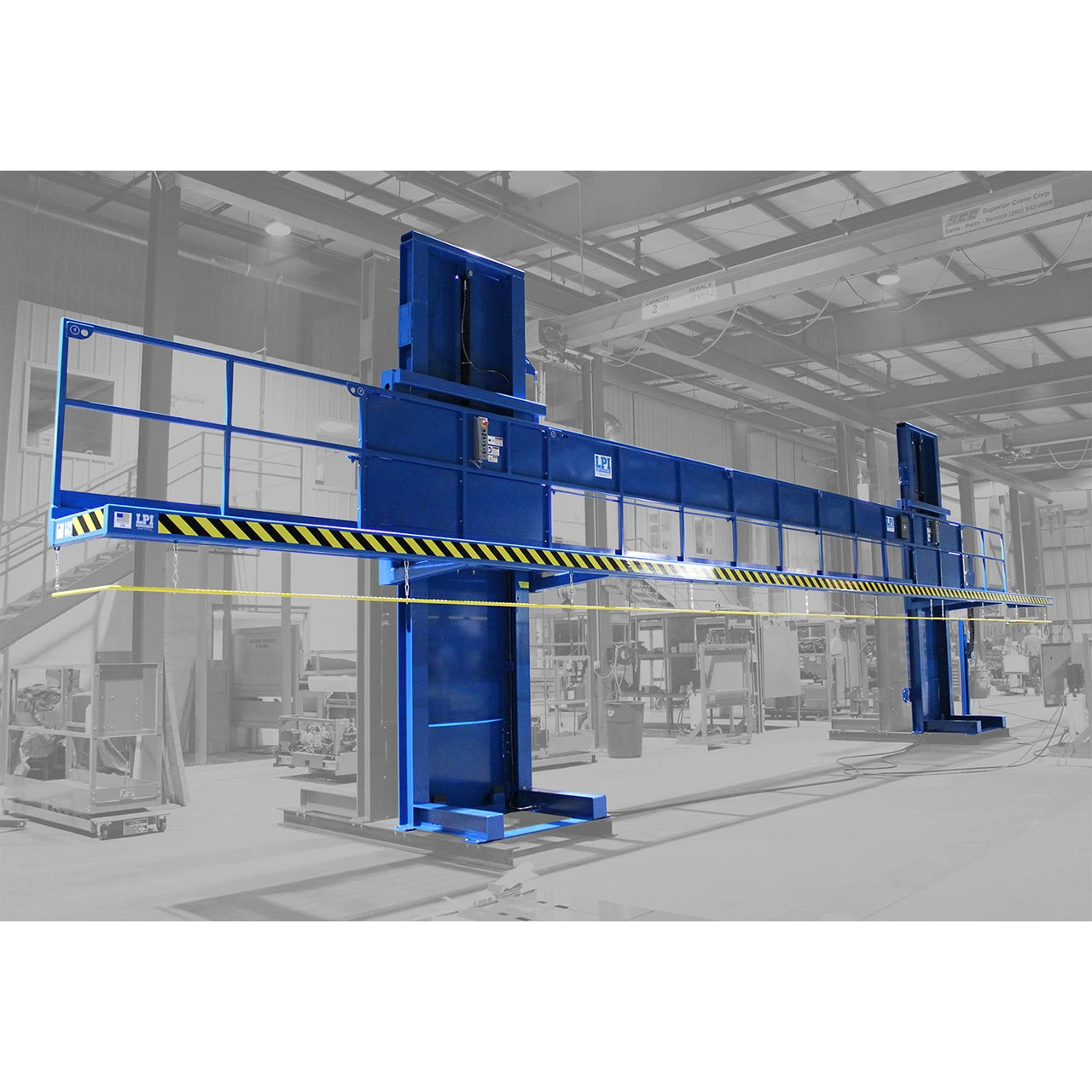

Vertically Adjustable Catwalk

Vertically Adjustable Catwalk lift for hazardous, wet or blast media locations.

  • Floor and wall mounted, stationary mast-based lift
  • Platform dimensions: 50ft. long x 29in. wide
  • Raised platform height:  78in.
  • Lowered platform height:  12in.
  • Platform capacity:  700lbs.
  • Power Options Available:  Pneumatic/hydraulic or Electric/hydraulic
  • Can be used in hazardous, wet or blast media environments
  • Personnel entry gates on each end
  • Emergency stop button
  • Standard Base controls
  • Includes built-in safety features
Product Options
  • More Roll-out sections can be added for varying width products
  • Can be configured to accommodate for different platform lengths and widths
  • Modular in design so they and can accommodate longer length platforms
Product Documents
Technical Details

This lift is designed to be anchored into a pit in the floor so that when the lift is fully lowered the work platform is flush with the floor. Pit dimensions used: 12in. deep x 44in. wide x 50ft. long.

Applications
  • Prep / Wash Bays
  • Maintenance
  • Ergonomic Positioning
  • Paint Finishing / Powder Coating
  • Blast Booth / Blast Room
