A-Series Industrial Portable Booths
Bigger. Built for Industrial Applications.
When it's impractical to move a large workpiece into a conventional paint booth, the Mobile Work Station® A-Series brings the controlled work area directly to the product.
Designed for larger industrial applications, the A-Series features a 10' × 10' × 10' curtained work area, providing additional room for oversized components and equipment.

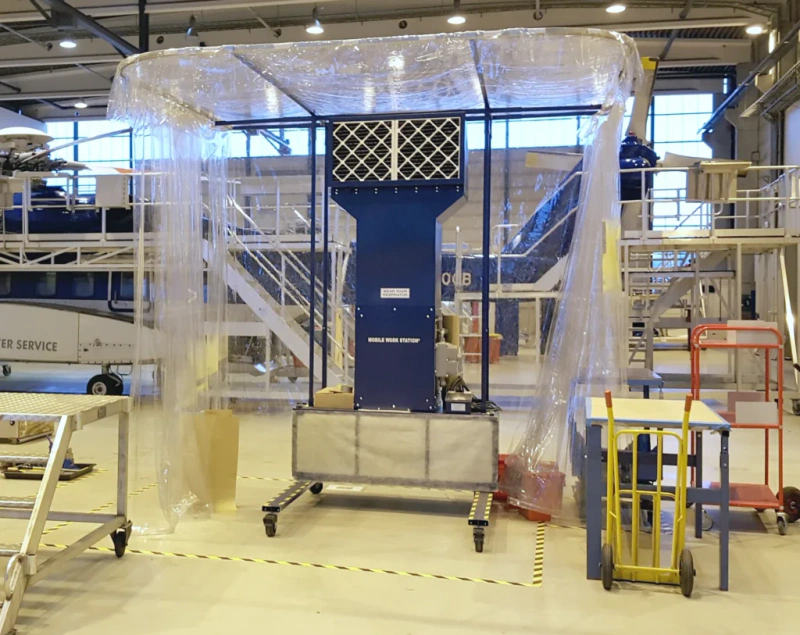

Originally developed for aerospace manufacturing, the A-Series has proven to be a versatile solution for aviation manufacturing and maintenance, RV and specialty vehicle manufacturing, large industrial components, transportation equipment, machinery and equipment repair, and industrial painting and coating applications.
What’s Included with Every A-Series Unit
The multi-stage filtration system helps capture paint overspray, airborne particulate, VOCs, and odors, providing contaminant control for the process.
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
- Heavy-duty, easy-roll casters for mobility
- Caster support extensions for increased stability
- Adjustable filter racks for application-specific filtration configurations
A-Series Industrial Portable Booth Features
Direct-Drive, Hazardous-Location Design
A-Series models feature an upgraded 1-1/2 HP sealed, maintenance-free UL Listed motor rated for hazardous locations. The direct-drive fan assembly eliminates belts, helping reduce maintenance requirements and potential downtime.
Available Models
Scroll horizontally to view all model columns.
| Model # | Motor HP | CFM | Curtains | Fire Suppression | Power |
|---|---|---|---|---|---|
| 5450A | 1 ½ HP | 3,500 | NO | NO | 115V or 230V / Single Phase / 20-Amp Plug* |
| 5460A | 1 ½ HP | 3,500 | NO | YES | 115V or 230V / Single Phase / 20 Amp* |
| 5400A | 1 ½ HP | 3,500 | YES | NO | 115V or 230V / Single Phase / 20 Amp* |
| 5410A | 1 ½ HP | 3,500 | YES | YES | 115V or 230V / Single Phase / 20 Amp* |
Model 5450A Specifications
The Model 5450A is the base filtration configuration in the larger-format A-Series Mobile Work Station® lineup, providing 3,500 CFM of portable industrial air filtration without a curtain enclosure or integrated fire suppression system.
Its adjustable filter racks allow the filtration package to be configured around different processes and contaminants.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Caster support extensions
| Specification | Model 5450A |
|---|---|
| Motor | 1-1/2 HP Hazardous Location |
| Airflow | 3,500 CFM |
| Curtain Enclosure | No |
| Fire Suppression | No |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 5460A Specifications
The Model 5460A combines the large-format A-Series Mobile Work Station® filtration platform with an integrated dry chemical fire suppression system.
Unlike enclosed A-Series configurations, the Model 5460A does not include a curtain enclosure, making it an excellent choice when portable source-capture filtration and fire protection are required.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- On-board dry chemical fire suppression system
- Caster support extensions
| Specification | Model 5460A |
|---|---|
| Motor | 1-1/2 HP Hazardous Location |
| Airflow | 3,500 CFM |
| Curtain Enclosure | No |
| Fire Suppression | Yes |
| Power | 115V or 230V / Single Phase / 20 Amp* |
Model 5400A Specifications
The Model 5400A combines the higher-airflow A-Series Mobile Work Station® filtration platform with a large 10' × 10' × 10' curtain enclosure, creating a portable limited finishing workstation designed for larger industrial applications.
The attached curtain enclosure helps create a defined work area and directs contaminated air toward the filtration system for source capture.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 10' × 10' × 10' NFPA 701-compliant curtain enclosure
- Heavier-gauge enclosure supports
| Specification | Model 5400A |
|---|---|
| Motor | 1-1/2 HP Hazardous Location |
| Airflow | 3,500 CFM |
| Curtain Enclosure | Yes — 10' × 10' × 10' |
| Fire Suppression | No |
| Power | 115V or 230V / Single Phase / 20 Amp* |

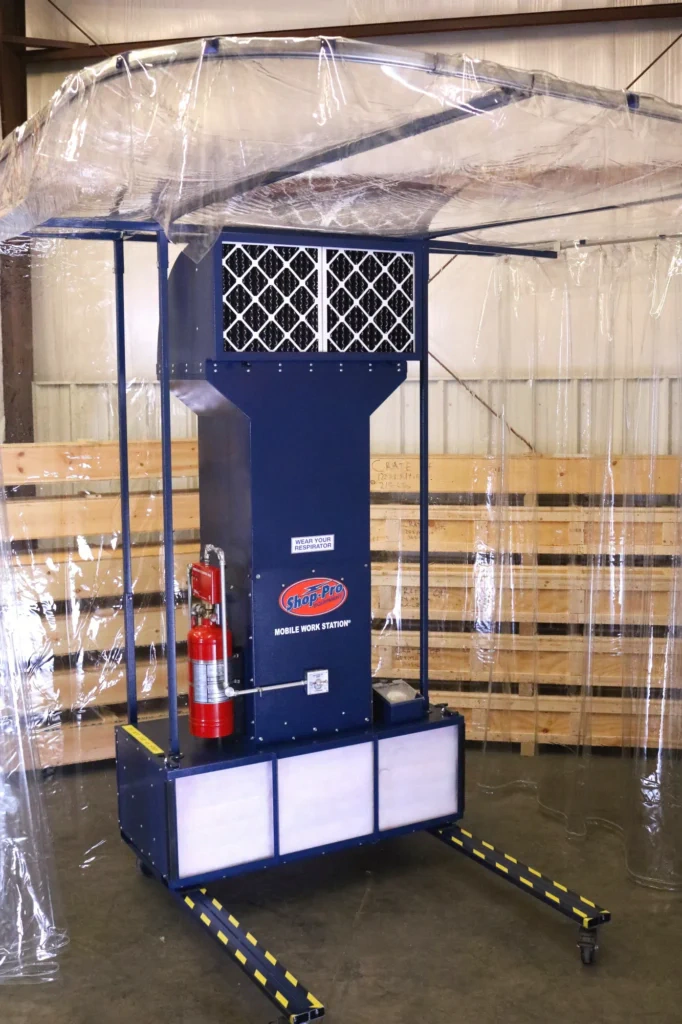

Model 5410A Specifications
The Model 5410A is our most popular A-Series Mobile Work Station®, combining a large 10' × 10' × 10' curtain enclosure, high-volume 3,500 CFM filtration, and an integrated dry chemical fire suppression system in one heavy-duty portable workstation.
It is an excellent combination of size, airflow, filtration, containment, portability, and fire protection for facilities that need more capability than a standard-sized portable workstation.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- On-board dry chemical fire suppression system
- 10' × 10' × 10' NFPA 701-compliant curtain enclosure
- Heavier-gauge enclosure supports
| Specification | Model 5410A |
|---|---|
| Motor | 1-1/2 HP Hazardous Location |
| Airflow | 3,500 CFM |
| Curtain Enclosure | Yes — 10' × 10' × 10' |
| Fire Suppression | Yes |
| Power | 115V or 230V / Single Phase / 20 Amp* |

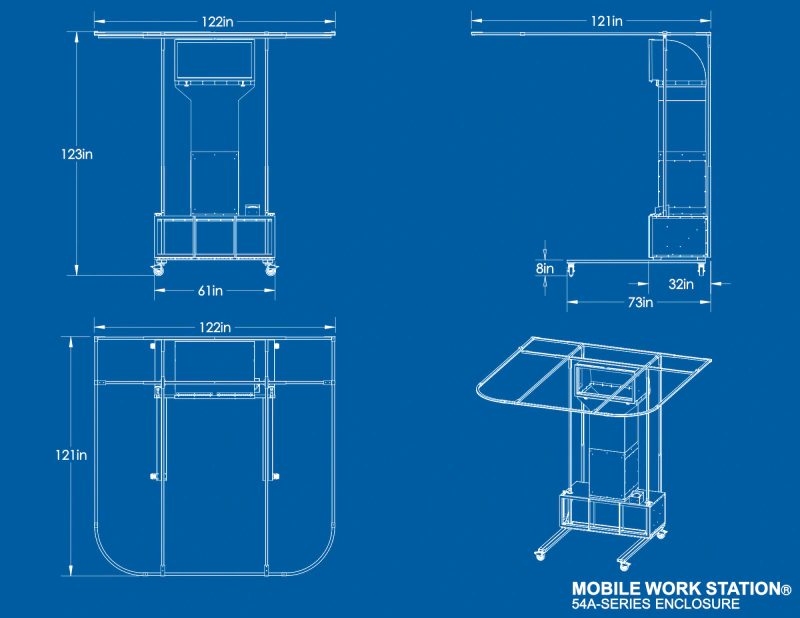

Example Drawing
Click the drawing to enlarge dimensions.
