Mobile Prep Station
Product Overview
The Mobile Prep Station is a flexible portable filtration system for facilities that need to add prep capacity, control contaminants, or create dedicated work areas without permanently sacrificing valuable floor space.
Work Smarter. Breathe Easier. Bring filtration to the work instead of bringing the work to a fixed prep station.
What’s Included with Every Mobile Prep Station
The multi-stage filtration system helps capture paint overspray, airborne particulate, VOCs, and odors, providing contaminant control for the process.
- UL Listed hazardous-location motor and fan assembly
- UL Listed hazardous-location electrical controls
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
- Heavy-duty, easy-roll casters for convenient positioning
- Adjustable filter racks for application-specific filtration configurations
Mobile Prep Station Features
Motor & Airflow Options
Mobile Prep Station models are offered with 3/4 HP, 2,400 CFM and 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assemblies.
Available Models
Scroll horizontally to view all model columns.
| Model # | Motor HP | CFM | Curtains | Fire Suppression | EPA 6H Compliant | Power |
|---|---|---|---|---|---|---|
| 4950 | ¾ HP | 2,400 | NO | NO | NO | 115V or 230V / Single Phase / 15-Amp Plug* |
| 4960 | ¾ HP | 2,400 | NO | YES | NO | 115V or 230V / Single Phase / 15-Amp Plug* |
| 4900 | ¾ HP | 2,400 | YES | NO | YES | 115V or 230V / Single Phase / 15-Amp Plug* |
| 5450 | 1 ½ HP | 3,500 | NO | NO | NO | 115V or 230V / Single Phase / 20-Amp Plug* |
| 5460 | 1 ½ HP | 3,500 | NO | YES | NO | 115V or 230V / Single Phase / 20-Amp Plug* |
| 5400 | 1 ½ HP | 3,500 | YES | NO | YES | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 4950 Specifications
The Model 4950 Mobile Prep Station provides a 3/4 HP, 2,400 CFM open source-capture filtration configuration for facilities that need to add prep capacity without a curtain enclosure or integrated fire suppression.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 4950 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | NO |
| Fire Suppression | NO |
| EPA 6H Compliant | NO |
| Power | 115V or 230V / Single Phase / 15-Amp Plug* |
Model 4960 Specifications
The Model 4960 combines the 3/4 HP, 2,400 CFM open Mobile Prep Station filtration platform with integrated fire suppression for applications requiring additional protection.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins

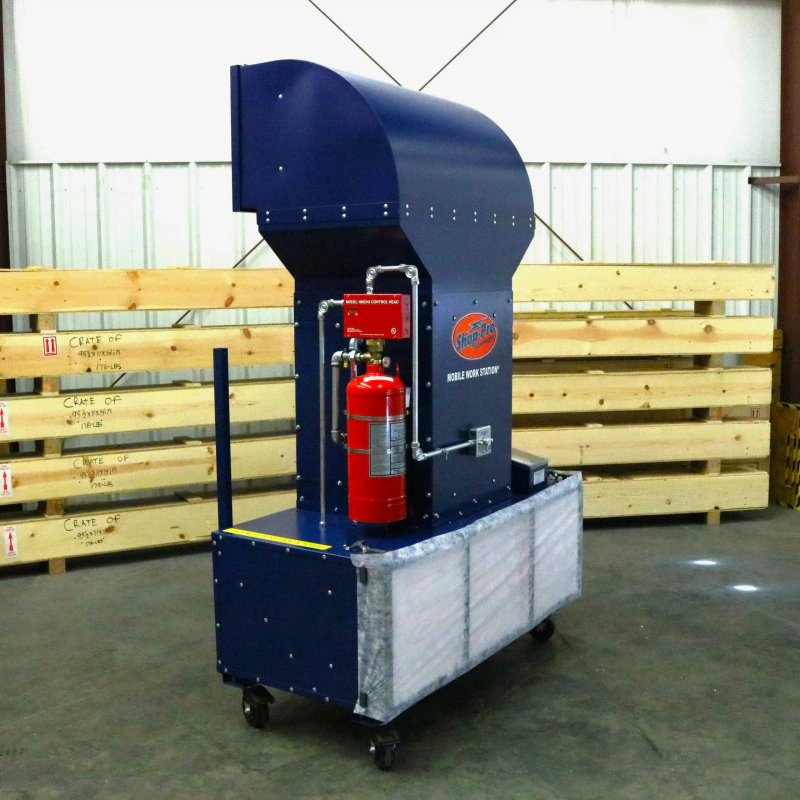

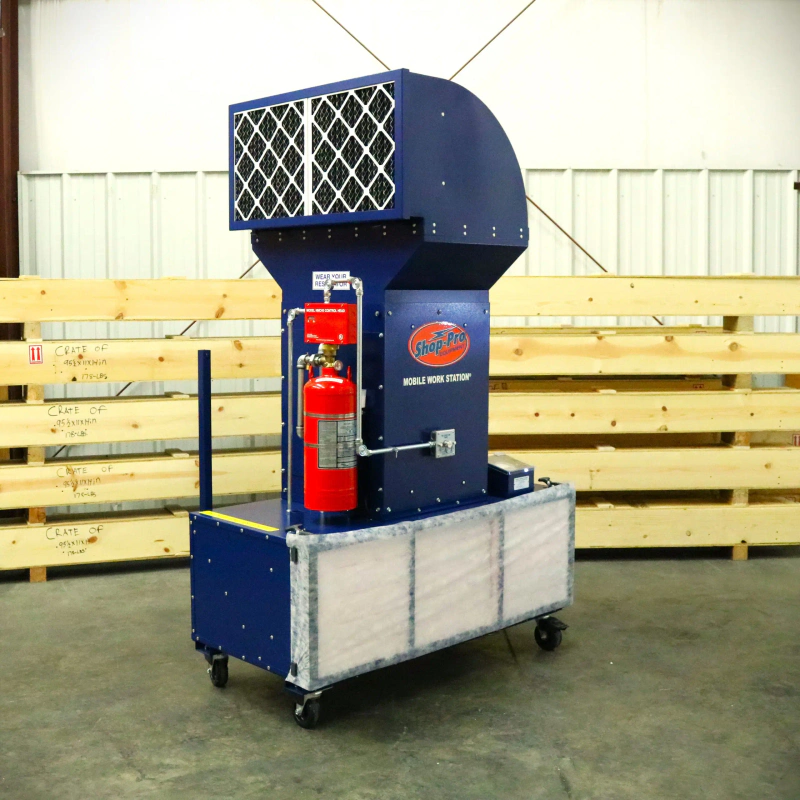

- On-board dry chemical fire suppression system
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 4960 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | NO |
| Fire Suppression | YES |
| EPA 6H Compliant | NO |
| Power | 115V or 230V / Single Phase / 15-Amp Plug* |
Model 4900 Specifications
The Model 4900 Mobile Prep Station combines 2,400 CFM portable filtration with an attached curtain enclosure to create an EPA 6H-compliant portable finishing environment when properly configured and operated.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
- EPA 6H Certificate of Compliance
| Specification | Model 4900 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | YES |
| Fire Suppression | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 15-Amp Plug* |
Model 5450 Specifications
The Model 5450 provides the higher-airflow 1-1/2 HP, 3,500 CFM open Mobile Prep Station configuration for source capture where a fully enclosed work area is not necessary.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 5450 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | NO |
| Fire Suppression | NO |
| EPA 6H Compliant | NO |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 5460 Specifications
The Model 5460 combines 3,500 CFM portable prep filtration with an integrated fire suppression system, while retaining the flexibility of an open source-capture configuration.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- On-board dry chemical fire suppression system
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 5460 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | NO |
| Fire Suppression | YES |
| EPA 6H Compliant | NO |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 5400 Specifications
The Model 5400 Mobile Prep Station combines 3,500 CFM filtration with an attached curtain enclosure for a controlled EPA 6H-compliant portable finishing environment when properly configured and operated.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
- EPA 6H Certificate of Compliance
| Specification | Model 5400 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | YES |
| Fire Suppression | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |

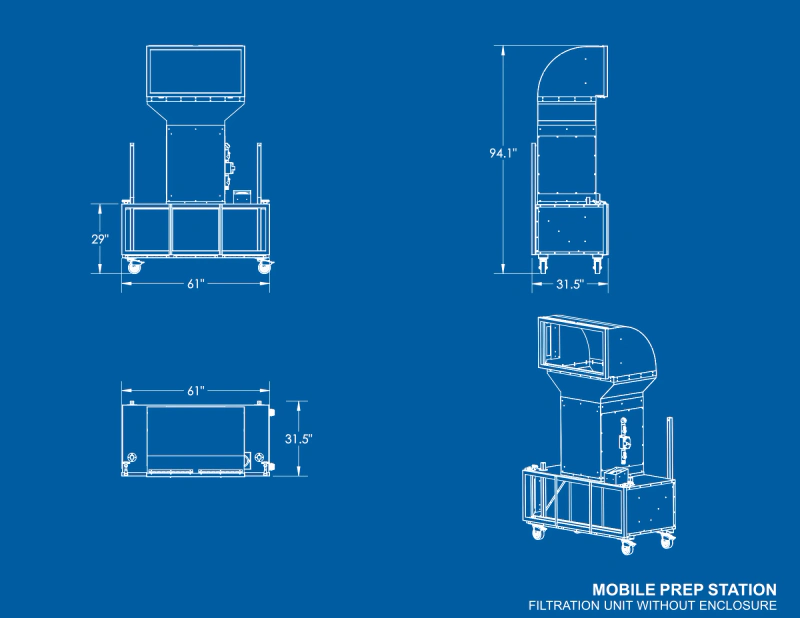

Example Drawing
Click the drawing to enlarge dimensions.
