Mobile Tech Work Station
Product Overview
Not every finishing operation happens inside a traditional body shop or manufacturing facility. Mobile technicians, fleet operators, dealerships, and field-service teams need equipment designed around an entirely different workflow.
That's why Paintbooth.com offers the Mobile Tech Work Station—to provide customers with a professional portable option when a permanent paint booth isn't practical.
Take the finishing environment to the job—not the job to the finishing environment.
What’s Included with Every Mobile Tech Workstation
The multi-stage filtration system helps capture paint overspray, airborne particulate, VOCs, and odors, providing contaminant control for the process.
- UL Listed hazardous-location motor and fan assembly
- UL Listed hazardous-location electrical controls
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
- Heavy-duty, easy-roll casters for convenient positioning
- Adjustable filter racks for application-specific filtration configurations
Mobile Tech Work Station Features
Portable On-Site Filtration
The Model 4950MT features a 3/4 HP hazardous-location motor and fan assembly delivering approximately 2,400 CFM with the conventional filter configuration.
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
Available Models
Scroll horizontally to view all model columns.
| Model # | Motor HP | CFM | EZ Up Enclosure | EPA 6 H Compliant |
|---|---|---|---|---|
| 4950MT | ¾ HP | 2,400 | NO | NO |
| 4900MT | ¾ HP | 2,400 | YES | YES |
Model 4950MT Specifications

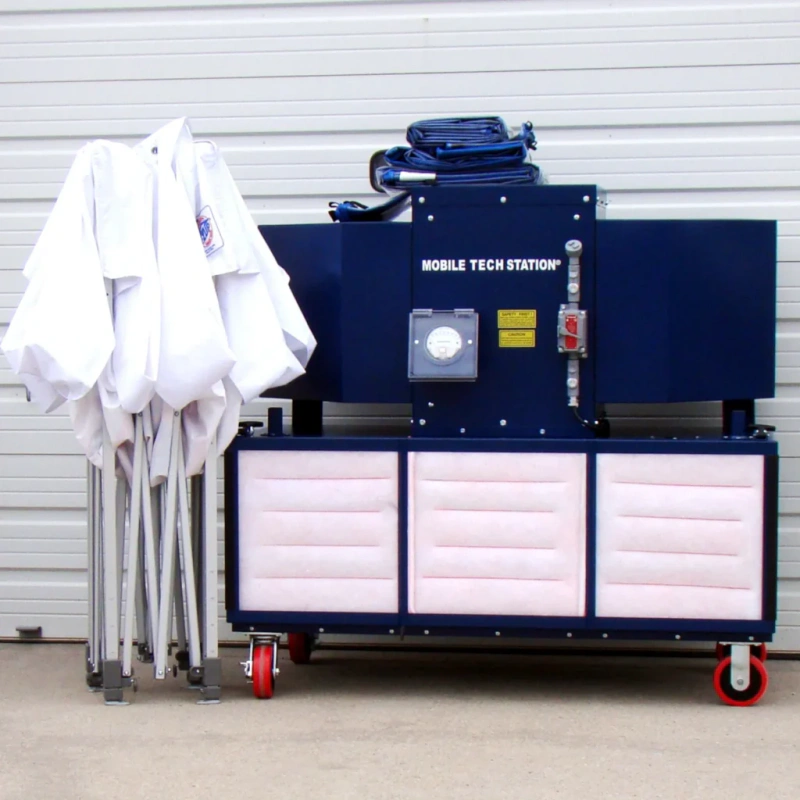

The Model 4950MT Mobile Tech Work Station® is the base open-format filtration unit in the Mobile Tech lineup, designed for technicians who need to bring portable air filtration directly to the job site. Its portable source-capture filtration can be positioned beside the repair area without requiring a fixed booth or enclosure.
The multi-stage filtration system is designed to capture overspray, airborne particulate, odors, and applicable gaseous contaminants generated by the process.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
| Specification | Model 4950MT |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| EZ Up Enclosure | NO |
| EPA 6 H Compliant | NO |
Model 4900MT Specifications

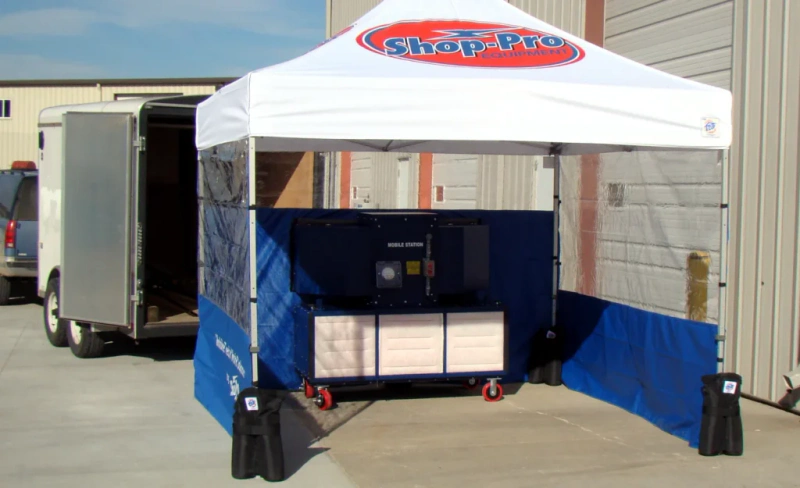

The Model 4900MT Mobile Tech Work Station® combines 2,400 CFM of portable multi-stage filtration with a custom 3-sided 10' × 10' EZ-Up enclosure, creating a portable finishing workstation designed to travel directly to the job site. The aircraft-grade aluminum enclosure frame, fire-resistant enclosure fabric, and EPA 6H Certificate of Compliance provide a controlled field-finishing configuration.
The multi-stage filtration system is designed to capture overspray, airborne particulate, odors, and applicable gaseous contaminants generated by the process.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Custom 3-sided 10' × 10' EZ-Up enclosure
- Aircraft-grade aluminum enclosure frame
- EPA 6H Certificate of Compliance
| Specification | Model 4900MT |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| EZ Up Enclosure | YES |
| EPA 6 H Compliant | YES |
| Enclosure Frame | Aircraft-Grade Aluminum |
| Power | 115V or 230V / Single Phase* |

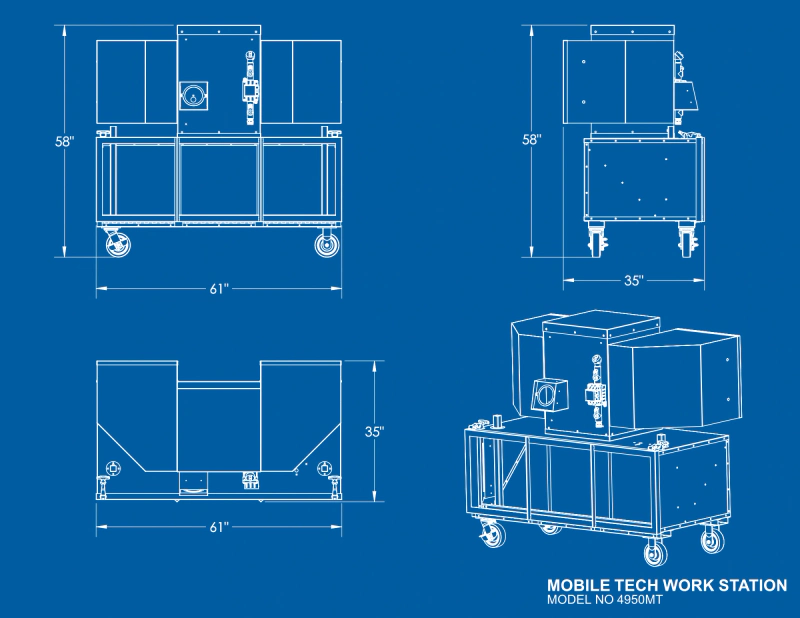

Example Drawing
Click the drawing to enlarge dimensions.
