Mobile Weld Station
Product Overview
Why Choose a Mobile Welding Station? Production layouts change. Large components can be difficult to move. And sometimes installing permanent welding booths or fixed fume-extraction systems isn't practical.

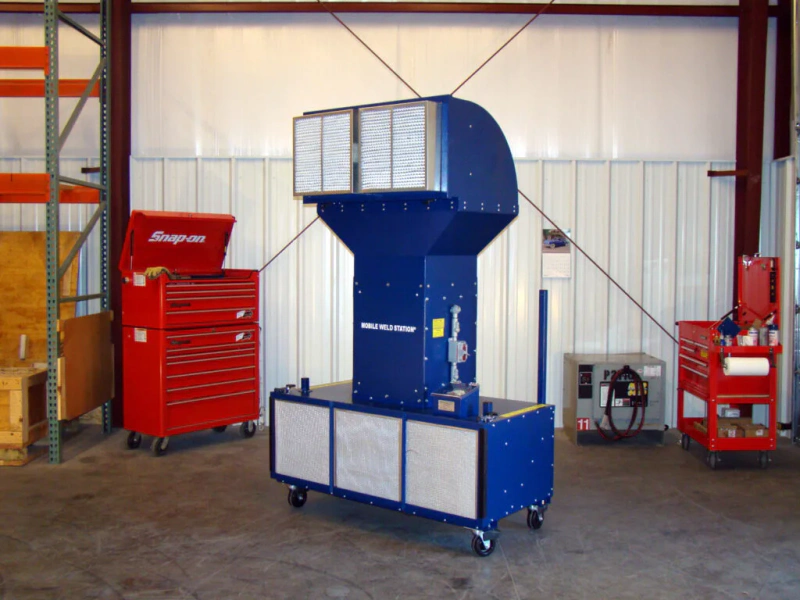

The Mobile Weld Station gives manufacturers, fabrication shops, maintenance departments, and other industrial facilities the flexibility to create a dedicated welding area where it's needed and reposition it as production requirements change.
Bring the welding booth to the work—not the work to the welding booth.
What’s Included with Every Mobile Weld Station

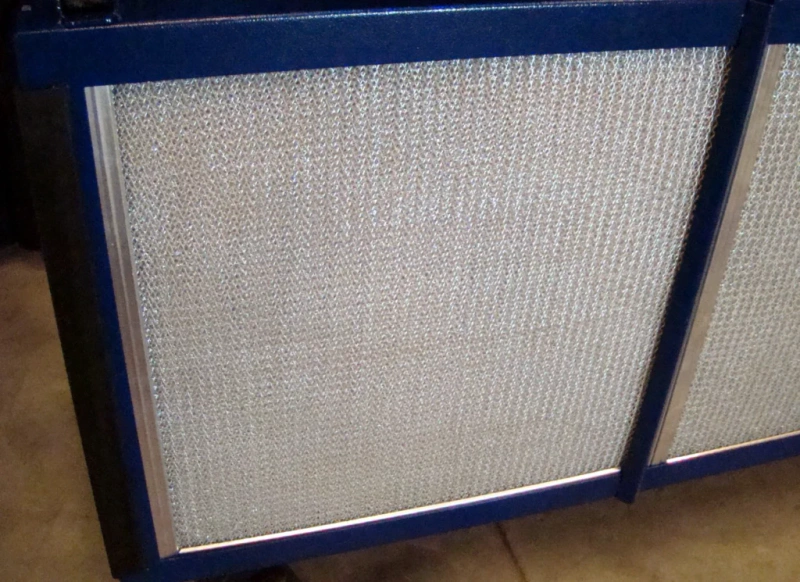

Each stage of the filtration system performs a specific function. Aluminum mesh spark arrestors provide the first line of filtration, followed by progressive-density and high-efficiency filters for airborne particulate. The activated carbon and potassium permanganate filtration provides an additional stage for applicable gaseous contaminants and odors.
- UL Listed hazardous-location motor and fan assembly
- UL Listed hazardous-location electrical controls
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
- Heavy-duty, easy-roll casters for convenient positioning
- Adjustable filter racks designed to accommodate application-specific filtration
Mobile Weld Station Features
Hazardous-Location Motor & Fan Assembly
Mobile Weld Station models use a 3/4 HP motor for 2,900 CFM or a 1-1/2 HP motor for 3,900 CFM of portable welding fume extraction and filtration.
Available Models
Scroll horizontally to view all model columns.
| Model # | Motor HP | CFM | Weld Curtain Enclosure | Power |
|---|---|---|---|---|
| 4950W | ¾ HP | 2,900 | NO | 115V / Single Phase / 15-Amp Plug |
| 4900W | ¾ HP | 2,900 | YES | 115V / Single Phase / 15-Amp Plug |
| 5450W | 1 ½ HP | 3,900 | NO | 115V or 230V / Single Phase / 20-Amp Plug* |
| 5400W | 1 ½ HP | 3,900 | YES | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 4950W Specifications
The Model 4950W Mobile Weld Station provides a 3/4 HP, 2,900 CFM portable welding fume extraction and filtration platform without a weld curtain enclosure.
It is designed for applications where portable source capture is the primary requirement and a fully enclosed welding area is not necessary.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete welding filter set
- 8 — 20" × 20" aluminum mesh spark arrestors
- 2 — Progressive-density fiber filters
- 2 — High-efficiency extended-surface filters
- 2 — 100% fill granular activated carbon/potassium permanganate filters
- 3/4 HP, 2,900 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 4950W |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,900 |
| Weld Curtain Enclosure | NO |
| Power | 115V / Single Phase / 15-Amp Plug |
Model 4900W Specifications
The Model 4900W combines 2,900 CFM portable welding fume extraction with an attached weld curtain enclosure.
The enclosure uses 14 MIL UV-Protective Welding Curtain sides and a 20 MIL clear PVC top panel to help contain welding fumes and spark spatter.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete welding filter set
- 8 — 20" × 20" aluminum mesh spark arrestors
- 2 — Progressive-density fiber filters
- 2 — High-efficiency extended-surface filters
- 2 — 100% fill granular activated carbon/potassium permanganate filters
- 3/4 HP, 2,900 CFM hazardous-location motor and fan assembly — UL Listed
- 14 MIL UV-Protective Welding Curtain sides
- 20 MIL clear PVC top panel
| Specification | Model 4900W |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,900 |
| Weld Curtain Enclosure | YES |
| Power | 115V / Single Phase / 15-Amp Plug |
| Curtain Sides | 14 MIL UV-Protective Welding Curtain |
| Top Panel | 20 MIL Clear PVC |
Model 5450W Specifications
The Model 5450W provides the higher-volume 1-1/2 HP, 3,900 CFM portable welding fume extraction configuration without a weld curtain enclosure.
This open source-capture configuration can be positioned near large workpieces and repositioned as production requirements change.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete welding filter set
- 8 — 20" × 20" aluminum mesh spark arrestors
- 2 — Progressive-density fiber filters
- 2 — High-efficiency extended-surface filters
- 2 — 100% fill granular activated carbon/potassium permanganate filters
- 1-1/2 HP, 3,900 CFM hazardous-location motor and fan assembly — UL Listed
| Specification | Model 5450W |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,900 |
| Weld Curtain Enclosure | NO |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 5400W Specifications
The Model 5400W combines the 1-1/2 HP, 3,900 CFM welding filtration platform with an attached weld curtain enclosure.
The 14 MIL UV-Protective Welding Curtain sides and 20 MIL clear PVC top panel provide flexible containment around the welding operation.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete welding filter set
- 8 — 20" × 20" aluminum mesh spark arrestors
- 2 — Progressive-density fiber filters
- 2 — High-efficiency extended-surface filters
- 2 — 100% fill granular activated carbon/potassium permanganate filters
- 1-1/2 HP, 3,900 CFM hazardous-location motor and fan assembly — UL Listed
- 14 MIL UV-Protective Welding Curtain sides
- 20 MIL clear PVC top panel
| Specification | Model 5400W |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,900 |
| Weld Curtain Enclosure | YES |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
| Curtain Sides | 14 MIL UV-Protective Welding Curtain |
| Top Panel | 20 MIL Clear PVC |

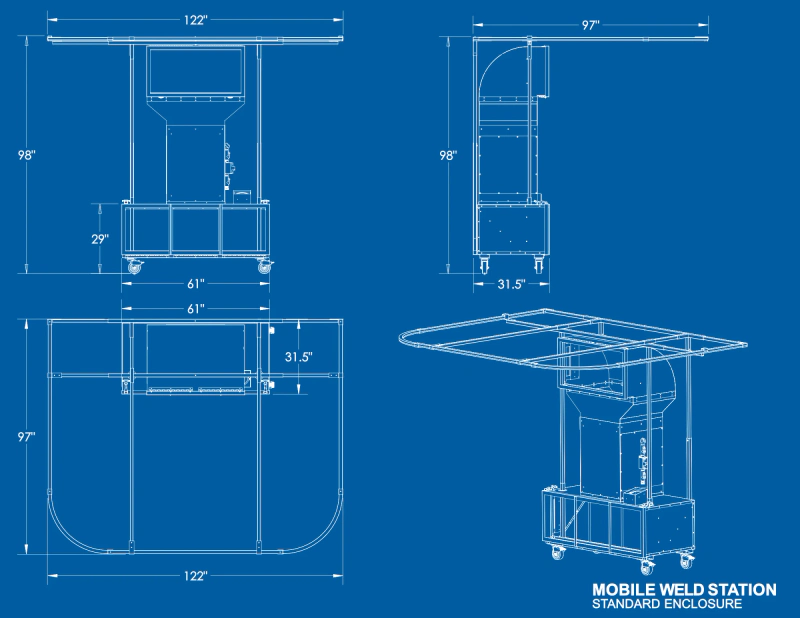

Example Drawing
Click the drawing to enlarge dimensions.
