Mobile Work Station® Portable Paint Booth
What Is the Mobile Work Station® Portable Paint Booth—and Why Do We Offer It?
The Mobile Work Station® combines a portable work enclosure and multi-stage air filtration system into one self-contained finishing solution. It is widely used for automotive collision repair, aerospace maintenance, manufacturing, industrial finishing, and other applications where flexibility is critical.
Unlike a traditional fixed paint booth, the Mobile Work Station® is designed to move to the work. Its patented, non-venting recirculation design eliminates the need for conventional exterior exhaust ductwork.
Self-contained, rugged, and mobile, the Mobile Work Station® has been used across thousands of installations for more than 30 years. At Paintbooth.com, we have offered Shop-Pro equipment for more than 15 years because it provides our customers with another option when a conventional fixed paint booth isn't the best fit for their operation.
What’s Included with Every Mobile Work Station
The multi-stage filtration system helps capture paint overspray, airborne particulate, VOCs, and odors, providing contaminant control for the process.
- UL Listed hazardous-location motor and fan assembly
- UL Listed hazardous-location electrical controls
- Heavy-duty 30-foot power cord
- Magnehelic® pressure gauge for monitoring filter condition and system performance
- Heavy-duty, easy-roll casters for convenient positioning
- Adjustable filter racks for application-specific filtration configurations
Mobile Work Station Features
Motor & Airflow Options
Choose from two motor configurations to match the airflow and performance requirements of your application.
49 Series — 3/4 HP | 2,400 CFM
54 Series — 1-1/2 HP | 3,500 CFM
- UL Listed hazardous-location motors
- Sealed, maintenance-free construction
- Direct-drive fan assemblies — no belts to replace or maintain
- Backward-curved aluminum fan wheels for non-sparking operation
Available Models
Scroll horizontally to view all model columns.
| Model # | Motor HP | CFM | Curtains | Fire Suppression | Air Monitor | EPA 6H Compliant | Power |
|---|---|---|---|---|---|---|---|
| 4900 | ¾ HP | 2,400 | YES | No* | NO | YES | 115V or 230V / Single Phase / 15-Amp Plug** |
| 4910 | ¾ HP | 2,400 | YES | Yes | NO | YES | 115V or 230V / Single Phase / 15-Amp Plug* |
| 4920 | ¾ HP | 2,400 | YES | Yes | YES | YES | 115V or 230V / Single Phase / 15-Amp Plug* |
| 5400 | 1 ½ HP | 3,500 | YES | No | NO | YES | 115V or 230V / Single Phase / 20-Amp Plug** |
| 5410 | 1 ½ HP | 3,500 | YES | Yes | NO | YES | 115V or 230V / Single Phase / 20-Amp Plug* |
| 5420 | 1 ½ HP | 3,500 | YES | Yes | YES | YES | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 4900 Specifications
The Model 4900 is the base enclosed configuration in the Mobile Work Station® 49 Series, combining a 3/4 HP, 2,400 CFM filtration system with an attached curtain enclosure to create a complete portable limited finishing workstation.
Designed for facilities that need portable overspray containment and source-capture filtration, the Model 4900 provides a flexible alternative to a permanently located finishing area.
With its attached curtain enclosure and standard paint filtration configuration, the Model 4900 is EPA 6H certified for applicable paint spray operations.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
- EPA 6H Certificate of Compliance
| Specification | Model 4900 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | YES |
| Fire Suppression | No* |
| Air Monitor | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 15-Amp Plug** |
Model 4910 Specifications
The Model 4910 combines the proven 3/4 HP, 2,400 CFM Mobile Work Station® filtration system with an attached curtain enclosure and integrated fire suppression system, creating a complete EPA 6H-certified portable limited finishing workstation.
The Model 4910 includes an on-board dry chemical fire suppression system as part of its standard configuration.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
- On-board dry chemical fire suppression system
- EPA 6H Certificate of Compliance
| Specification | Model 4910 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | YES |
| Fire Suppression | Yes |
| Air Monitor | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 15-Amp Plug* |
Model 4920 Specifications
The Model 4920 is the fully equipped 3/4 HP Mobile Work Station®, combining portable filtration and containment with integrated fire suppression and active air monitoring.
The Air Monitor, Shut-Off & Alarm System provides continuous monitoring of exhaust airflow during operation and automatically shuts off the air supply to the spraying operation when the manufacturer-established alarm threshold is exceeded.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 3/4 HP, 2,400 CFM hazardous-location motor and fan assembly — UL Listed
- On-board dry chemical fire suppression system
- Integrated Air Monitor, Shut-Off & Alarm System
- EPA 6H Certificate of Compliance
| Specification | Model 4920 |
|---|---|
| Motor HP | ¾ HP |
| CFM | 2,400 |
| Curtains | YES |
| Fire Suppression | Yes |
| Air Monitor | YES |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 15-Amp Plug* |
Model 5400 Specifications
The Model 5400 is the base enclosed configuration in the higher-airflow Mobile Work Station® 54 Series, combining a 1-1/2 HP, 3,500 CFM filtration system with an attached curtain enclosure.
For facilities that need portable containment and higher-volume 3,500 CFM multi-stage filtration without integrated fire suppression or active air monitoring, the Model 5400 provides the essential 54 Series capabilities.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
- EPA 6H Certificate of Compliance
| Specification | Model 5400 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | YES |
| Fire Suppression | No |
| Air Monitor | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 20-Amp Plug** |
Model 5410 Specifications
The Model 5410 combines the higher-airflow 1-1/2 HP, 3,500 CFM Mobile Work Station® platform with an attached curtain enclosure and integrated fire suppression system.
This 54 Series configuration provides portable filtration, containment, and automatic fire detection and extinguishing protection for critical areas of the filtration system.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
- On-board dry chemical fire suppression system
- EPA 6H Certificate of Compliance
| Specification | Model 5410 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | YES |
| Fire Suppression | Yes |
| Air Monitor | NO |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |
Model 5420 Specifications
The Model 5420 is the fully equipped 54 Series Mobile Work Station®, combining 1-1/2 HP, 3,500 CFM filtration, a curtain enclosure, integrated fire suppression, and the Air Monitor, Shut-Off & Alarm System.
For operations requiring portable containment, multi-stage filtration, fire suppression, and active air-quality monitoring, the Model 5420 provides the most comprehensive Mobile Work Station® configuration.
- Hazardous-location electrical controls — UL Listed
- Heavy-duty 30-foot power cord
- Magnehelic® gauge for monitoring filter condition
- Heavy-duty easy-roll casters
- Adjustable filter racks
- Complete multi-stage filter set
- 3 — 20" × 20" 100% Activated Granular Charcoal Filters
- 2 — 20" × 20" Odor Ban Pleated Carbon Filters
- 2 — 20" × 20" High-Efficiency Paint Filters
- 1 — 20" × 60" 3-Ply Link Panel Filter
- 12 — 20" × 72" Filter Saver Filter Skins
- Attached NFPA 701-compliant curtain enclosure system
- 1-1/2 HP, 3,500 CFM hazardous-location motor and fan assembly — UL Listed
- On-board dry chemical fire suppression system
- Integrated Air Monitor, Shut-Off & Alarm System
- EPA 6H Certificate of Compliance
| Specification | Model 5420 |
|---|---|
| Motor HP | 1 ½ HP |
| CFM | 3,500 |
| Curtains | YES |
| Fire Suppression | Yes |
| Air Monitor | YES |
| EPA 6H Compliant | YES |
| Power | 115V or 230V / Single Phase / 20-Amp Plug* |

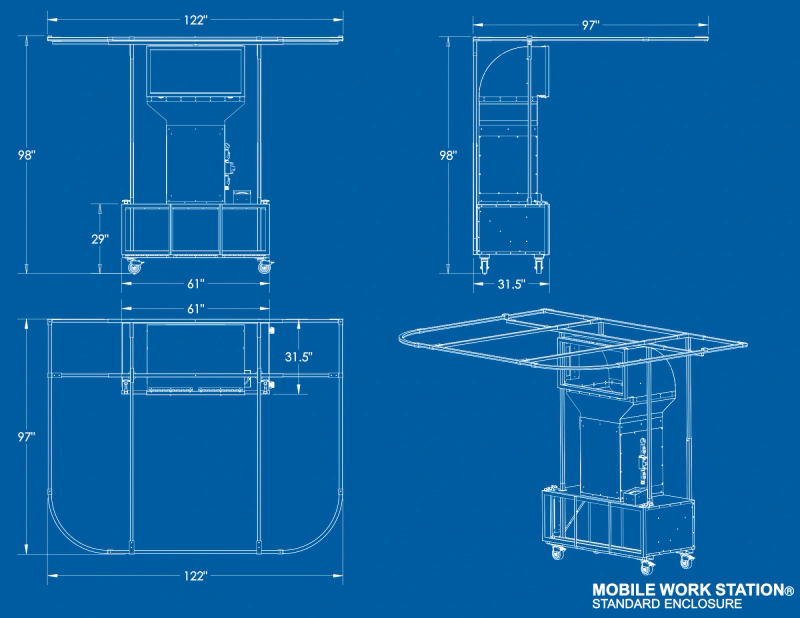

Example Drawing
Click the drawing to enlarge dimensions.
