Utility Planning for Paint Booth Installation: Confirming Power, Air, and Mechanical Services

Paint booth installation delays can begin before the crates are unpacked. A general contractor schedules a mechanical crew, only to discover that the building’s main electrical distribution panel has no physical space for a dedicated breaker, the utility gas meter delivers insufficient supply pressure, or the existing air compressor cannot handle continuous finishing tools alongside booth damper controls.

Every paint booth functions as an engineered mechanical system tied directly to your facility's infrastructure. To avoid change orders and idle installation crews, you must coordinate incoming services using the selected manufacturer’s equipment submittals rather than general shop rules of thumb.

Never commission facility electrical, gas, or structural modifications based on preliminary catalog dimensions or standard showroom models. The exact submittal package for your specific order dictates your site requirements.

Before calling mechanical trades, collect the following engineering records from your equipment submittal package:

• Electrical schematics and panel layout drawings: These detail the main control panel configuration, incoming voltage, control circuit transformer ratings, and field wiring points for interlocks.
• Motor nameplate cut sheets: These identify motor ratings; obtain equipment circuit and protection requirements from the applicable electrical documentation.
• Burner data plates and gas train schematics: If your booth includes heated cycles, these specify required firing rates in BTU/hr and the minimum/maximum allowable inlet gas pressure.
• General arrangement (mechanical layout) drawings: These show precise dimensions for duct penetrations, service clearance zones around doors and panels, and anchor-bolt footprints.
• Process tool specifications: Tally the compressed-air demands (CFM and PSI) of the spray guns, air-fed respirators, and pneumatic lifts you intend to operate inside the cabin.

Manufacturer installation manuals emphasize that site preparation requires a level concrete floor, adequate working clearances on all sides for maintenance access, an unobstructed overhead exhaust path, and incoming power verified directly against the supplied equipment drawings. Site design drawings identify the actual spatial arrangement; qualified trade personnel must use those drawings to determine your equipment-specific utility requirements.

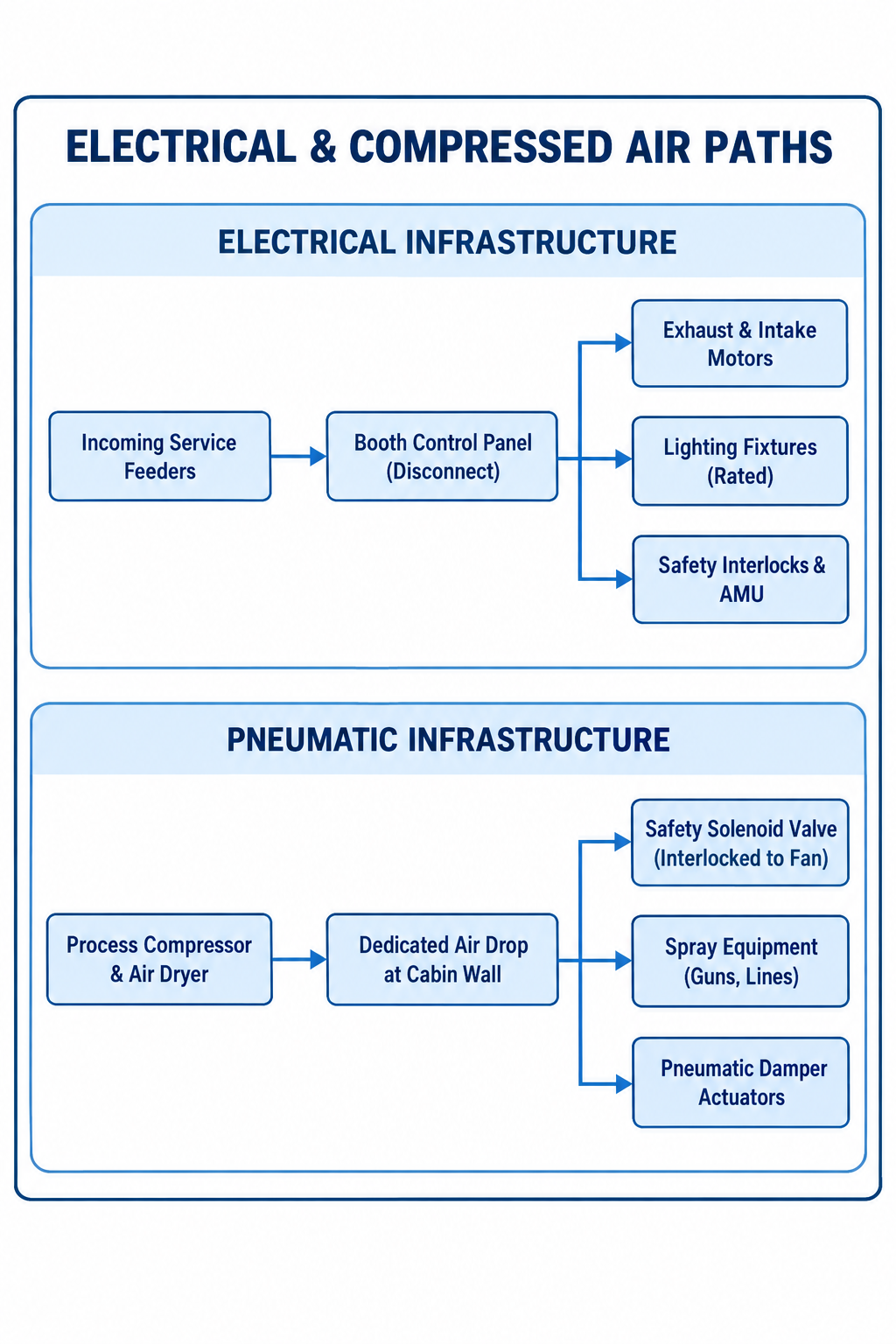

Electrical supply and any required process compressed air are separate planning items, but they serve distinct functions that must be engineered separately.

Electrical Supply and Controls

A paint booth's electrical load comprises continuous motor loads, specialized lighting, and sensitive low-voltage control circuits.

Your submittal documents will define the required voltage, phase, and total connected load. Qualified electrical personnel must verify that your facility’s transformer and distribution panel have sufficient ampacity to support these loads without causing voltage drop during motor startup.

Key electrical coordination checkpoints include:

• Line Voltage and Phase: Commercial booths are engineered for specific three-phase configurations (such as 208V, 230V, or 460V) or single-phase service for smaller utility units. A voltage mismatch needs a qualified review of the equipment configuration and facility supply before ordering.
• Control Panel Disconnect: Qualified electrical personnel must establish disconnect and maintenance-isolation arrangements under the equipment instructions and applicable codes.
• Hazardous Location Wiring: Have qualified electrical personnel identify classified zones and select wiring methods and equipment approved for the actual locations. Classification and protection methods depend on the process and applicable code.
• Safety Interlocks: The electrical system must physically prevent spraying unless mechanical ventilation is operating. The selected controls and interlocks must be designed and verified for the equipment and applicable requirements; a running fan alone does not prove adequate airflow.

Spray Equipment and Pneumatic Services

A common facility planning error is confusing the booth’s ventilation air with process compressed air.

Booth ventilation involves thousands of cubic feet per minute (CFM) of ambient air moved through ductwork at very low static pressures to capture overspray. Compressed air involves high-pressure, clean, dry air delivered to the cabin to atomize coatings and operate pneumatic mechanisms.

Process pneumatic infrastructure must be planned around the tools inside the enclosure:

• Atomization and Application: High-Volume, Low-Pressure (HVLP) and compliant spray guns consume high volumes of air at the gun handle. Your compressed air system must deliver this demand continuously without pressure drops that cause finish defects.
• Air Filtration and Moisture Separation: Spray equipment requires dry, oil-free air. Select drying and filtration around the spray equipment’s air-quality and flow requirements.
• Cabin Controls and Actuators: Many booths use pneumatic cylinders to operate intake dampers, exhaust bypasses, or automatic roll-up doors. These require clean, regulated plant air delivered to a manifold at the booth profile.
• Breathing Air Systems: If operators use supplied-air respirators, OSHA standards govern grade-D breathing air systems. Have a qualified respiratory-protection specialist establish compliant breathing-air supply, monitoring, and connection arrangements; tool air is not automatically suitable breathing air.

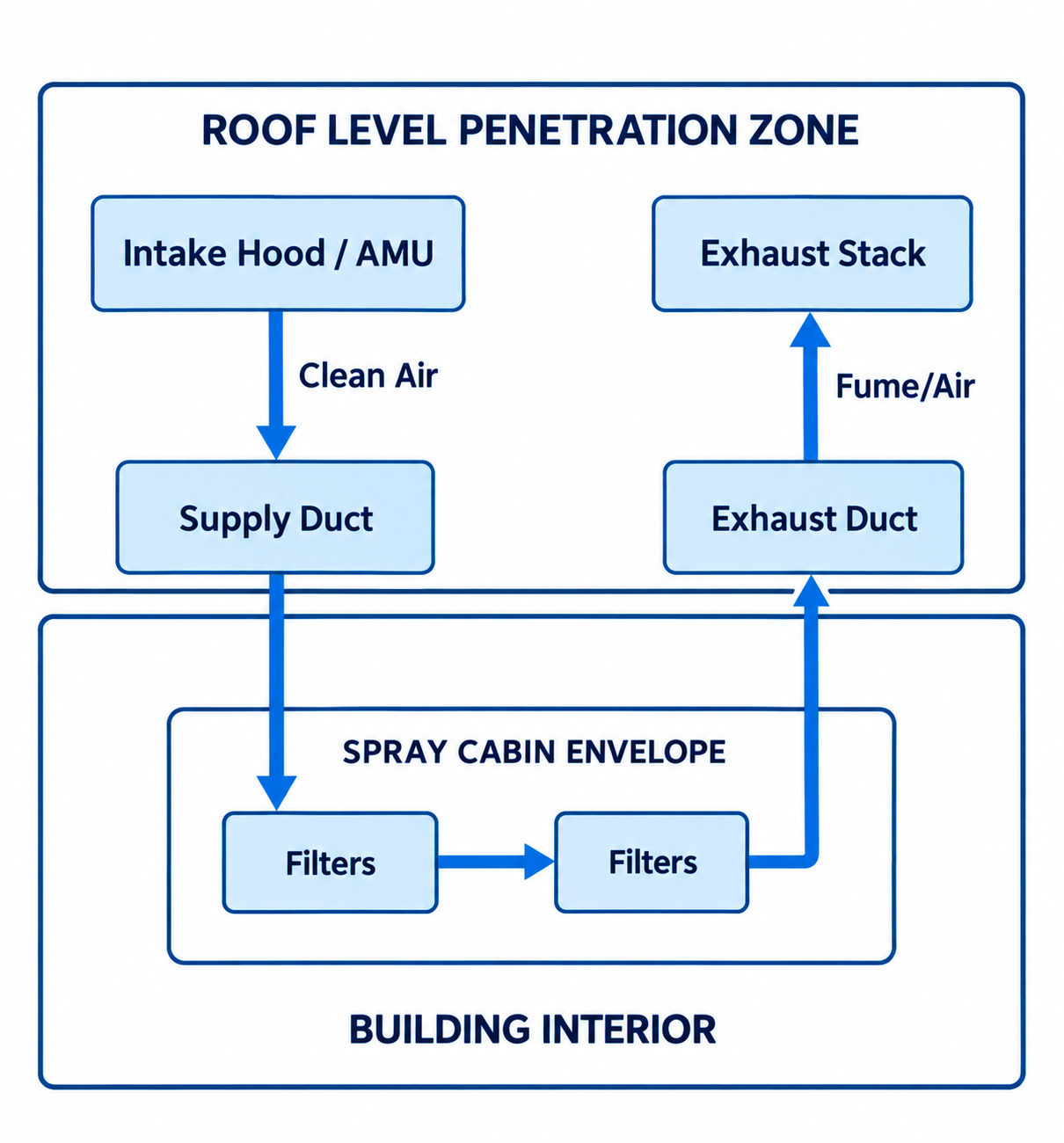

A paint booth cannot move air through its cabin if the building envelope restricts airflow. Mechanical ventilation, building air balance, and duct penetrations must be evaluated as an integrated system.

OSHA safety standards for spray finishing mandate mechanical ventilation that reduces flammable vapor concentrations below hazardous levels, pairs with accessible overspray filtration, and supplies clean replacement air. Meeting these conditions requires careful mechanical planning across several fronts:

Structural Penetrations and Stack Clearances

Exhaust ductwork must exit the building through a roof or exterior wall penetration. Structural engineers or qualified mechanical contractors must verify that the building's roof trusses can carry the weight of the ductwork, exhaust fan assemblies, and guy-wire rigging without exceeding dead-load limits. Confirm stack termination and clearances against applicable requirements and the site design.

Clean Air Sourcing and Intake Separation

Booths equipped with intake fans draw high volumes of outside air into the facility. Intake hoods or air make-up inlets must be located far from the booth’s own exhaust stack, sewer vents, boiler chimneys, and delivery truck docks. Failure to separate intake and exhaust runs risks drawing atomized overspray, carbon monoxide, or outdoor particulate matter straight back through ceiling diffusion media.

Building Static Pressure and Make-Up Air

When an exhaust fan moves 10,000 CFM out of a closed shop, the building pulls an equal amount of air back in through every available gap. Unaddressed negative pressure can affect combustion appliances, door operation, and contaminant entry; have the building air balance assessed.

Understanding how an air make-up system works is essential for balancing this airflow. Heated air make-up units (AMUs) introduce conditioned, tempered air directly to the booth intake to replace exhausted air, as part of a coordinated booth and building air-balance design.

Do not assume your booth needs every utility connection on day one—or that a standard connection will suffice. Heating fuels, fire lines, and process plumbing depend strictly on booth configuration and local code requirements.

Heating Fuels (Natural Gas or Propane)

Where a gas-fired air make-up unit is selected, confirm whether its specified fuel is natural gas or liquefied petroleum (LP) gas. Other heating designs have different supply requirements.

Gas utility requirements cannot be estimated by pipe diameter alone. Your submittal drawing specifies the total BTU/hr input and the required static and dynamic gas supply pressures measured in inches of water column (in. W.C.) or pounds per square inch (PSI).

A utility provider may need to upgrade the facility gas meter or run larger distribution pipe across the building ceiling to maintain dynamic pressure when the burner fires at full input.

Fire Protection and Suppression Lines

OSHA and NFPA standards require fire protection systems for combustible and flammable spray operations.

If your facility utilizes an automatic wet pipe sprinkler system, the fire-protection design determines sprinkler locations and supply-pipe routes. This requires verification of municipal water flow rates (GPM) and static head pressure.

Where chemical dry suppression systems are specified instead, reserve the cylinder, actuation, and piping space specified by the approved fire-protection design.

Floor Interfaces and Process Water

Dry-filter spray booths do not require dedicated supply water or floor drains for regular operations.

Process water may be required if you operate a water-wash (curtain) booth, use an automatic gun washer adjacent to the mix room, or run a high-pressure component wash station. In those cases, you must account for paint separation systems and comply with local municipal wastewater discharge rules.

Substrate conditions must also be confirmed: under OSHA (b)(3), noncombustible coverings are required where combustible floors exist in spraying and operator zones, though this does not mandate seamless coatings in every environment.

Reviewing the physical interface of paint booth floors and walls before delivery helps identify slab condition, anchoring, and surface concerns before construction.

Network and Telemetry Connections

Modern production booths with digital control panels often incorporate Ethernet ports or wireless modems.

Depending on the selected controls, these connections may support diagnostics or production records. Verify available functions and access requirements rather than assuming they are included or required for warranty coverage. Coordinate any required connection with your IT staff using the selected control-system documentation.

Utility coordination failures usually stem from ambiguous contracts where tasks fall through the cracks between the equipment supplier, general contractor, and mechanical trades.

Confirm the equipment supplier’s included documentation and components, and separately assign building-side modifications—including electrical supplies, utility connections, roof openings, and fire protection—to the appropriate qualified project trades.

Use this utility coordination schedule to lock down trade scopes and verify facility readiness before delivery:

Manage Trade Dependencies Sequentially

Trades must work in a logical sequence to avoid rework and schedule conflicts:

1. Structural and Slab Prep: Confirm required slab and roof-interface work against approved drawings before delivery.
2. Mechanical Assembly: Assemble the booth cabin, hang exhaust ductwork, and set make-up air equipment on structural curbs.
3. Piping and Conduit Rough-In: Run gas supply lines, compressed-air drops, and main electrical conduit to the control panel boundaries.
4. Final Terminations: Make final electrical connections, install interlocked solenoid valves, and wire sensor controls.
5. Testing and Commissioning: Have qualified personnel complete the equipment-specific testing and commissioning requirements and document approvals.

Reviewing these service interlocks alongside other factors to consider when buying a paint booth helps identify scope gaps before installation.

Planning for incoming power, fuel, and air paths before your booth arrives on site protects your timeline and keeps your installation budget intact.

Gather your building layout, available electrical service data, and production requirements, then request a project quote with your equipment requirements and site-coordination questions.
